Re: Finally Ready For Dream Build ... Need Engine Suggestions
Ok, so I ran into this problem,
http://www.blasterforum.com/engine-13/pro-design-manifold-help-plz-39955/
I ended up finding out the manifolds were made for VF2's so did not matter that I already had modded. So this was what I ended up with after porting inner cage and manifold.
So here is the inner VF3 cage after mod and port

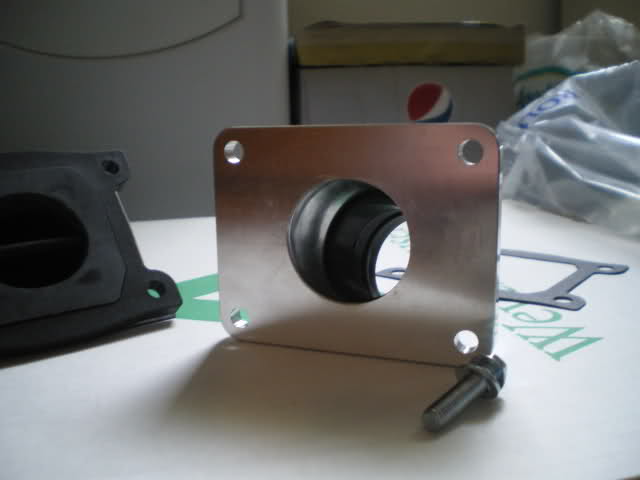

Billet Pro-design manifold ported to match inner VF3 cage
Pic of both ready to mount

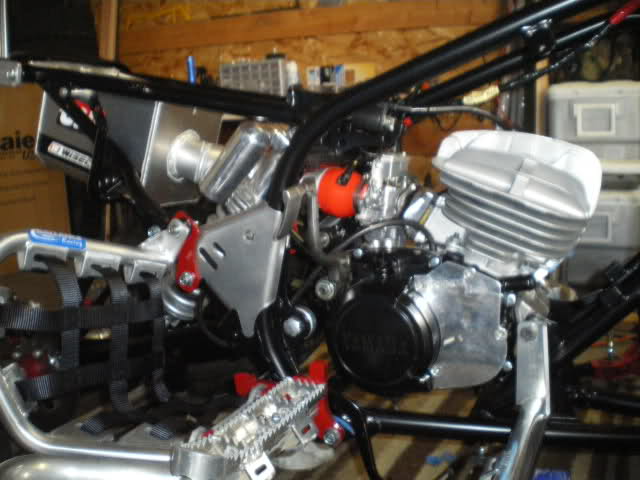

Mounted on motor in frame with carb and some new stainless
Another note, someone offered to buy my Trenga Cover....Sorry but like the frame guards they have not made these solid billet oil-pump covers for years and regardless if I'm gonna brush it can't let that one go...ever...and I might not even brush it now that it matches manifold on engine
So I also got my correct airboot for my CFM, I had built mounts that mounted it over frame rails similar to PB but am thinking of scrapping them for a much simpler way of mounting. In re-thinking I realized that instead of using the wedge mount between frame I could use a skinnier spacer and drill one hole through the rear gusset on that side and actually mount rather than wedge. The holes are still off so I'll have to re-drill but will make mounting similar to the way intended but better as it will actually bolt on wedge side while using intended mount from oil tank. depending on how well this works I might have to still use smaller frame rail mounts on front but am going to try this first and will update pics as I do it today
hehe.....just noticed I broke 500 posts this morn......no longer a newb...
Ok, so I ran into this problem,
http://www.blasterforum.com/engine-13/pro-design-manifold-help-plz-39955/
I ended up finding out the manifolds were made for VF2's so did not matter that I already had modded. So this was what I ended up with after porting inner cage and manifold.
So here is the inner VF3 cage after mod and port
Billet Pro-design manifold ported to match inner VF3 cage
Pic of both ready to mount
Mounted on motor in frame with carb and some new stainless
Another note, someone offered to buy my Trenga Cover....Sorry but like the frame guards they have not made these solid billet oil-pump covers for years and regardless if I'm gonna brush it can't let that one go...ever...and I might not even brush it now that it matches manifold on engine
So I also got my correct airboot for my CFM, I had built mounts that mounted it over frame rails similar to PB but am thinking of scrapping them for a much simpler way of mounting. In re-thinking I realized that instead of using the wedge mount between frame I could use a skinnier spacer and drill one hole through the rear gusset on that side and actually mount rather than wedge. The holes are still off so I'll have to re-drill but will make mounting similar to the way intended but better as it will actually bolt on wedge side while using intended mount from oil tank. depending on how well this works I might have to still use smaller frame rail mounts on front but am going to try this first and will update pics as I do it today
hehe.....just noticed I broke 500 posts this morn......no longer a newb...
Re: Finally Ready For Dream Build ... Need Engine Suggestions
Some threads I had opened regarding build -
Pro-Design Manifolds
http://www.blasterforum.com/engine-13/pro-design-manifold-help-plz-39955/#post501170
Intake Pipe Reducers
http://www.blasterforum.com/engine-13/intake-pipe-reducers-39871/
Cometic EST Gaskets (Triple Head) Vs. Stock
http://www.blasterforum.com/engine-13/cometic-triple-head-gaskets-vs-normal-39368/
Write-Ups Done During Build –
Gusset Placement Diagram
http://www.blasterforum.com/do-yourself-20/gusset-placement-diagram-39688/
Clutch Disc Placement Write-up
http://www.blasterforum.com/engine-13/clutch-plate-placement-write-up-39725/
If anyone is interested in buying the basket from this write-up it was not used and I have it for sale (almost new condition)
GPS Tracking with Smart Phone –
http://www.blasterforum.com/miscellaneous-16/gps-tracking-mph-etc-android-38494/
Does not have anything to do with build but good info.
Some threads I had opened regarding build -
Pro-Design Manifolds
http://www.blasterforum.com/engine-13/pro-design-manifold-help-plz-39955/#post501170
Intake Pipe Reducers
http://www.blasterforum.com/engine-13/intake-pipe-reducers-39871/
Cometic EST Gaskets (Triple Head) Vs. Stock
http://www.blasterforum.com/engine-13/cometic-triple-head-gaskets-vs-normal-39368/
Write-Ups Done During Build –
Gusset Placement Diagram
http://www.blasterforum.com/do-yourself-20/gusset-placement-diagram-39688/
Clutch Disc Placement Write-up
http://www.blasterforum.com/engine-13/clutch-plate-placement-write-up-39725/
If anyone is interested in buying the basket from this write-up it was not used and I have it for sale (almost new condition)
GPS Tracking with Smart Phone –
http://www.blasterforum.com/miscellaneous-16/gps-tracking-mph-etc-android-38494/
Does not have anything to do with build but good info.
Re: Finally Ready For Dream Build ... Need Engine Suggestions
Kinda went backwards on this one, but have not drilled new mounts yet though they are marked, but keeping with the red/black theme I found sticker sets to match on both sides as the easiest way to cover stock CFM holes. On bottom I used super thick vinyl number sheet and cut a strip then sticker to make sure it was blocked I also put a small piece over hole on inside as you can see in second pic
First Pic: Intake reducer suggested by AWK, best 15 bux I've spent on my blaster, it is an immense improvement in taper, quality and seal when compared to the CFM plumbing reducer.
Second Pic: CFM with new reducer and sticker scheme before mounting
Kinda went backwards on this one, but have not drilled new mounts yet though they are marked, but keeping with the red/black theme I found sticker sets to match on both sides as the easiest way to cover stock CFM holes. On bottom I used super thick vinyl number sheet and cut a strip then sticker to make sure it was blocked I also put a small piece over hole on inside as you can see in second pic
First Pic: Intake reducer suggested by AWK, best 15 bux I've spent on my blaster, it is an immense improvement in taper, quality and seal when compared to the CFM plumbing reducer.
Second Pic: CFM with new reducer and sticker scheme before mounting
Re: Finally Ready For Dream Build ... Need Engine Suggestions
Well................here is some real sh*t. So you remember the swingarm YB gave Ken. It turns out my swingarm shop +3 HD swingarm has the same problem, sits to the side. Since I had not had a chain on I had my axle loosely on it. When going to bolt and adjust everything what was the result....crooked axle, my chain does not match up and after some measuring figured out the whole thing sits an inch to the right if looking from the back. How this was not noticed when I hooked up my shock I do not know, but long story short I'm fukin raging pissed and waiting to hear from these douches in my e-mail. If ever I wish I had some extra cash to just drop on a new one I would, but for now I guess I'll be waiting for them to replace this one.
Well................here is some real sh*t. So you remember the swingarm YB gave Ken. It turns out my swingarm shop +3 HD swingarm has the same problem, sits to the side. Since I had not had a chain on I had my axle loosely on it. When going to bolt and adjust everything what was the result....crooked axle, my chain does not match up and after some measuring figured out the whole thing sits an inch to the right if looking from the back. How this was not noticed when I hooked up my shock I do not know, but long story short I'm fukin raging pissed and waiting to hear from these douches in my e-mail. If ever I wish I had some extra cash to just drop on a new one I would, but for now I guess I'll be waiting for them to replace this one.
Re: Finally Ready For Dream Build ... Need Engine Suggestions
So as explained the holes were off on my CFM as usual, I already plugged and covered them.
Then drilled bolt hole in rear exhaust side gasket.
Cut aluminium spacer (the CFM one was to thick to squeeze between frame rail and bolt through gusset)

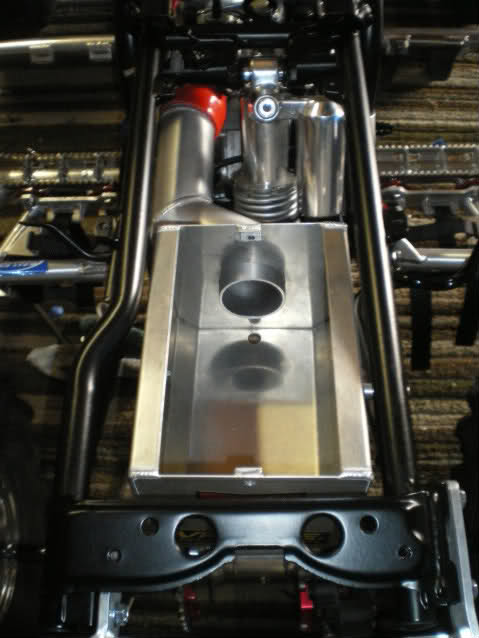

Drilled matching mount hole in air-box then mounted this side
