Got my taillight hooked up, zip-tied some loose wires, bled my front brakes, and a bunch of little things. Still need to remove a link from my chain.

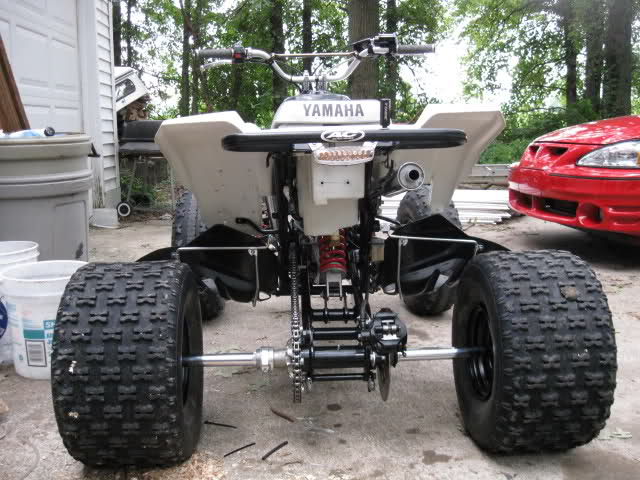

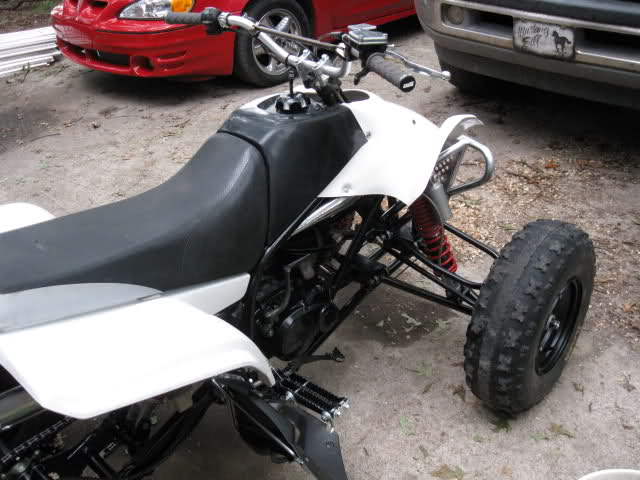

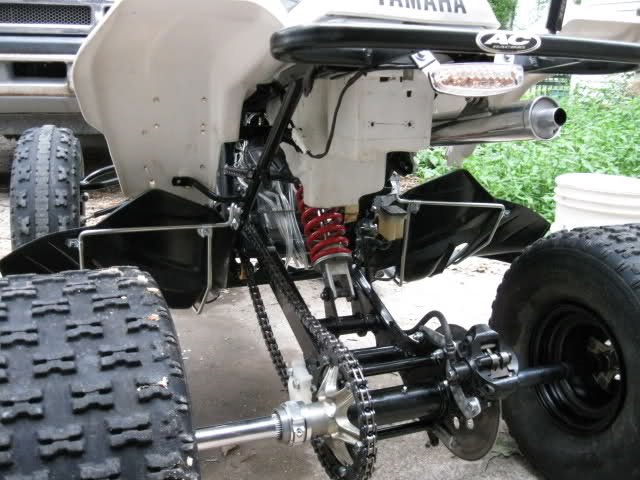

More pics!

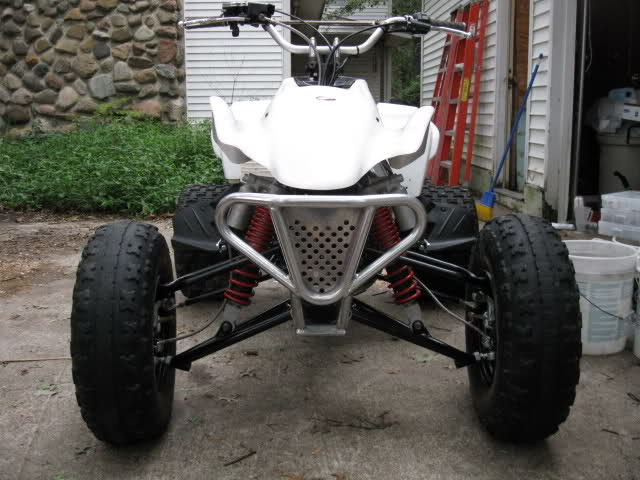

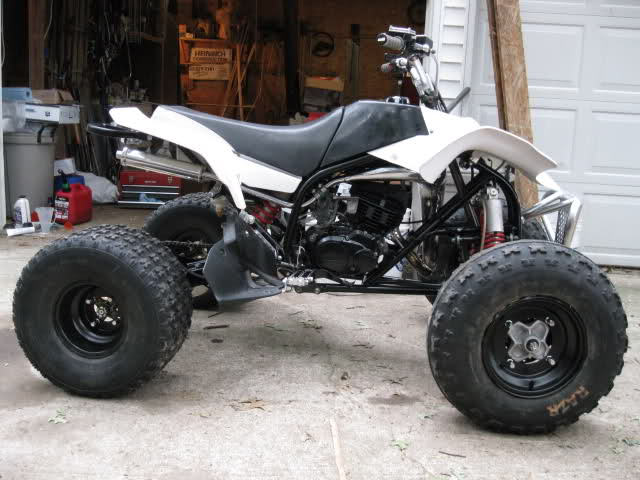

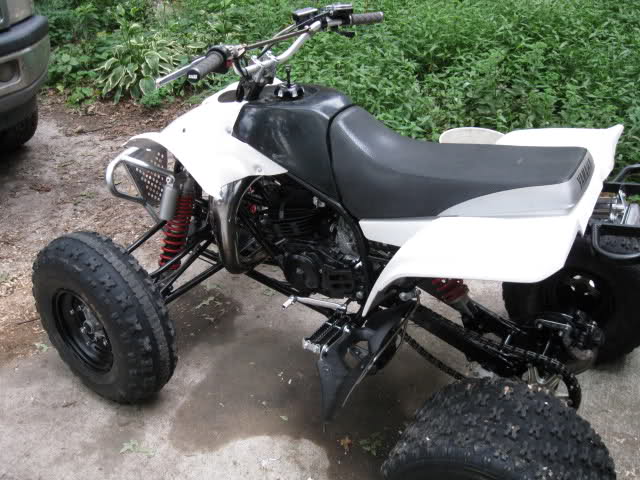

More pics!
cole454's Rebuild
- Thread starter cole454
- Start date
then what the fug are you doin here!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! get out and ride that biotch
Its storming here right now. Rain I can deal with, but I'm not chancing lightning.
Oh and uhhhh....I think you forgot one thing in your rebuild. Front tires!
Fronts and rears. Gonna get some XRex tires all around.
X Rex ATV Tires
The tires he has arent bad id rock em. and looks great man need to post up before and after pics.
He forgot these too!
You'll notice that back tube is MUCH closer to the ball joint ring mount. THese should clear 6" backspaced wheels if you so chose to run them. I think all upper a-arms will be designed just like this from now on. The original design had the back tube and front tube parallel for aesthetics but they didn't work well that way for things like turning the wheels all the way....
I'm really getting the hang of this Tig welder. Single pass, moderate filler rod:
You'll notice that back tube is MUCH closer to the ball joint ring mount. THese should clear 6" backspaced wheels if you so chose to run them. I think all upper a-arms will be designed just like this from now on. The original design had the back tube and front tube parallel for aesthetics but they didn't work well that way for things like turning the wheels all the way....
I'm really getting the hang of this Tig welder. Single pass, moderate filler rod:
Checked compression today 160psi. And I've just done the heat cycles. No real break in yet.
And those new arms look awesome.
Also had an issue with my Durablue axel. I can't get the nut on enough to get the cotter pin in. Its like either the spacers or the hub is too wide. I tried the raptor hubs I have and its the same. Anybody else have this issue?
And those new arms look awesome.
Also had an issue with my Durablue axel. I can't get the nut on enough to get the cotter pin in. Its like either the spacers or the hub is too wide. I tried the raptor hubs I have and its the same. Anybody else have this issue?
