My "old build thread was so old I made a new one" build

[Brute71]

My last one I got tired of bumping saying there would be progress and wound up not doing what I said, so I'm starting a new one since I'm actually starting to bring more parts in LOL

What I'm starting with right now:

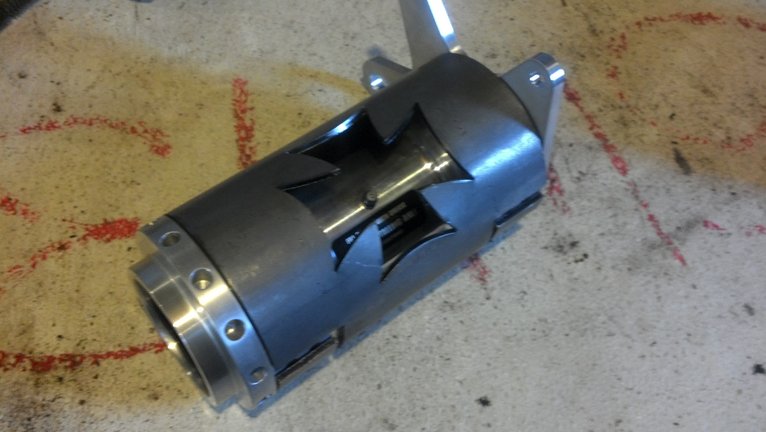

Have a round house bearing carrier sitting here that I need to build a swing arm to put it in, going to run YFZ450 shocks all the way around, banshee front knuckles, etc. First order will be the arms I have sicvic whipping up for me and I will get some more pics up when those suckers get in More details to be revealed when progress is had!

In case anyone is wondering those are my sub boxes for the 8" RF subs I just put in my truck (might sneak a few pics of that thing in here as I work on that as well )



[blasterdemon7]

It's looking bad ass so far.



[Brute71]

has a long road ahead of it right now, but body wise I basically finished right after I blew out my knee lol



[blasty 95]

Looks good man.........like the hood an bumper awhole lot



[Brute71]

Just to keep things interesting I will be building another project frame right along side this blaster, some of you already know what I was doing with a second frame from my old thread, but for the rest of you you will just have to wait for pics and details Each build will make progress when theres down time on the primary bike in this thread.



[Brute71]

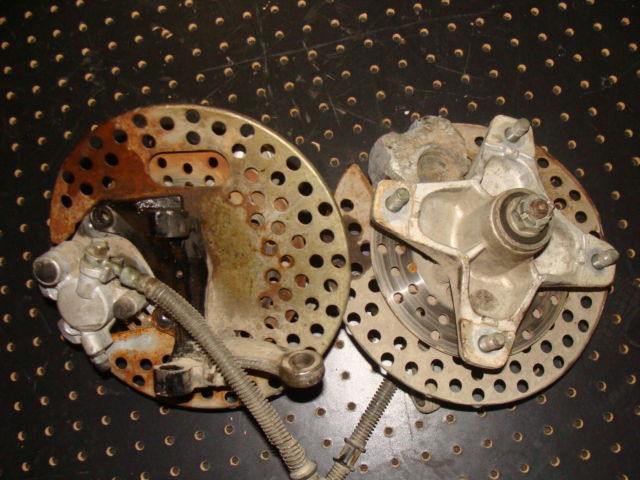

Got some stuff on ebay! Got a set of banshee spindles, hubs, rotors and calipers all in one auction for $74 to my door 8)



[Brute71]

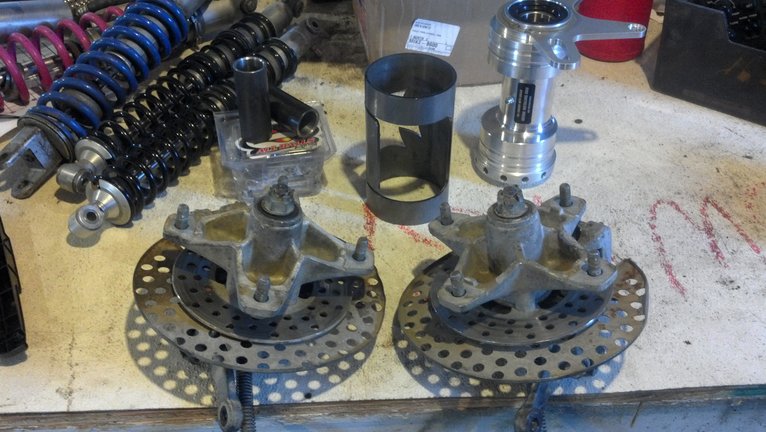

Spindles are in! Gonna tear them down and clean them up, then its on to the swinger.



[Brute71]

got some bits for the swing arm in!

Now I just need some 4130 rectangle tubing and I can start fabbing



[Brute71]

Holy crap an update!!!!

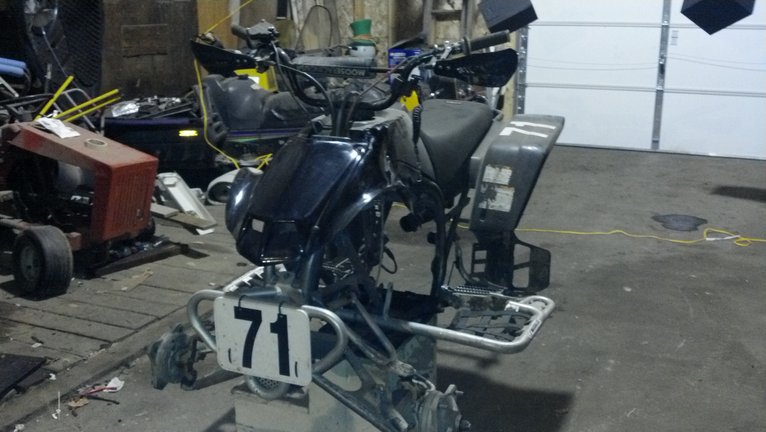

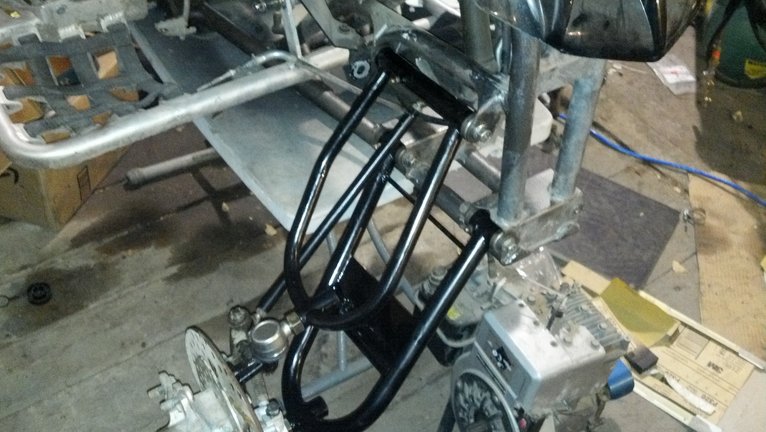

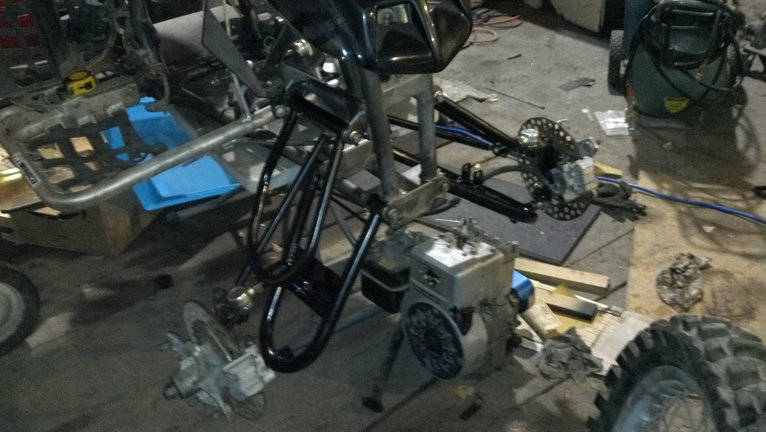

Got my arms in from sicivicdude and have one side mocked up, too tired to do the other side today XD

Gonna try and move this thing into the aisle of my shop, will be looking on ebay for a deal on some front shocks and get some material to do up my swing arm finally.



[Xero]

Looking good, HURRY AND GET IT DONE!



[mud runner]

looking good so far



[slickerthanyou]

You got your hands full bro! Looks great! I'm tired of wrenchin, I need to ride!



[sicivicdude]

Holy crap an update!!!!

Got my arms in from sicivicdude and have one side mocked up, too tired to do the other side today XD

Gonna try and move this thing into the aisle of my shop, will be looking on ebay for a deal on some front shocks and get some material to do up my swing arm finally.

Man, those are fancy dancy..... looking good man now get to the rest of it!

When you get ready to get the swingarm tubing take my advice, build a jig for it. Otherwise you'll have it all warped out and nothing will be straight.



[Brute71]

I plan on doing some form of jig for the swinger when i start on that.



[doodleaddict]

looking good mate



[Brute71]

soon as I get it into the main work area I can align everything up and start on the swing arm



[Brute71]

Working on getting some form of jig set up so I can do up the swing arm and make some kind of roller.

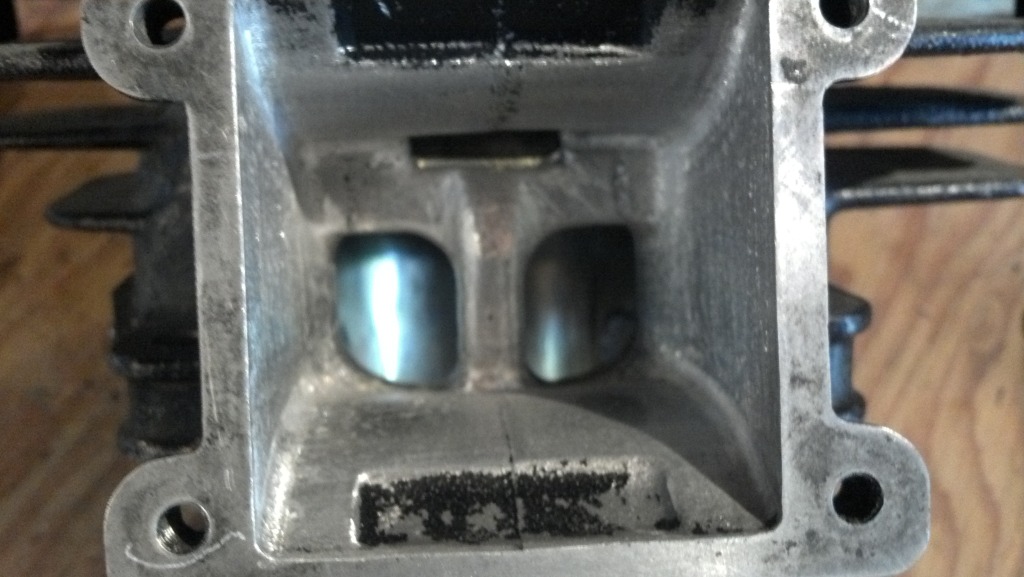

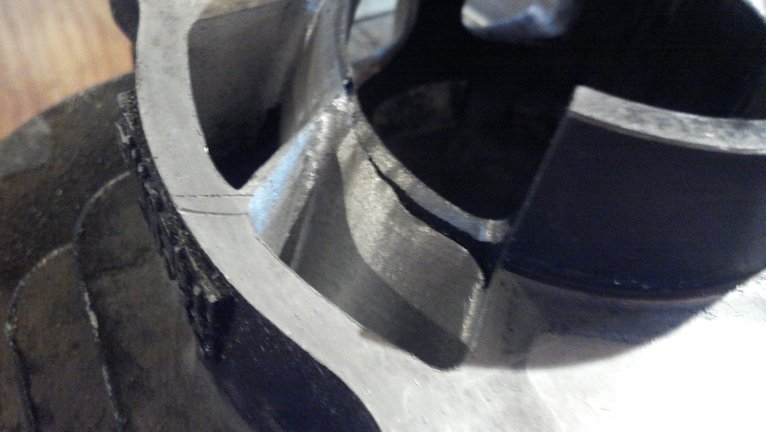

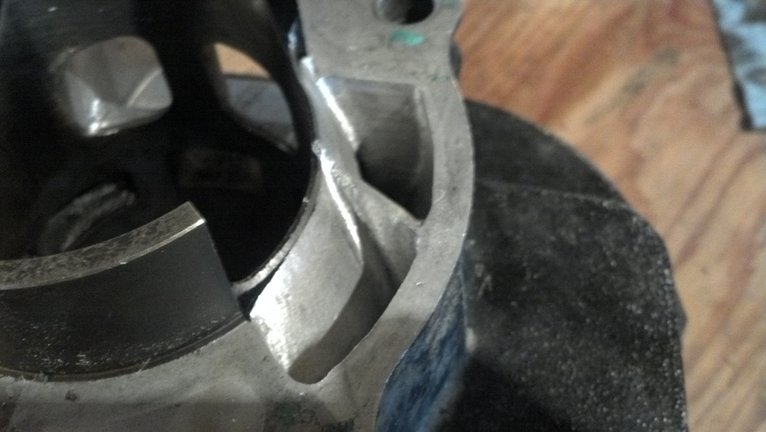

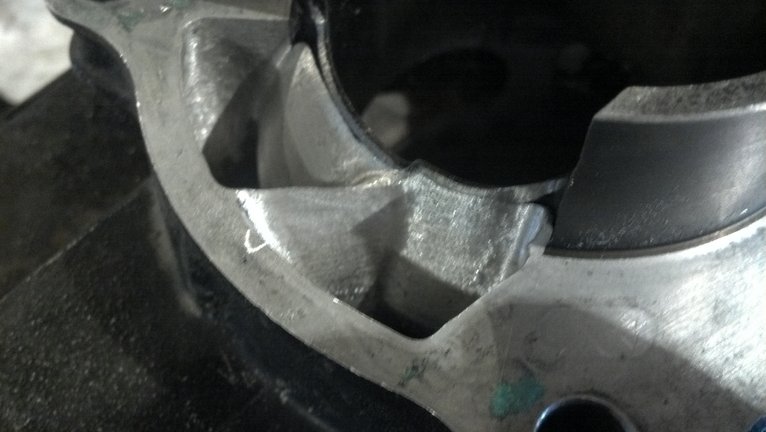

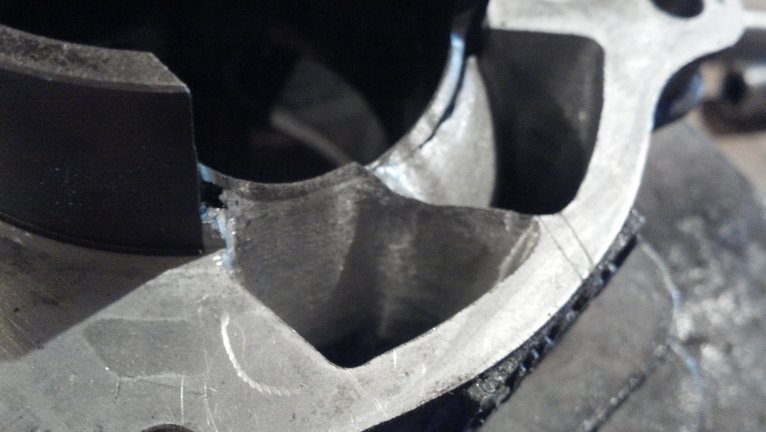

Also got bored a couple weeks back and decided to do a little clean up work on the cylinder ports, little bit rusty from the last time I did any sort of engine porting (used to do up the 2 strokes in R/C's).

Still need to polish up the exhaust and raise it a bit as well as do some more clean up work (intake leaves more to be desired), gonna get some jbweld as well to fix some of my "oopsies" and fill in some of the more serious casting flaws. This jug is on its last bore so might as well have some fun with it

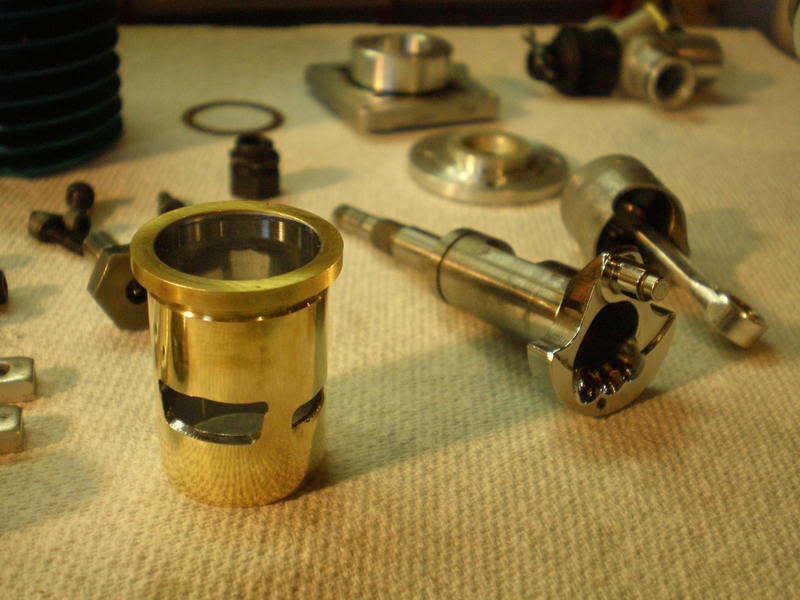

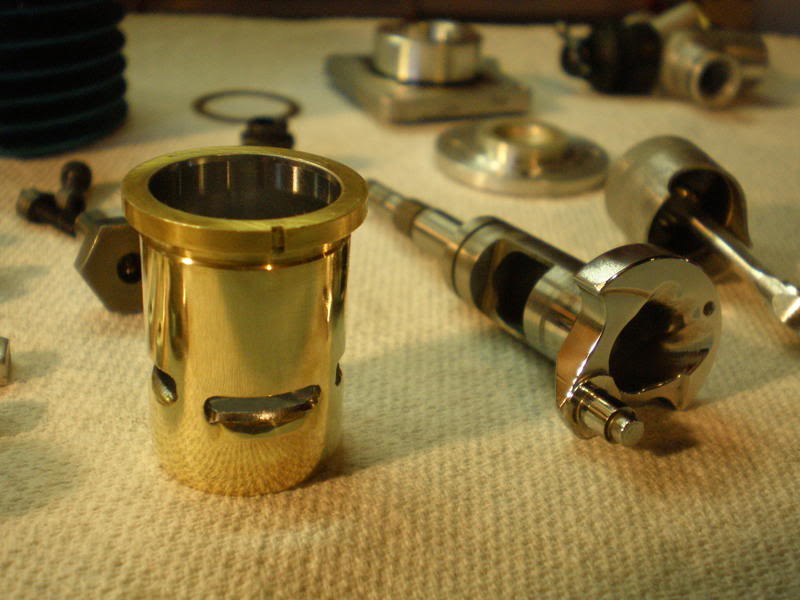

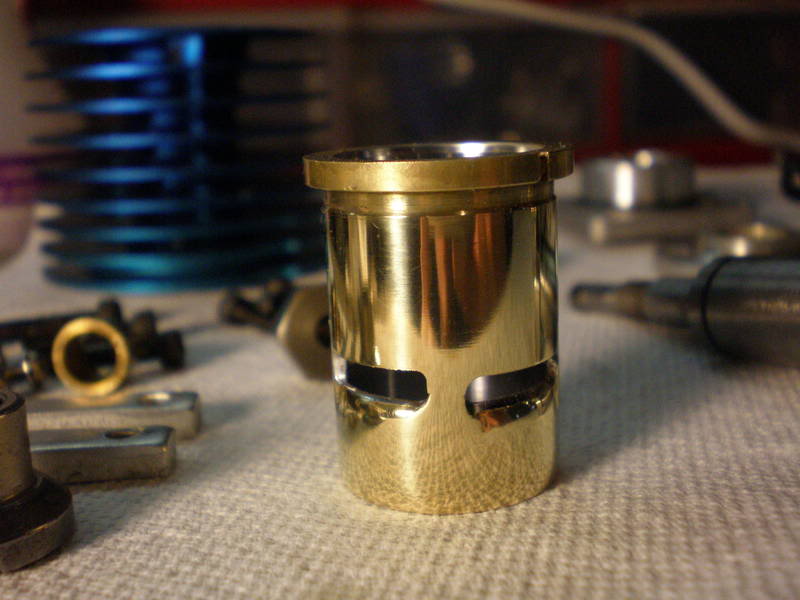

Pics of some previous R/C engine work (SH28 3port, she screamed and had gobs of power and revs):
