My 1st Blaster
- Thread starter Markblaster
- Start date
Ordered.
ModQuad Black Billet Aluminum Oil Plug
ModQuad Swingarm Swing Arm Chain Slider
Outerwears Air Pre-Filter Cover
Black Silicone Straight Reducer for air-box

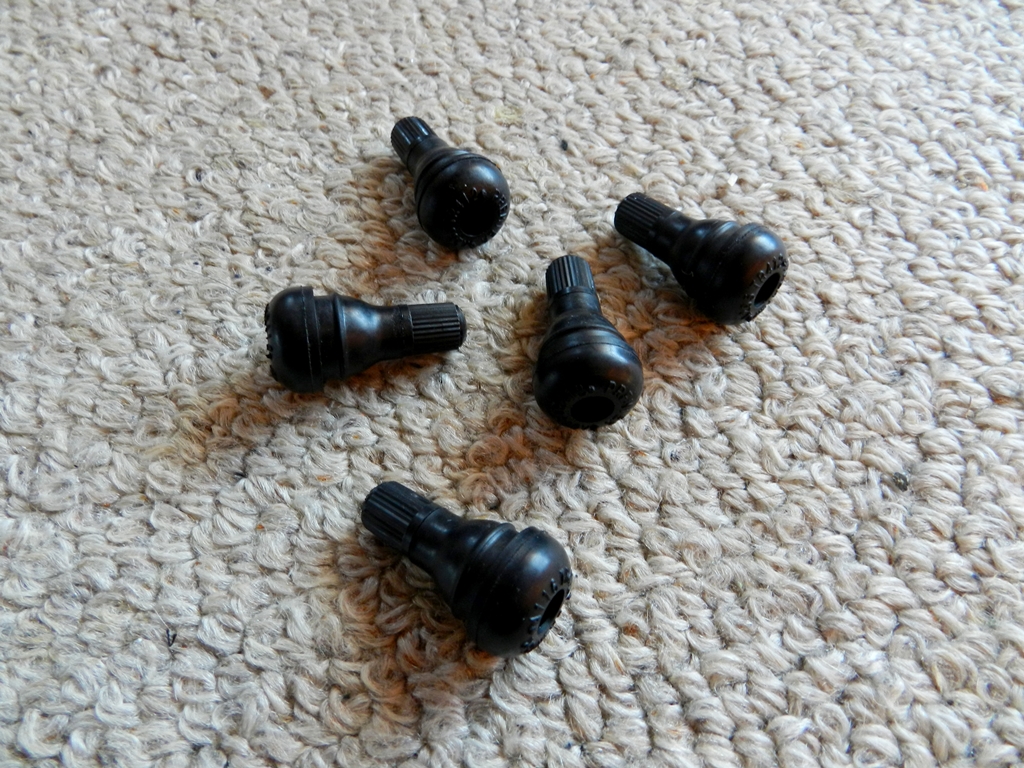

Tire Valves and caps
Modquad Axle Double Locking Lock Nut
CNC aluminum thumb throttle
New Tools.
EBC Clutch Basket Holding Tool
Flywheel Puller
SPI Spark Plug Caddy
Also ordered my cnc cut plates for the Trail-tech mount, Grab bar number plate bracket, rear master cylinder guard.
ModQuad Black Billet Aluminum Oil Plug
ModQuad Swingarm Swing Arm Chain Slider
Outerwears Air Pre-Filter Cover
Black Silicone Straight Reducer for air-box
Tire Valves and caps
Modquad Axle Double Locking Lock Nut
CNC aluminum thumb throttle
New Tools.
EBC Clutch Basket Holding Tool
Flywheel Puller
SPI Spark Plug Caddy
Also ordered my cnc cut plates for the Trail-tech mount, Grab bar number plate bracket, rear master cylinder guard.
Last edited:

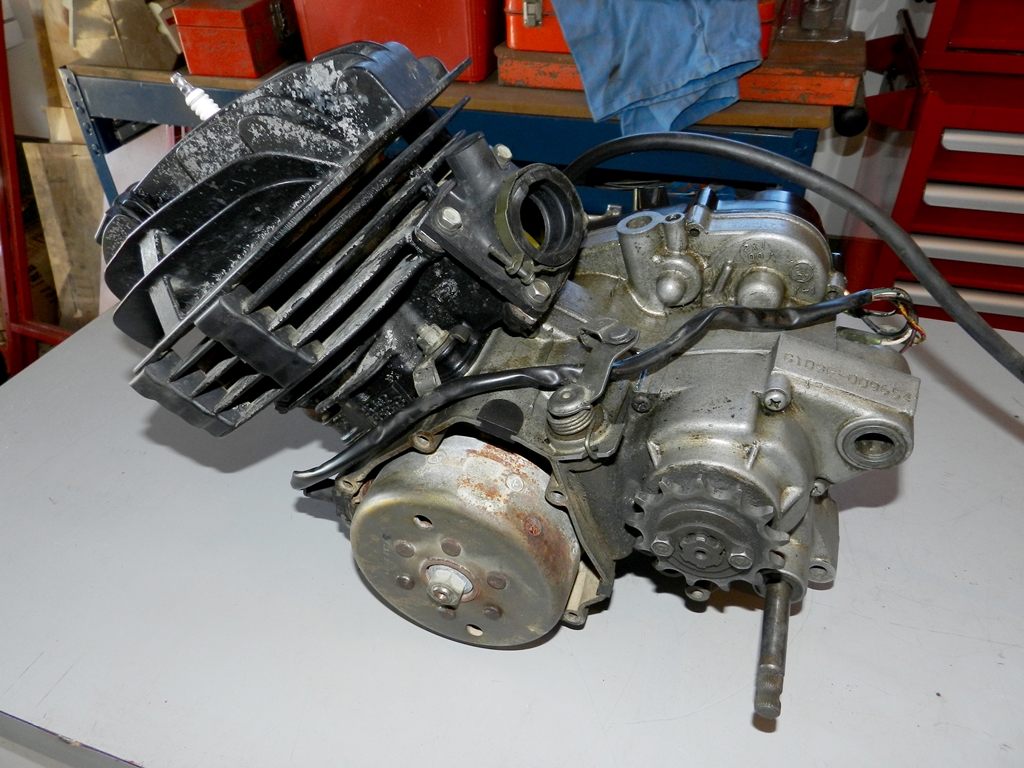

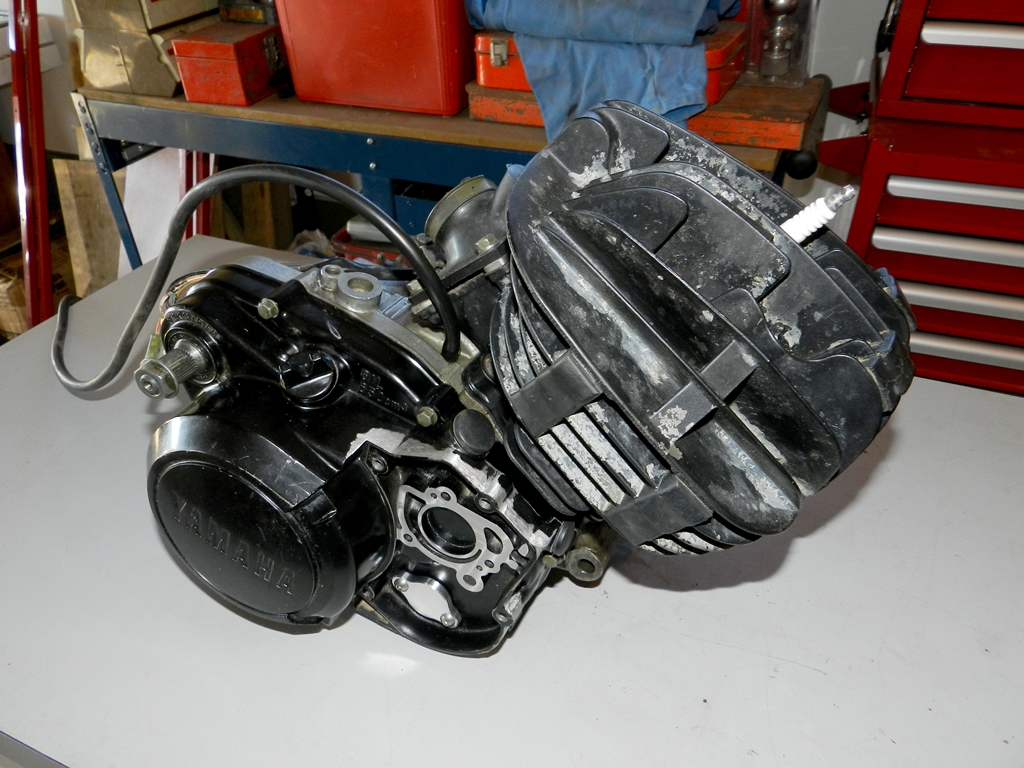

Couple photos of my engine as it is now. Will be getting a big clean and work done on it some time.
Looks like it may have had a leak or one in the pass. on the right. Will be doing a leak test on it and compression test.

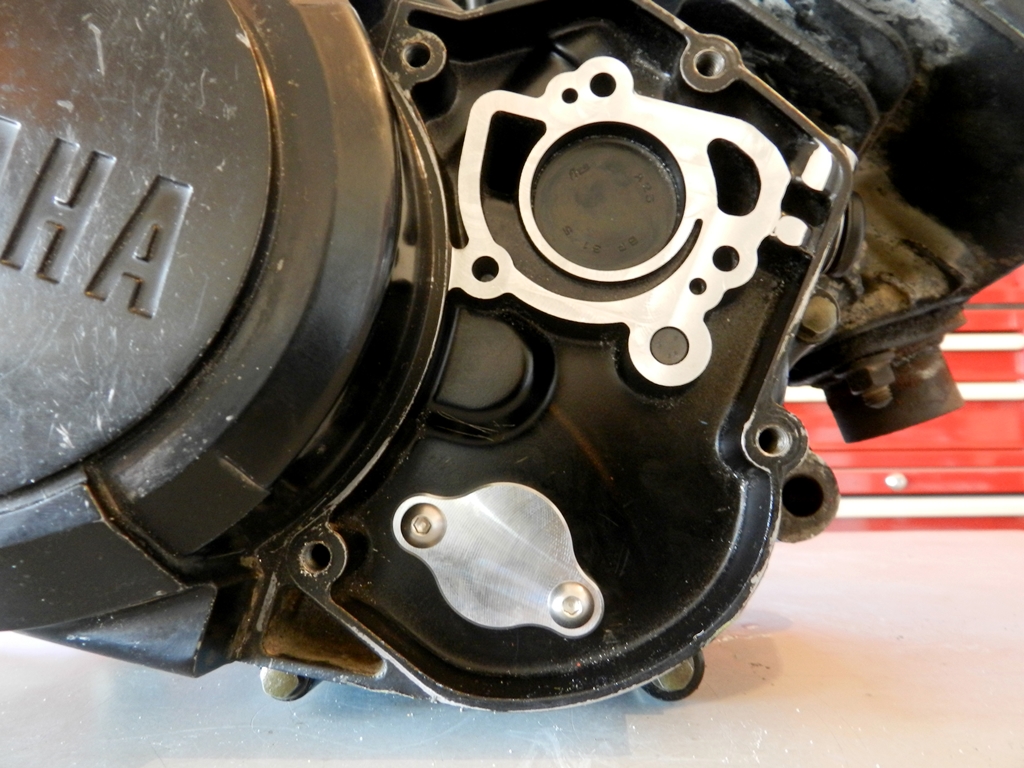

Oil pump gone and water pump mount cnc machined down.

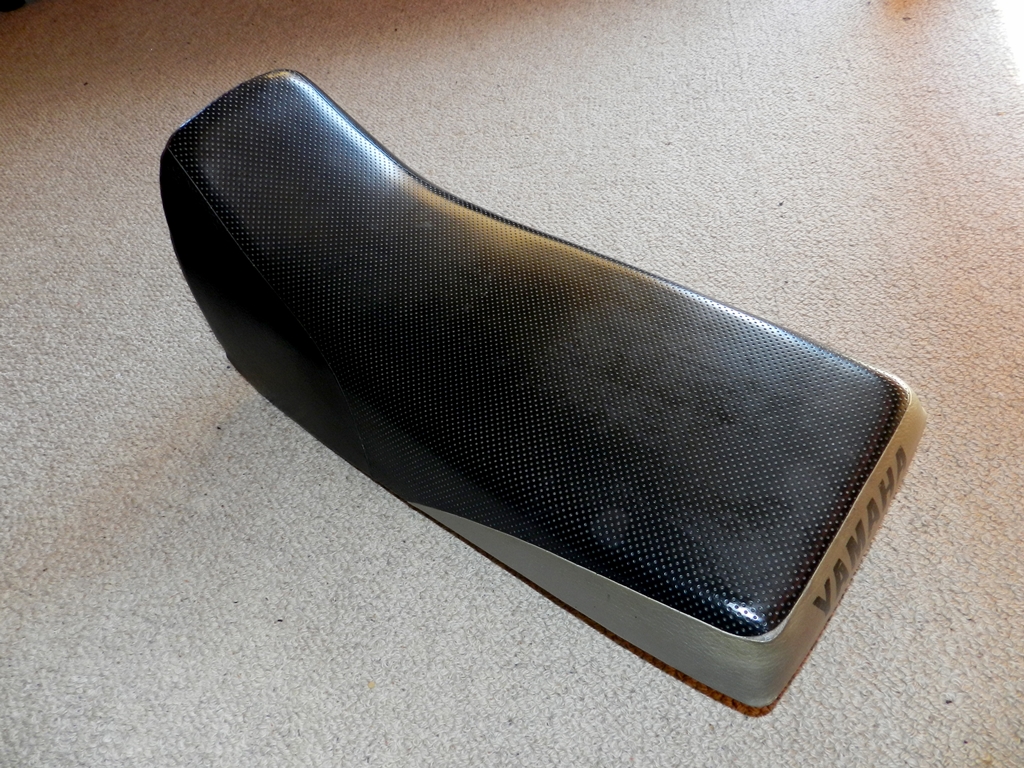

Stock seat will be getting recovered. Just need to work out what cover to buy. Any recommendations? Don't want Yamaha on it

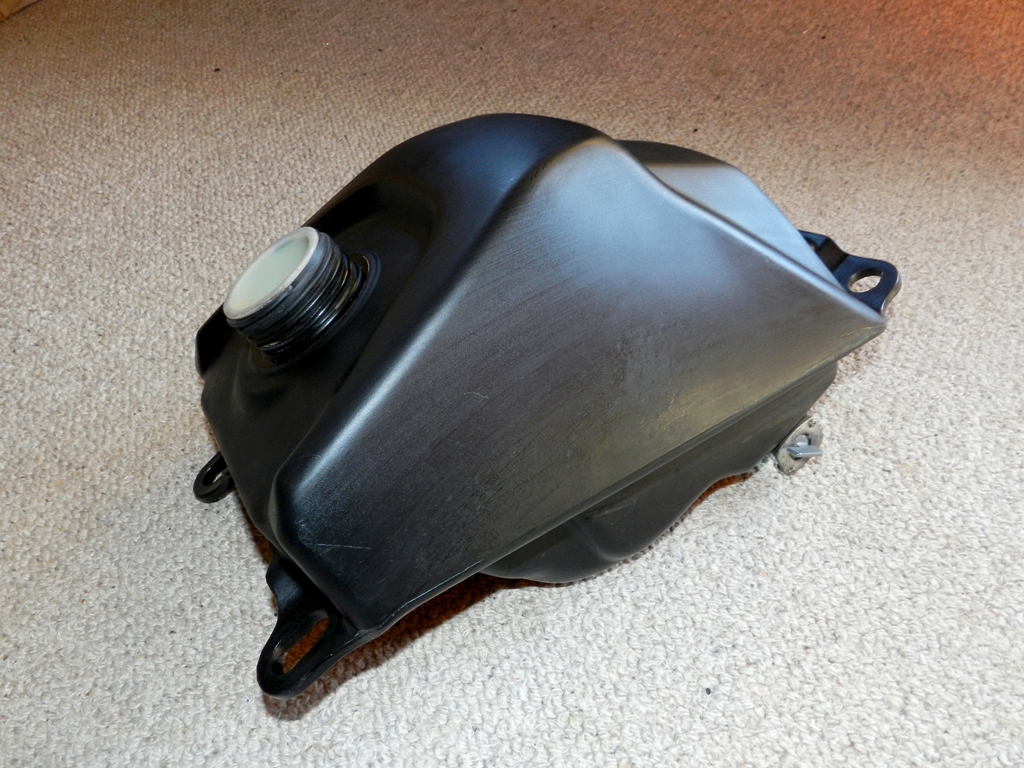

Cleaned the tank.
New valves caps will be replaced with aluminum ones when they get here..

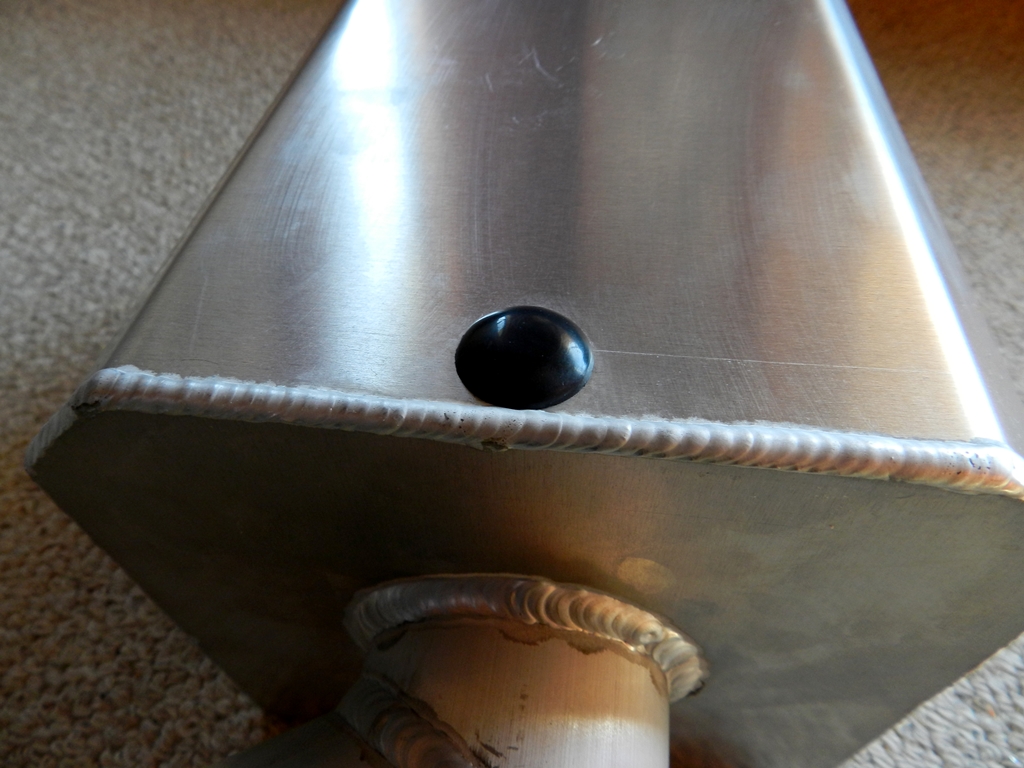

Found a rubber grommet for the air-box hole.
Ordered new lower steering stem bushes.
Looks like it may have had a leak or one in the pass. on the right. Will be doing a leak test on it and compression test.
Oil pump gone and water pump mount cnc machined down.
Stock seat will be getting recovered. Just need to work out what cover to buy. Any recommendations? Don't want Yamaha on it
Cleaned the tank.
New valves caps will be replaced with aluminum ones when they get here..
Found a rubber grommet for the air-box hole.
Ordered new lower steering stem bushes.

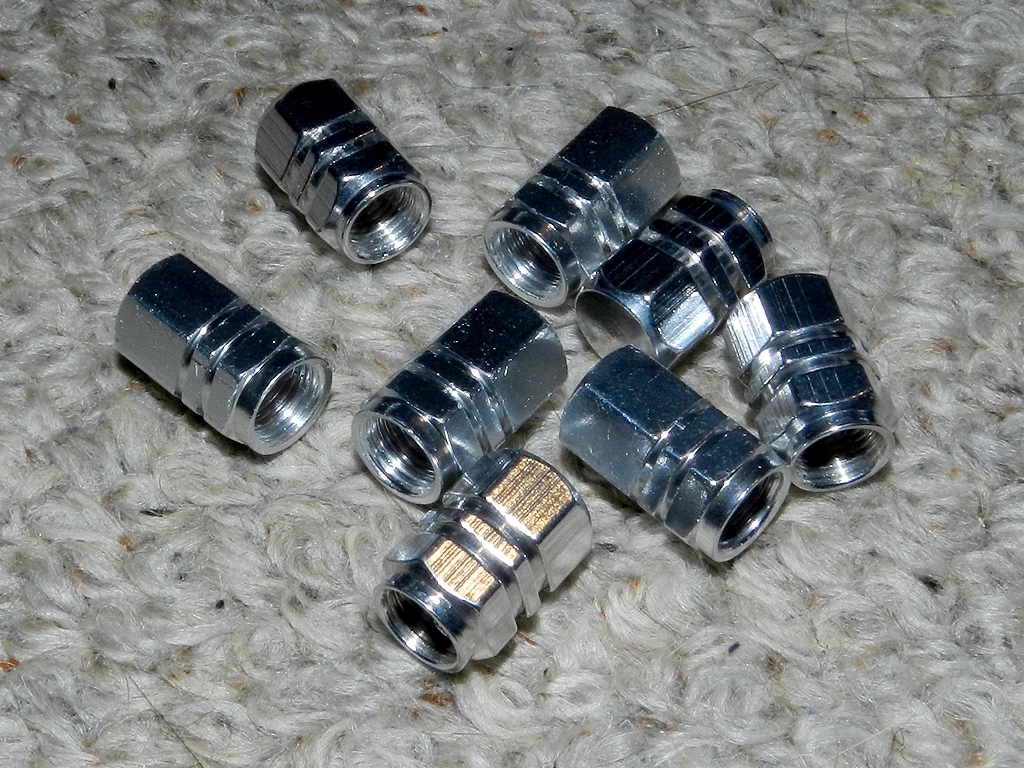

Got my valve caps. Aluminum goodness.

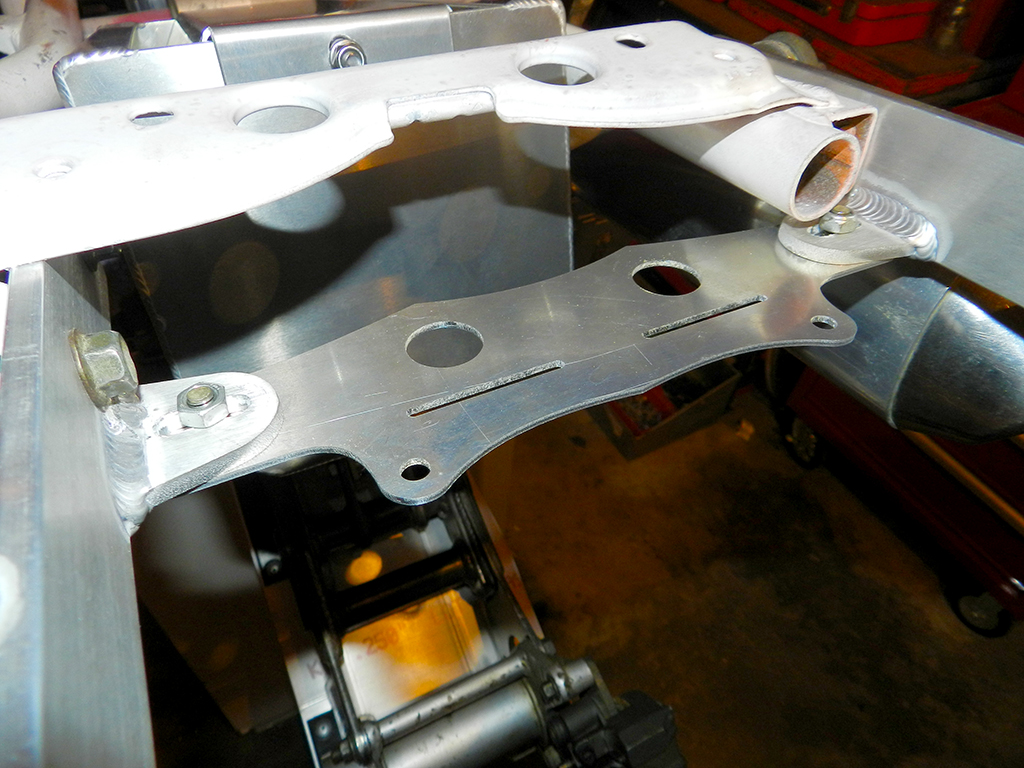

Got my cnc cut plates last night. Just need to bend them up.

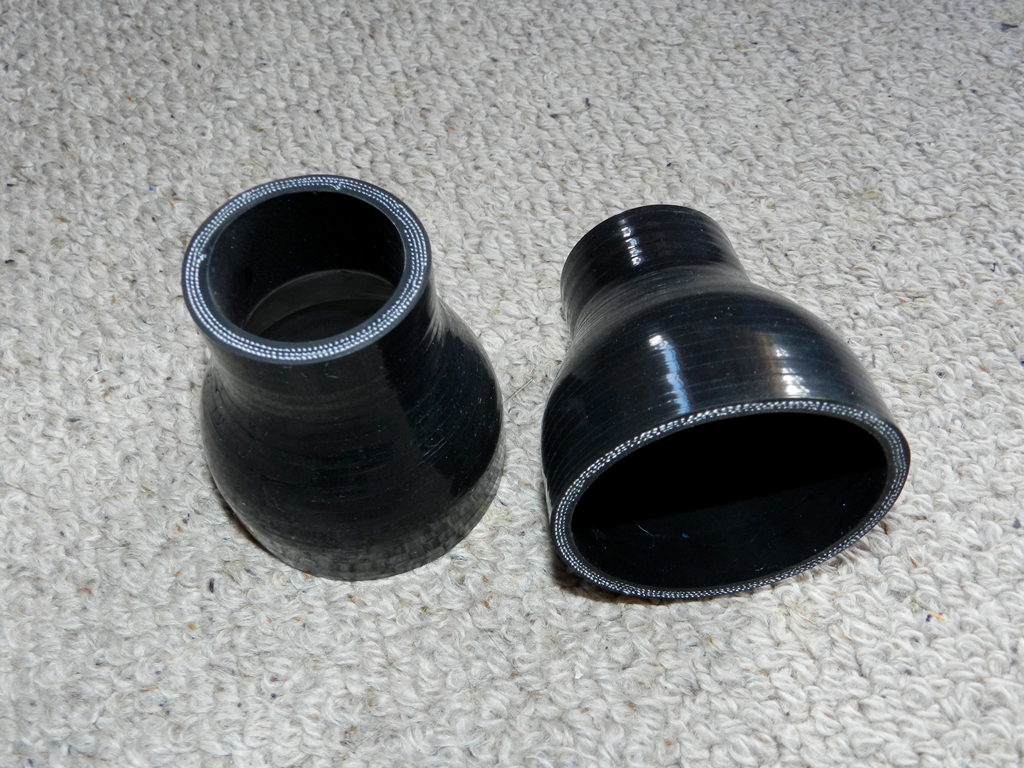

Got my intake boot today. Ordered 2 because they are so cheap.
Perfect fit. Tight fit on carb and didn't need to trim it. 3-Ply 1.5"-2.5" Black Silicone Straight Reducer
Bolted up fine to stock mounting hole in air-box.
Changed this side of the air-box. Made a step on the end of the spacer so if can sit into the hole on the gusset. Will end up making a new spacer as the stock one is about 2mm to short when I make the air-box level.
Do more on it tomorrow.
Got my cnc cut plates last night. Just need to bend them up.
Got my intake boot today. Ordered 2 because they are so cheap.
Perfect fit. Tight fit on carb and didn't need to trim it. 3-Ply 1.5"-2.5" Black Silicone Straight Reducer
Bolted up fine to stock mounting hole in air-box.
Changed this side of the air-box. Made a step on the end of the spacer so if can sit into the hole on the gusset. Will end up making a new spacer as the stock one is about 2mm to short when I make the air-box level.
Do more on it tomorrow.
Didn't do a lot today apart from make some spacers.
Made steel spacers for the air-box that I will weld to the frame.

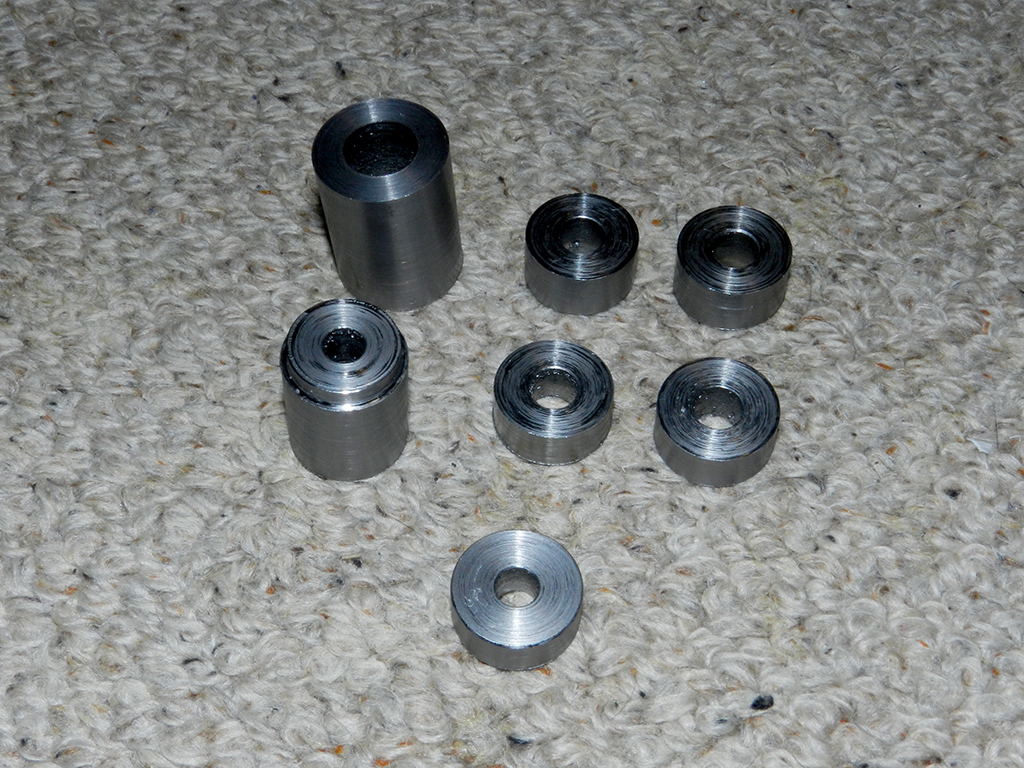

All the spacers I made today. Lower rear shock mount spacer x1, Front frame guard spacers x2, Air-box spacers x2, Rear master cylinder guard spacers x2
Do some more on quad tomorrow. Still waiting on more parts to get to me.
Made steel spacers for the air-box that I will weld to the frame.
All the spacers I made today. Lower rear shock mount spacer x1, Front frame guard spacers x2, Air-box spacers x2, Rear master cylinder guard spacers x2
Do some more on quad tomorrow. Still waiting on more parts to get to me.
Yeah it is a nightmare. mine didn't mount up using that mount system they use. Was loose as.

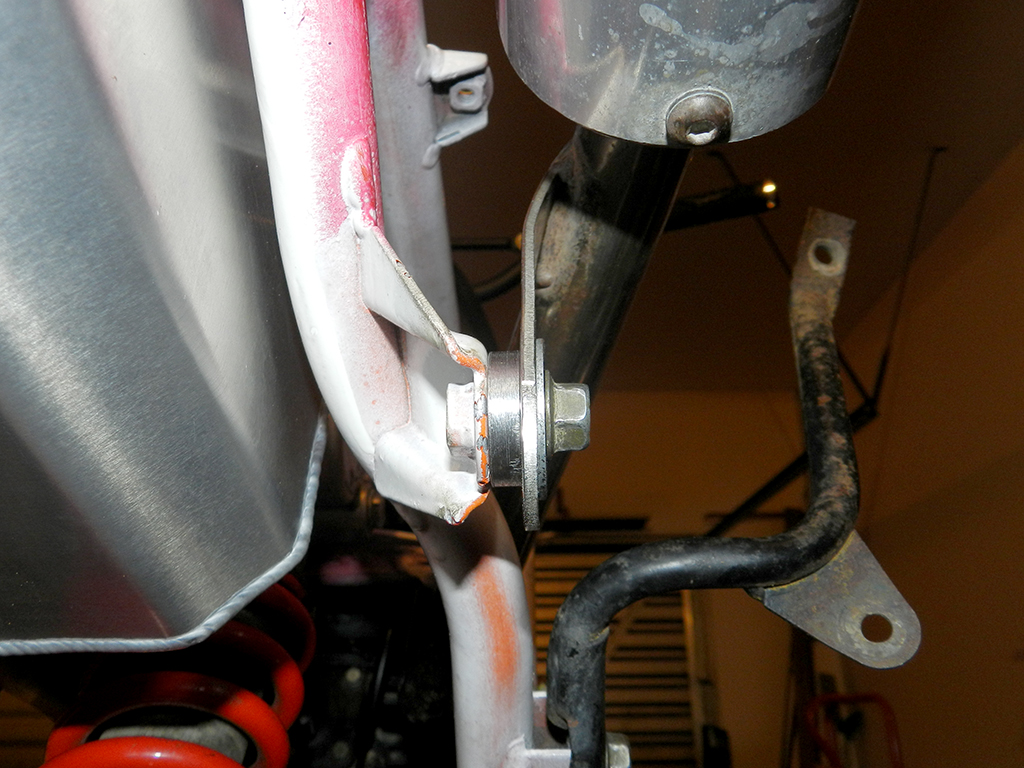

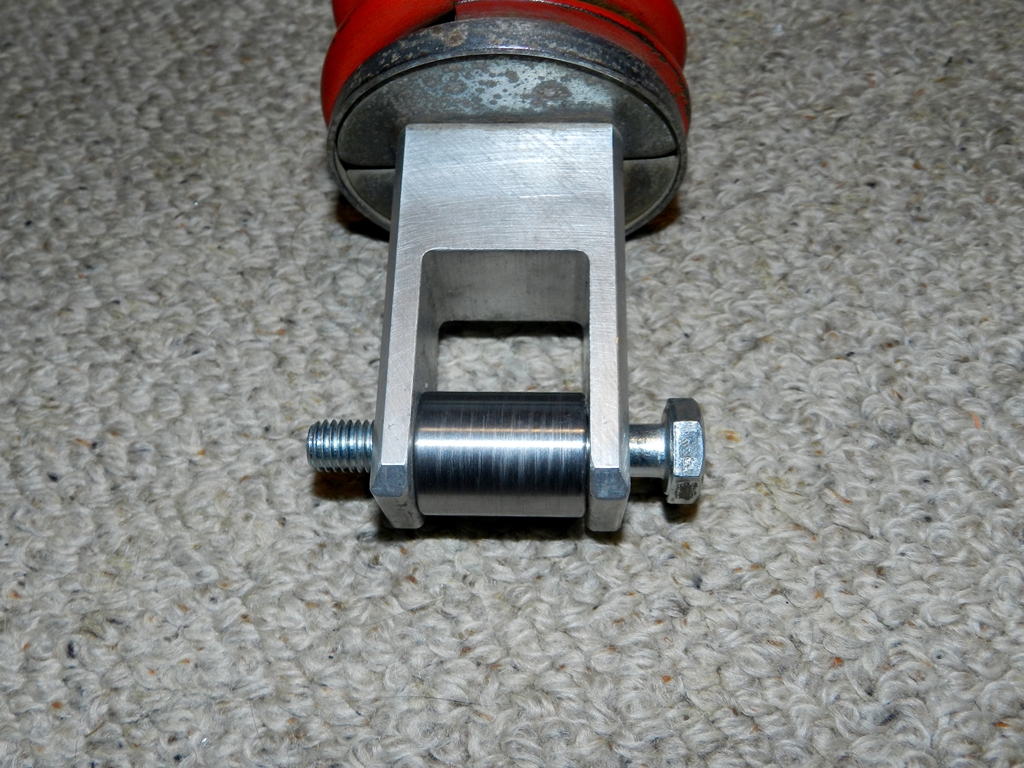

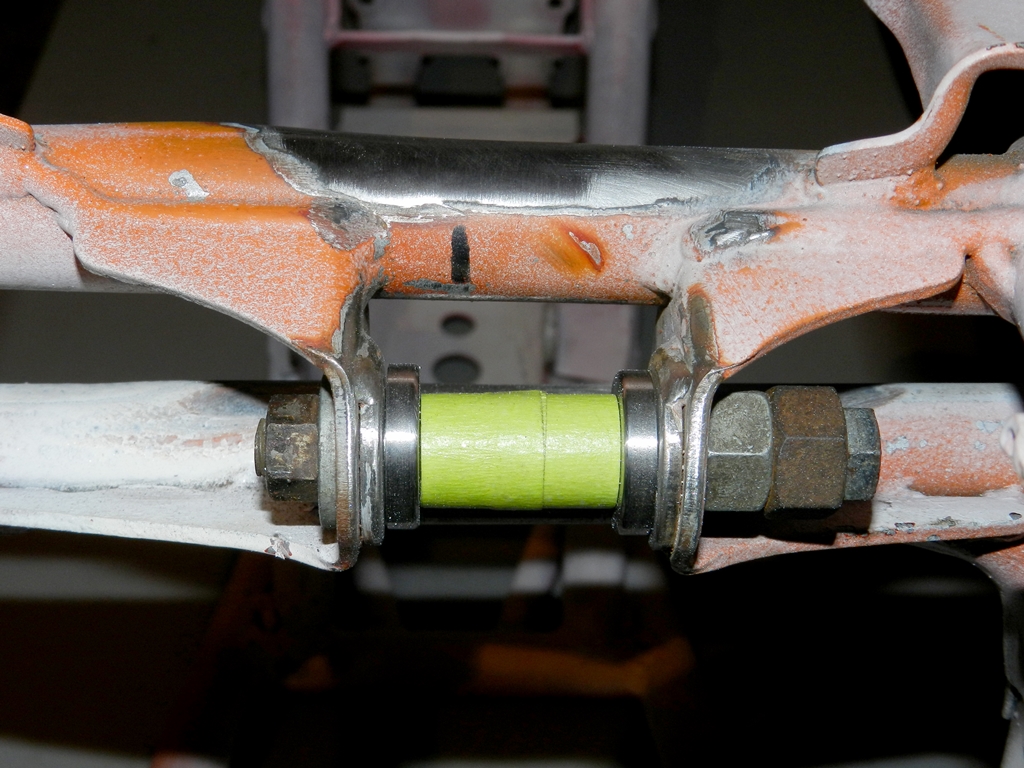

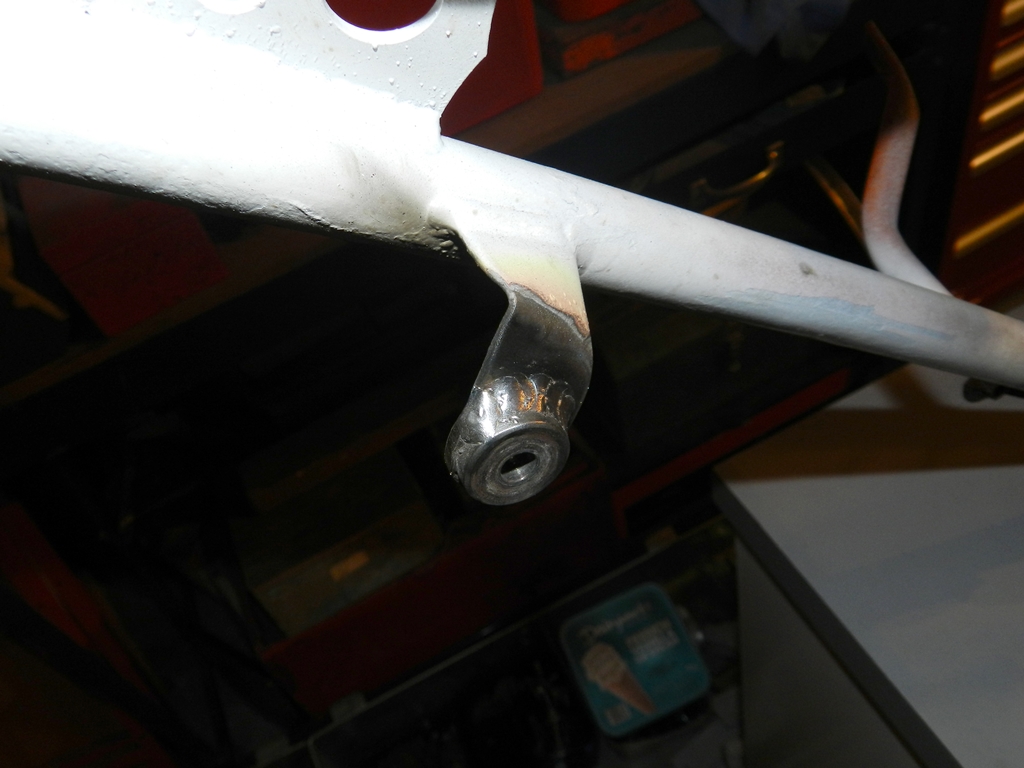

Lower shock mount spacer. I have seen a couple of people but a grease nipple in here. not sure If I will. Shock still needs a clean.

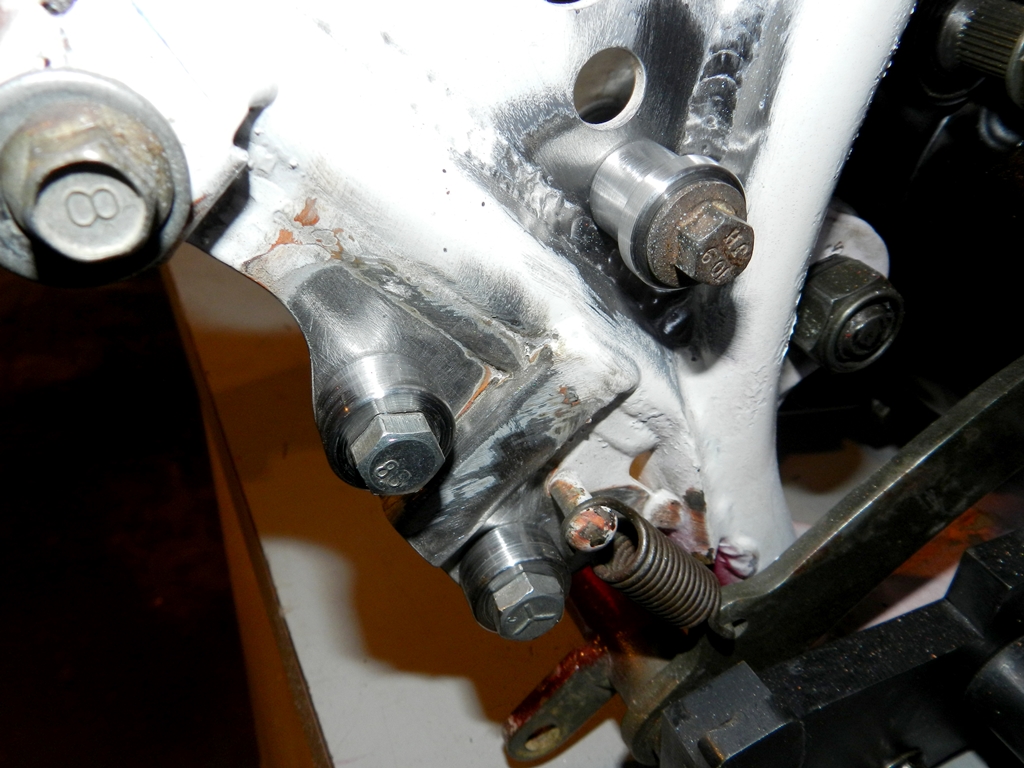

Spacers in place ready to weld for the rear master cylinder guard. Also 1 spacer in the gusset for the frame guard.
Spacers in place ready to weld for the front frame guard.
Top rear shock bushes in place ready to tack weld in place.

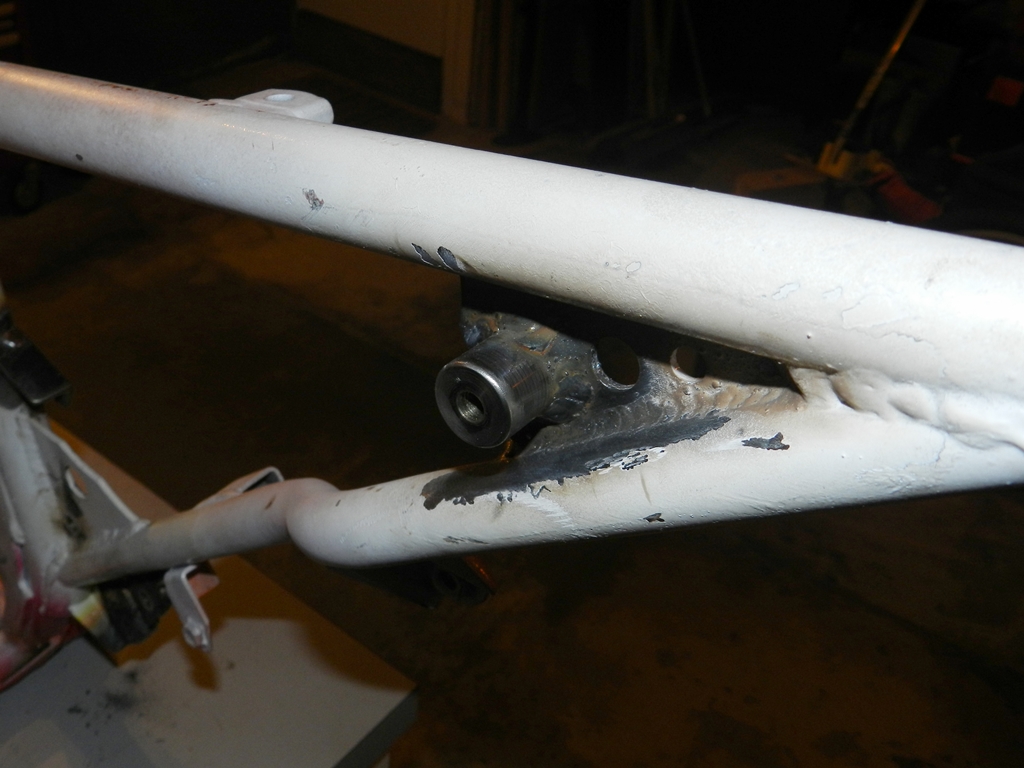

Air-box spacers in place ready to weld.
Don't worry the bolts I have used are just random ones I had out of bolt bin. Will be getting all new bolts.
That's it for today. I removed the engine and its ready to be welded up. Also be welding the coil bracket and CDI brackets into the frame.
Spacers in place ready to weld for the rear master cylinder guard. Also 1 spacer in the gusset for the frame guard.
Spacers in place ready to weld for the front frame guard.
Top rear shock bushes in place ready to tack weld in place.
Air-box spacers in place ready to weld.
Don't worry the bolts I have used are just random ones I had out of bolt bin. Will be getting all new bolts.
That's it for today. I removed the engine and its ready to be welded up. Also be welding the coil bracket and CDI brackets into the frame.

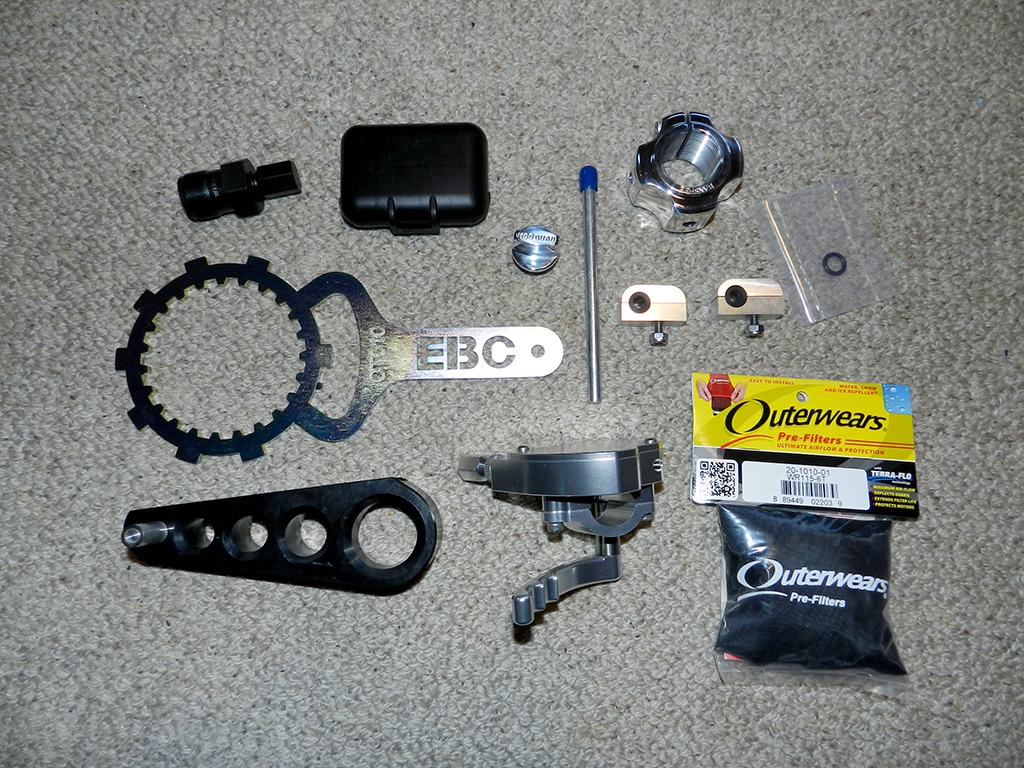

More parts come today.
Axle nut.

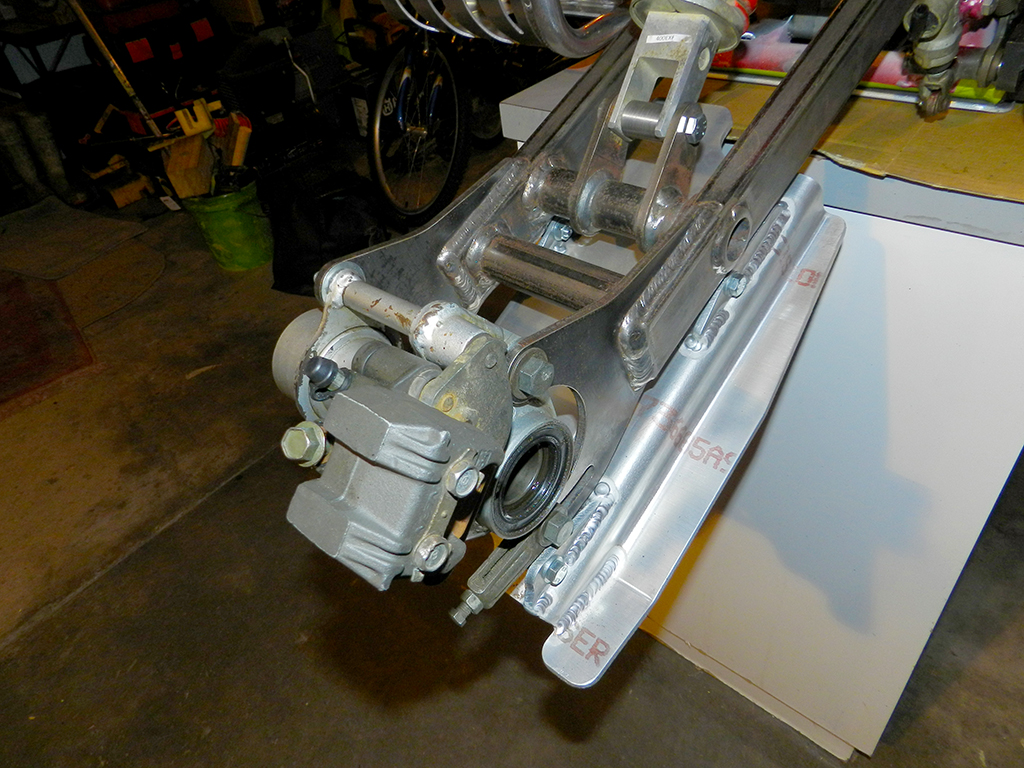

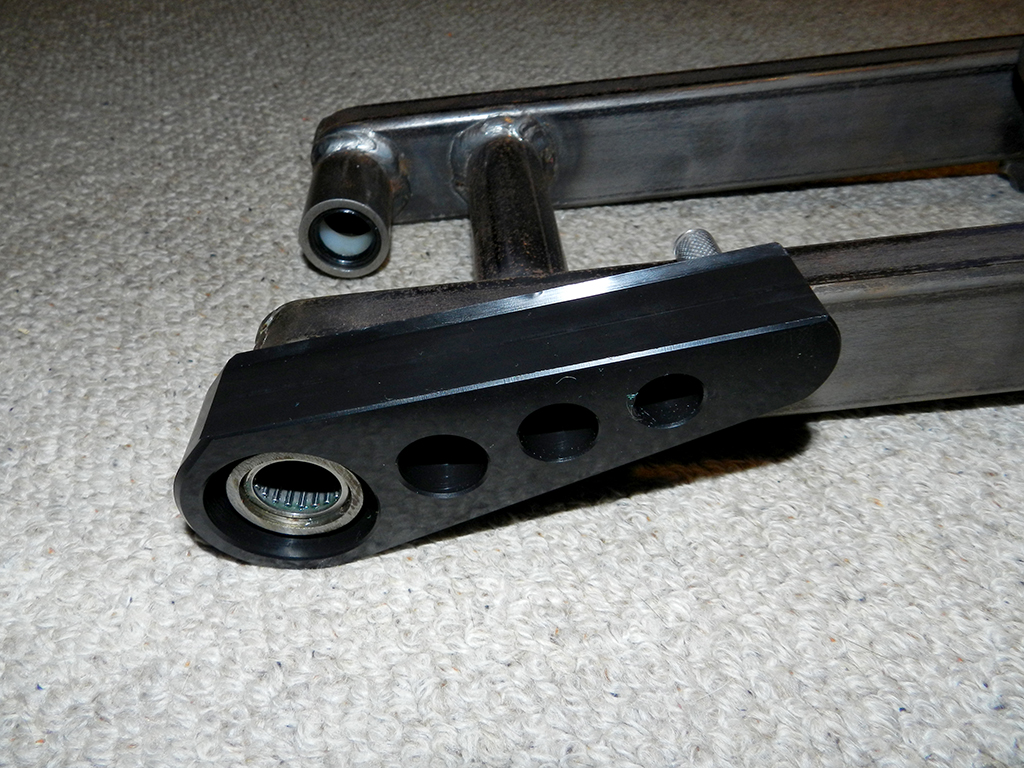

Swing arm chain slider. Not sure if there short be this much of a gap behind it.

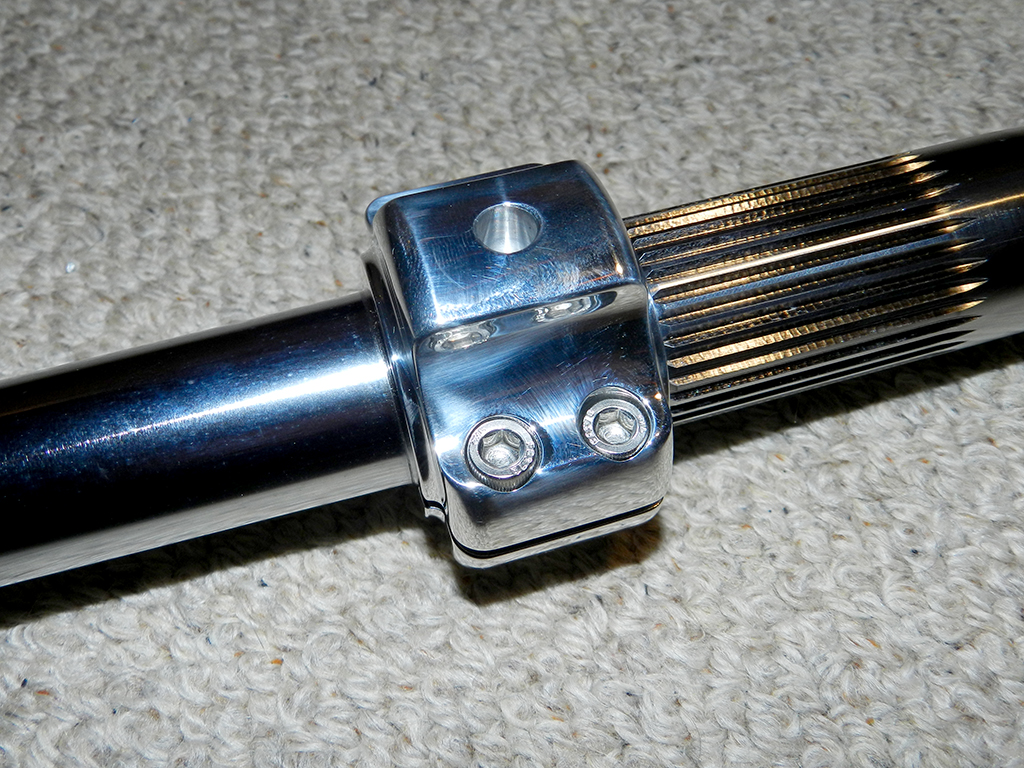

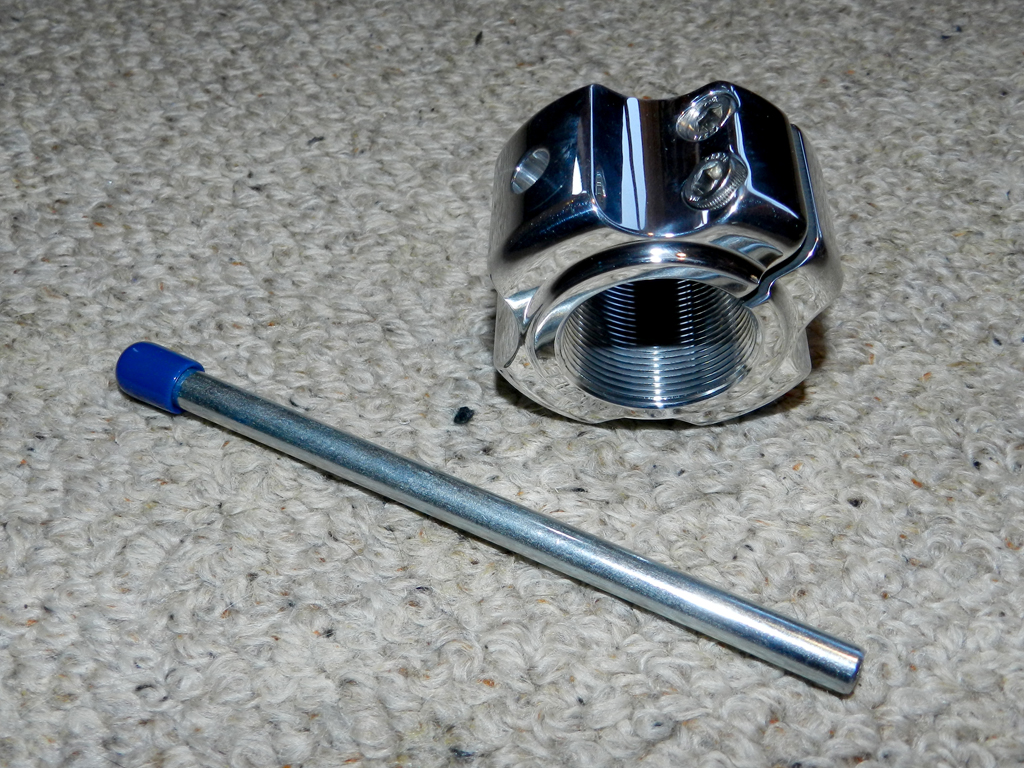

Thumb throttle.

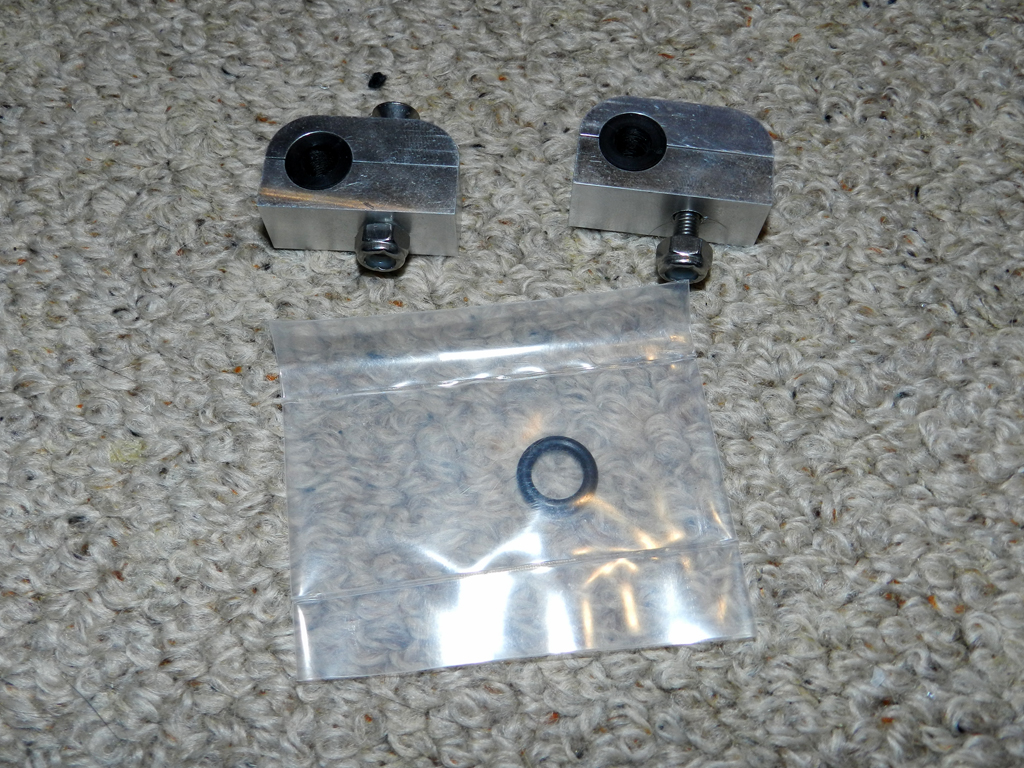

Brake line mounts for swing arm.

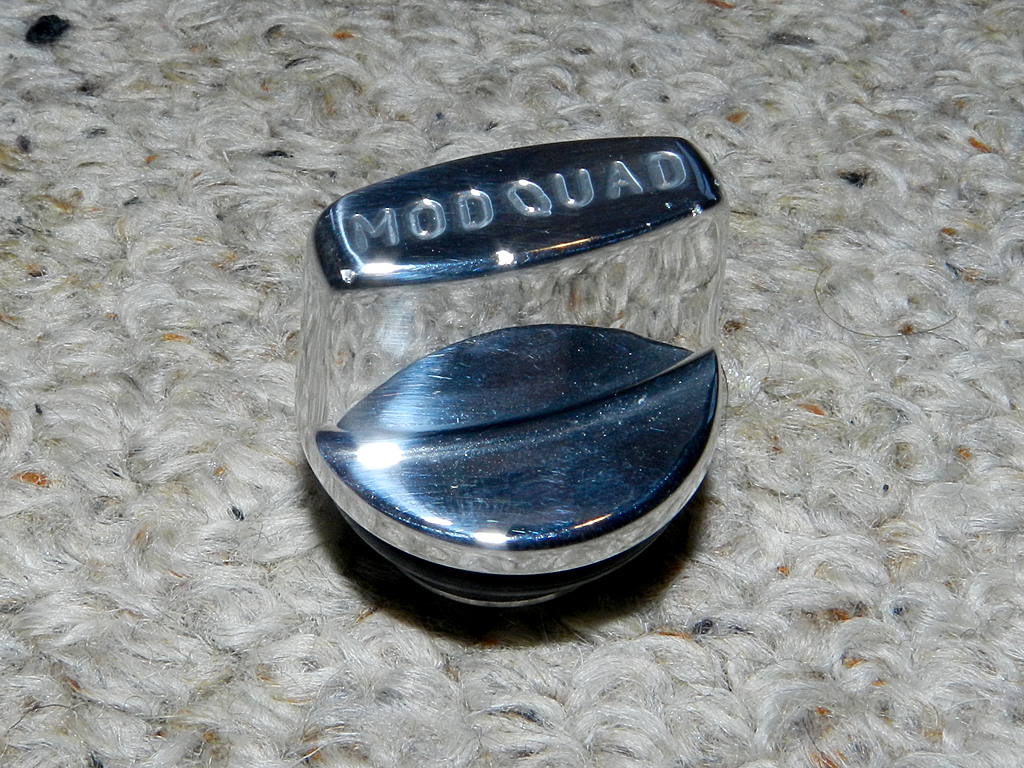

Oil filler cap.

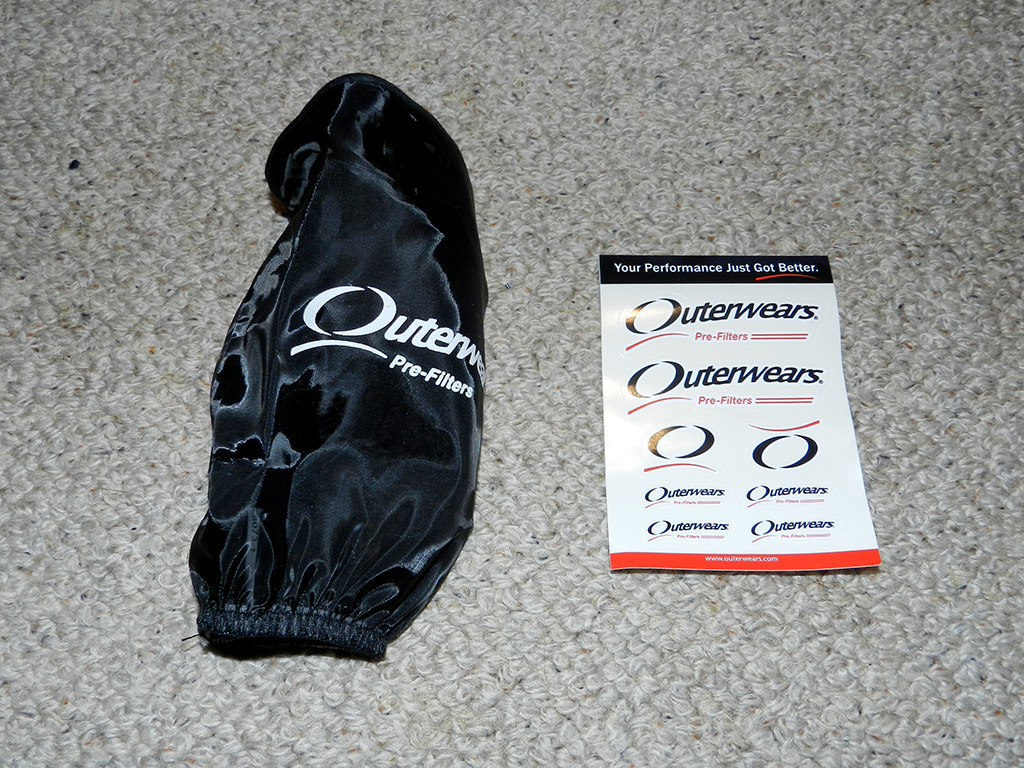

Outwears to go on my air filter.

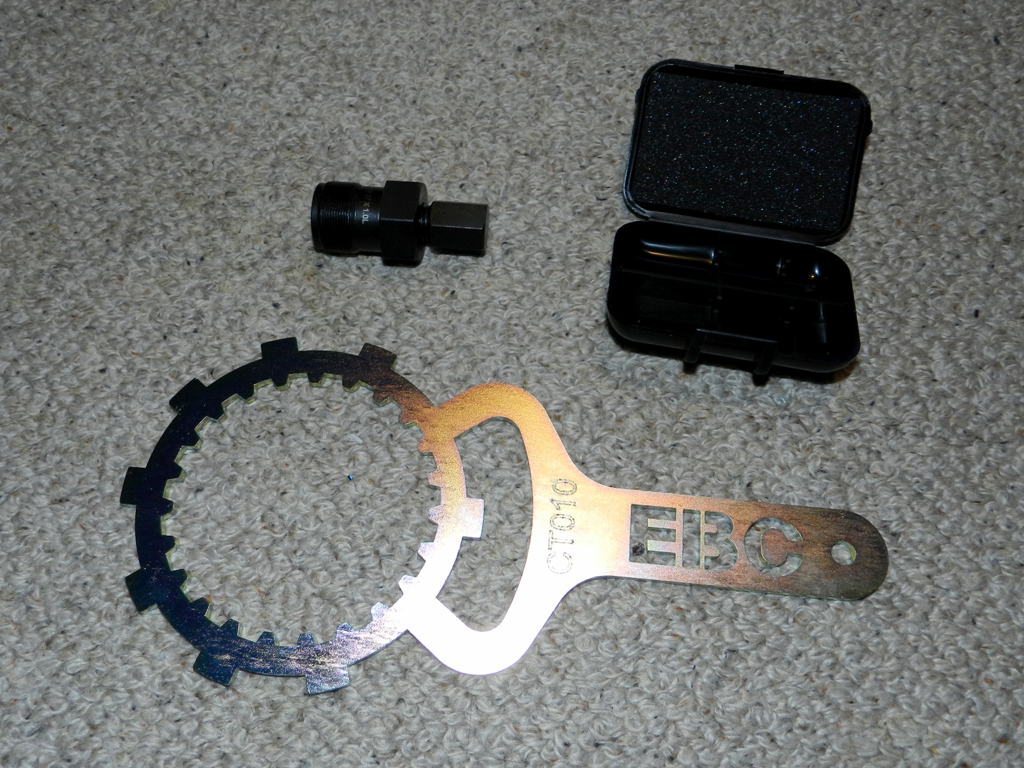

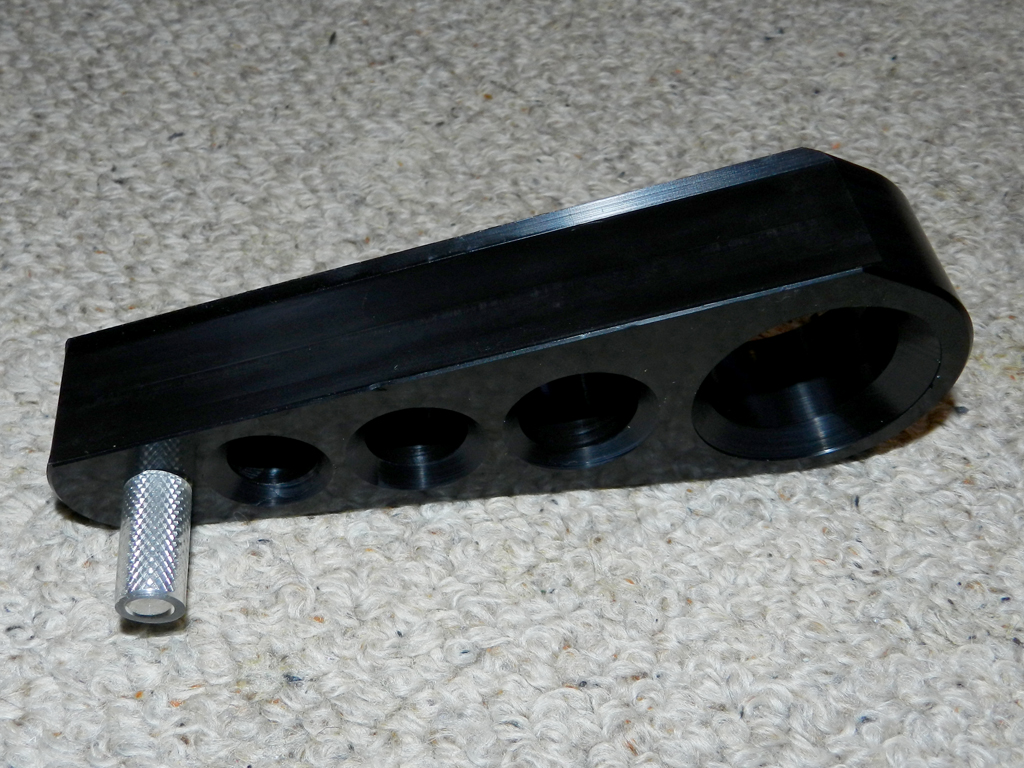

Also got some tools. Little black box is a spark plug holder that holds 2 spark plugs.
Still wanting on lower steering stem bushes. Also started collecting parts to build a leak tester.
Axle nut.
Swing arm chain slider. Not sure if there short be this much of a gap behind it.
Thumb throttle.
Brake line mounts for swing arm.
Oil filler cap.
Outwears to go on my air filter.
Also got some tools. Little black box is a spark plug holder that holds 2 spark plugs.
Still wanting on lower steering stem bushes. Also started collecting parts to build a leak tester.
I like the Thumb throttle, i seen those on ebay, they are cool looking and at a great price! You need to give us all a review on it!
Yeah they look nicely made. will get a photo up today on the inside of it. The movement on the lever is so smooth.
I like the Thumb throttle, i seen those on ebay, they are cool looking and at a great price! You need to give us all a review on it!
Here you go.
http://www.blasterforum.com/threads/cnc-aluminum-ebay-thumb-trottle.64853/

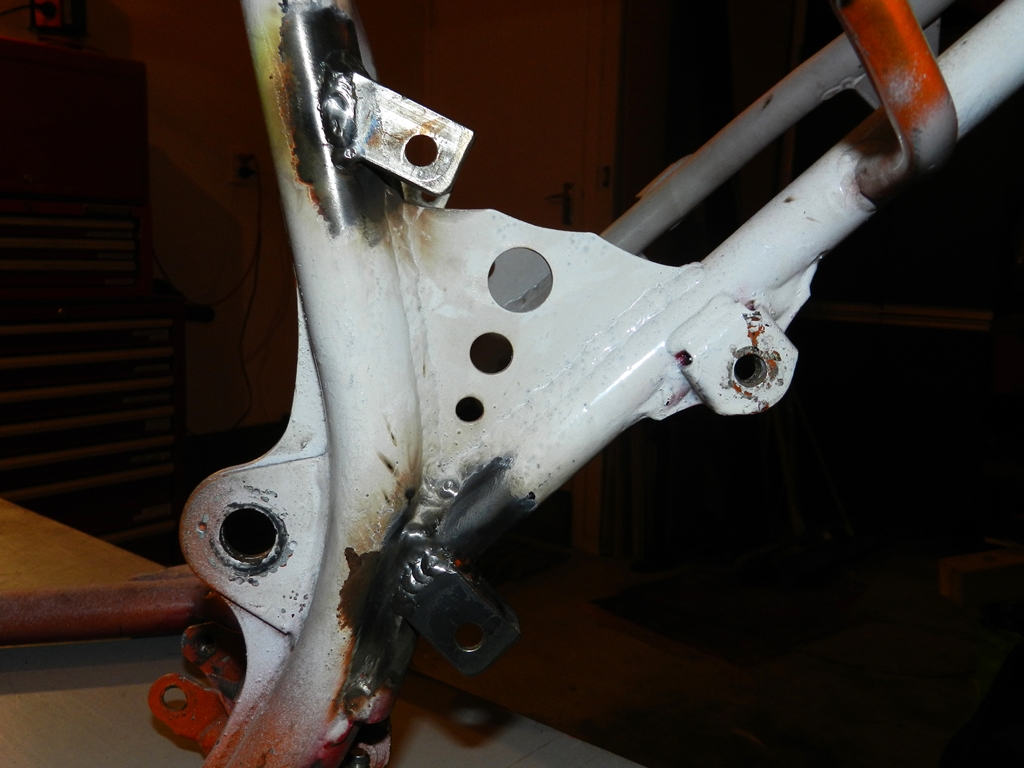

Got some more parts today and parts welded on the frame.
Coil mount installed.
Front frame guard spacers welded.

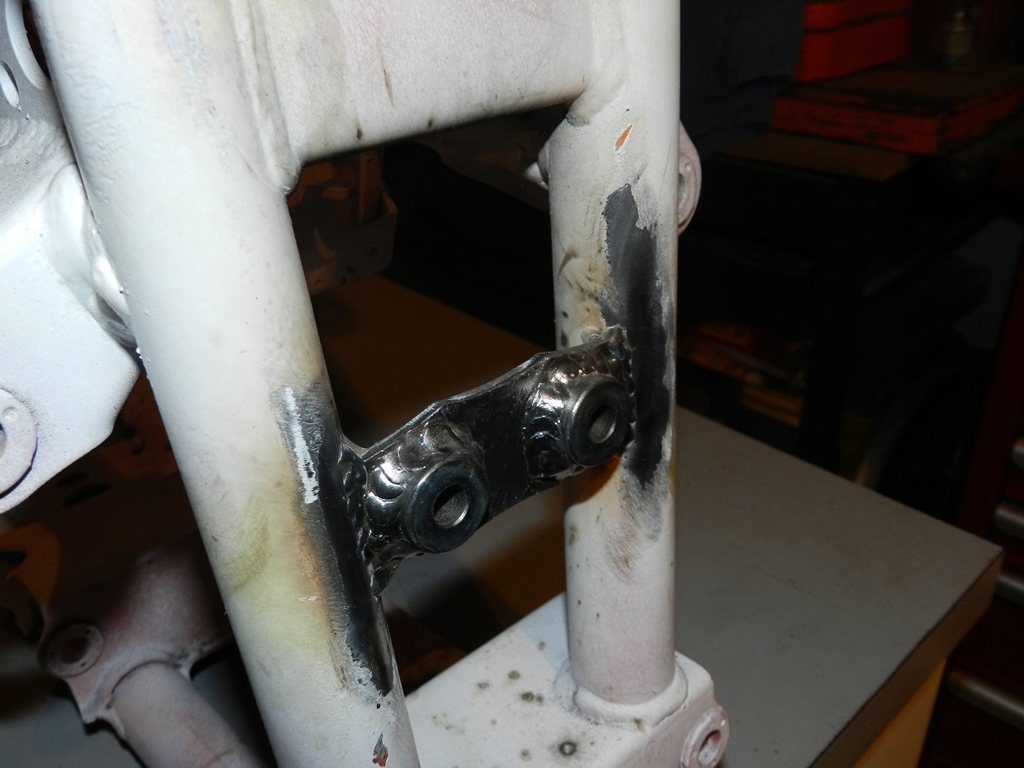

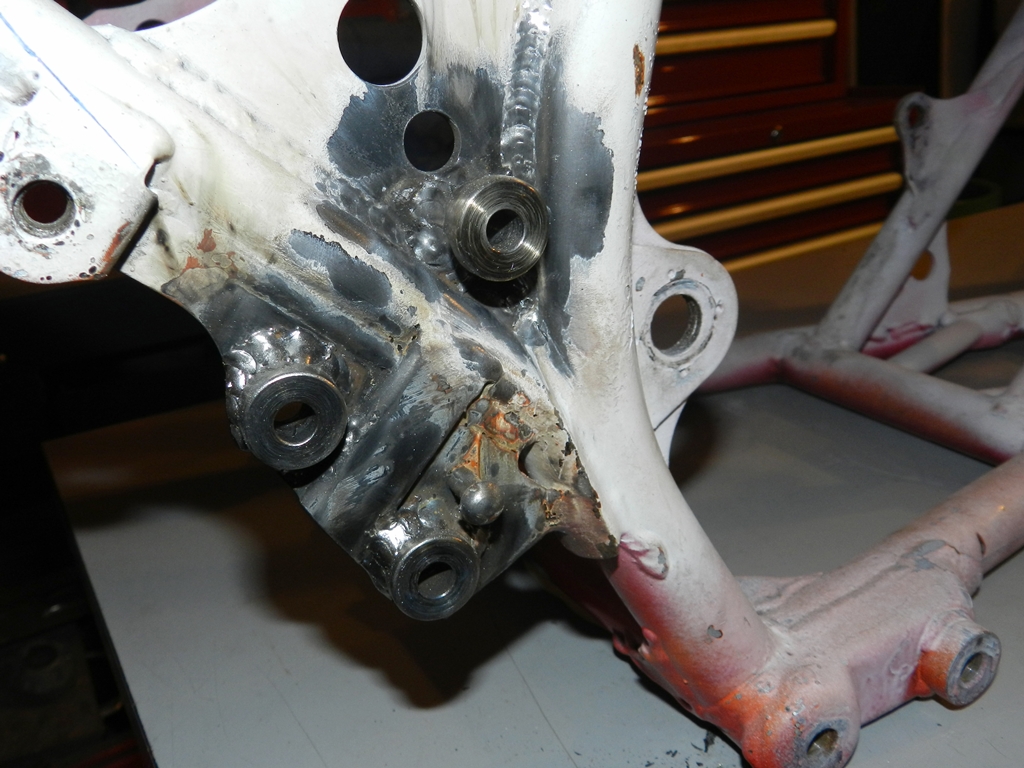

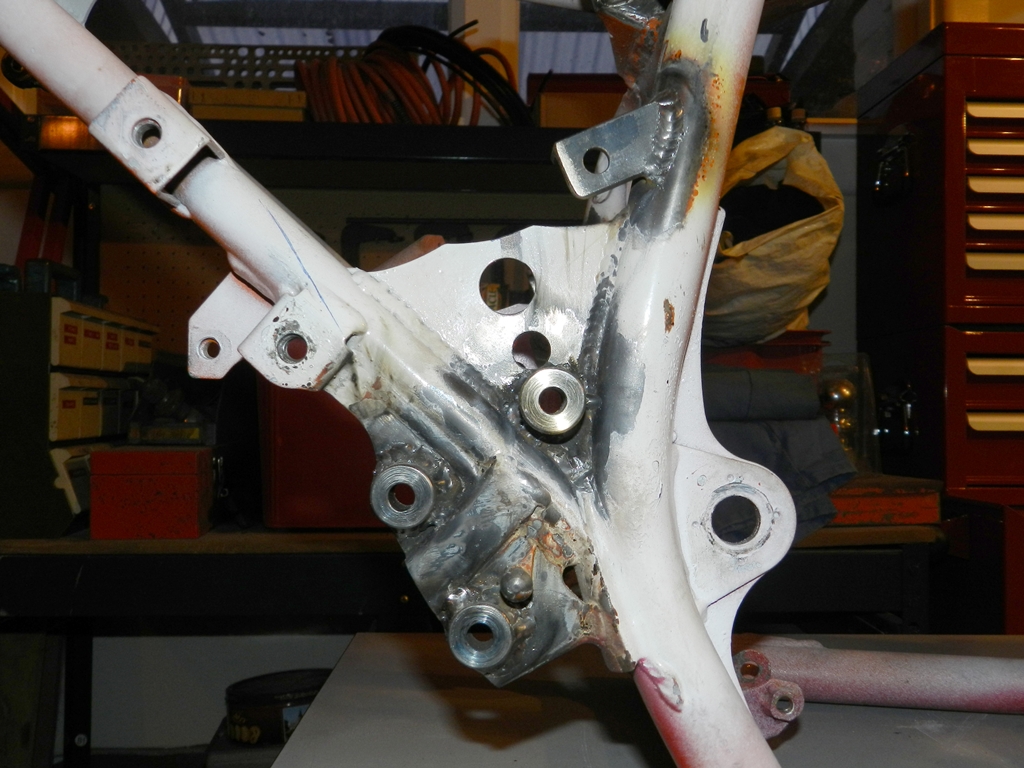

Rear master cylinder spacers and frame guard spacer / bracket installed.
CDI bracket installed. Also breather hose mount for engine still goes up here.
Upper rear shock bushes installed.

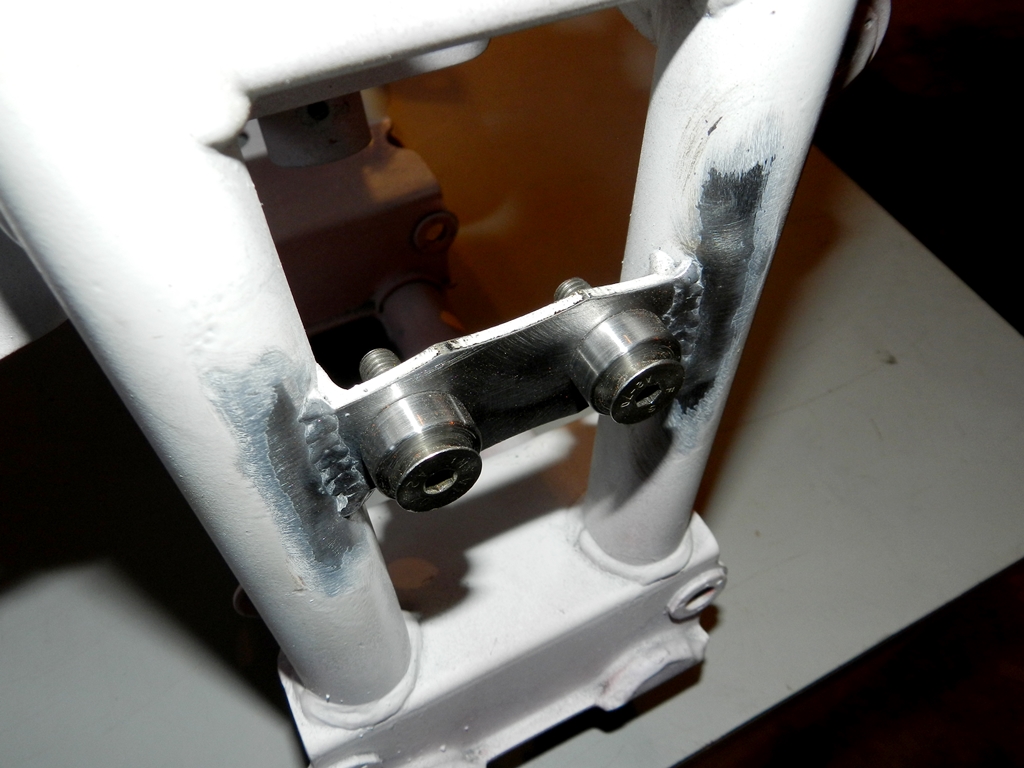

Air-box spacers installed.

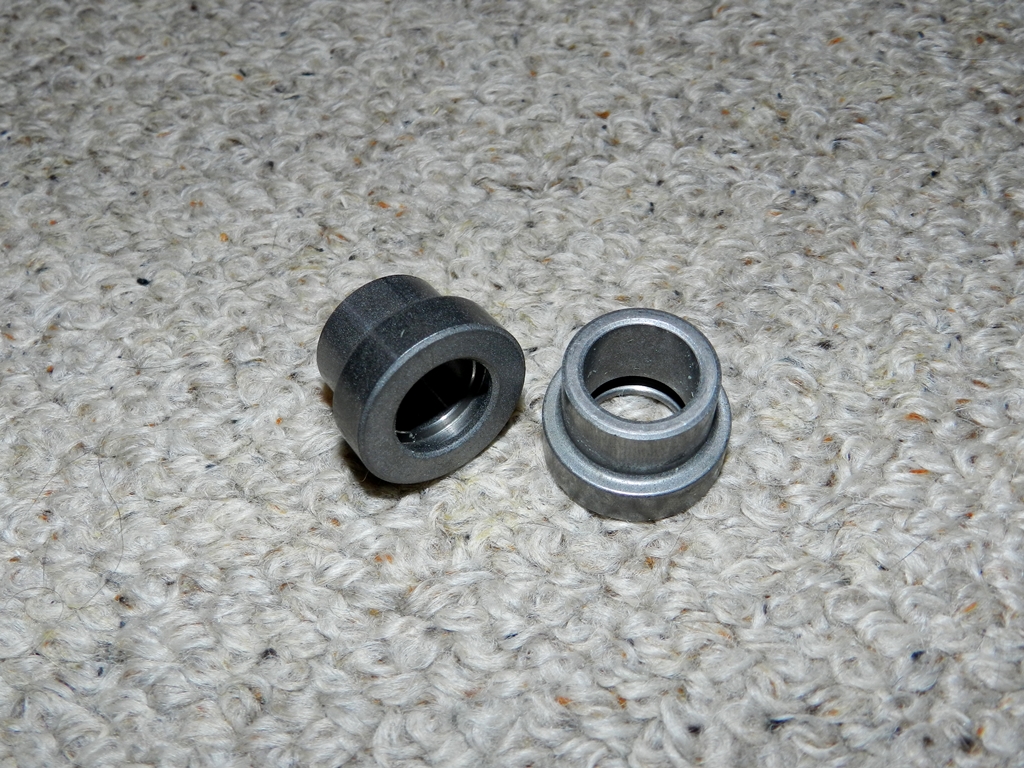

New lower steering stem bushes.

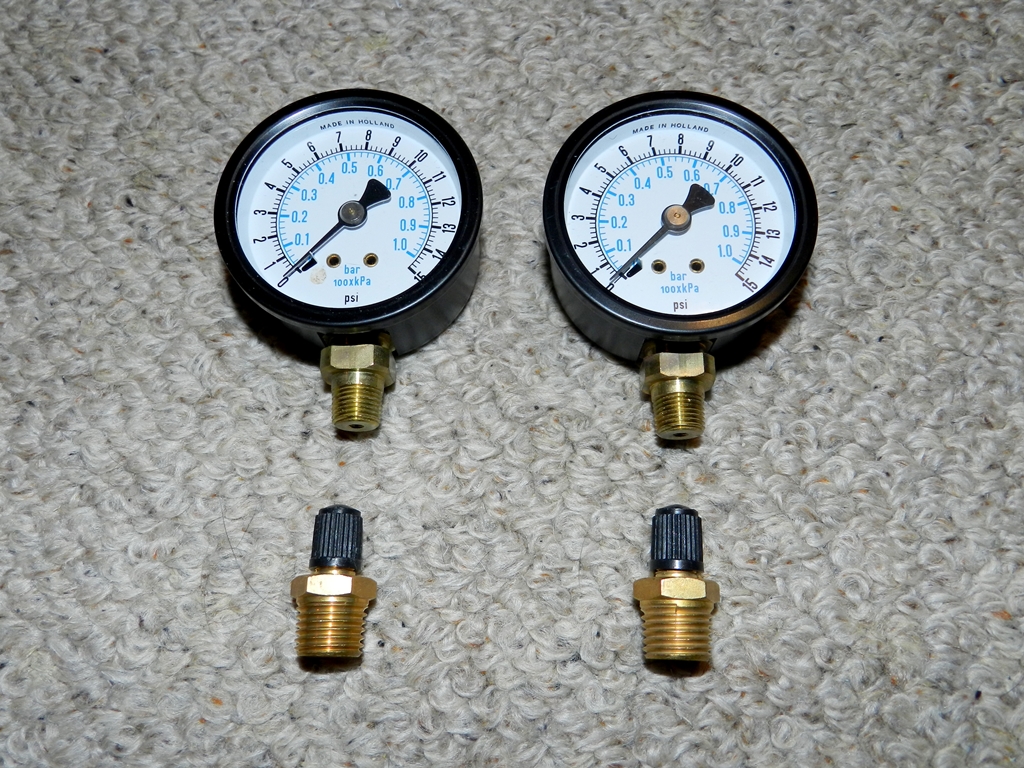

Started to get parts for my leak tester.
Going to get more parts this week for the leak tester. Start putting parts on the frame this weekend to see what I still need to buy and make. Then it will be off to the media blaster / powder coater.
Coil mount installed.
Front frame guard spacers welded.
Rear master cylinder spacers and frame guard spacer / bracket installed.
CDI bracket installed. Also breather hose mount for engine still goes up here.
Upper rear shock bushes installed.
Air-box spacers installed.
New lower steering stem bushes.
Started to get parts for my leak tester.
Going to get more parts this week for the leak tester. Start putting parts on the frame this weekend to see what I still need to buy and make. Then it will be off to the media blaster / powder coater.

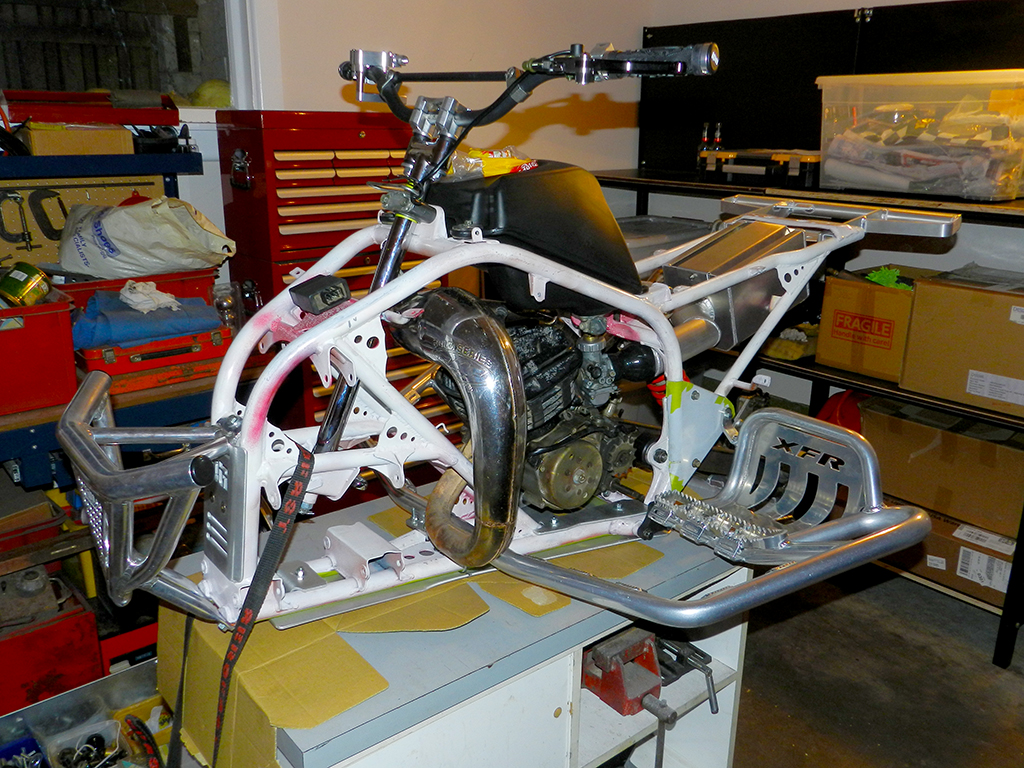

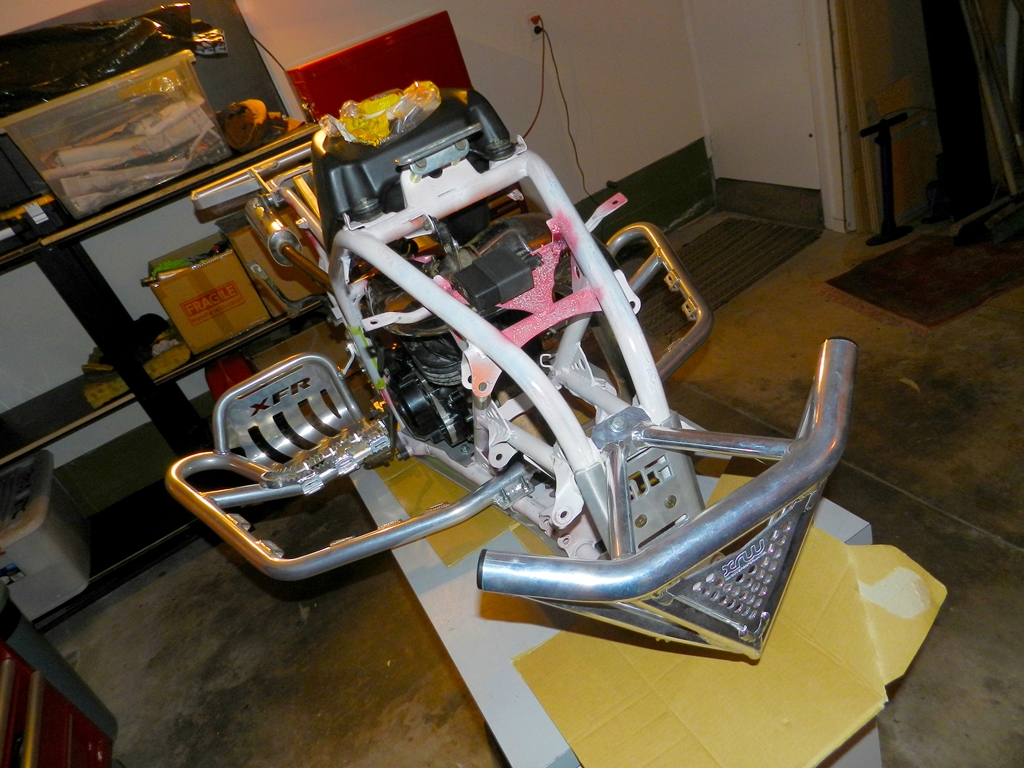

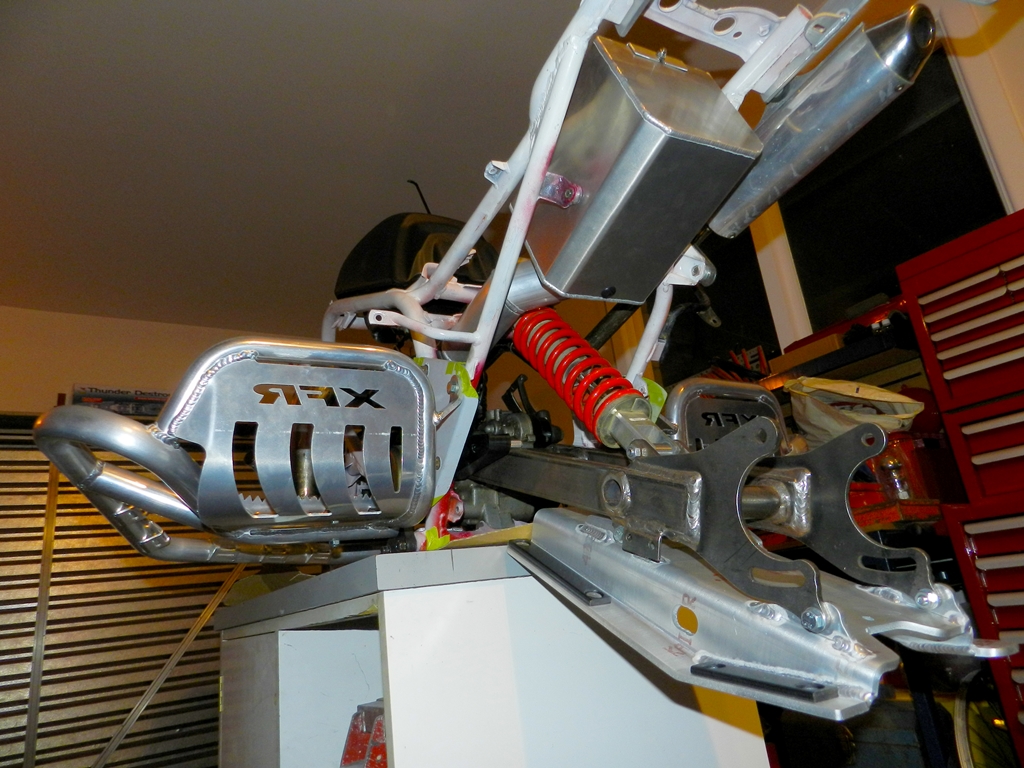

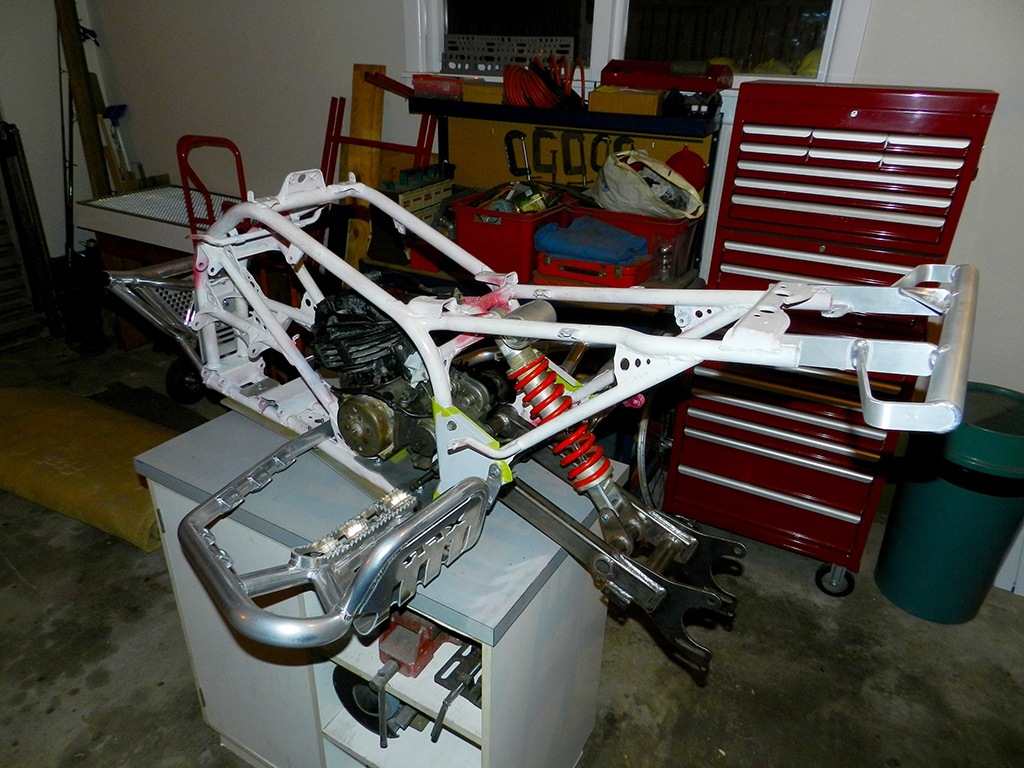

Spent a lot of today in shed putting parts a the bike and making a list of bolts, nuts, washer that I need. Get some bling ones.
This will be the last time I will be putting the bike together to make sure everything fits and that I have everything I need. Then I will be stripping it all and off to powder cost.
Tomorrow after work I will start putting parts on the front end.
This will be the last time I will be putting the bike together to make sure everything fits and that I have everything I need. Then I will be stripping it all and off to powder cost.
Tomorrow after work I will start putting parts on the front end.

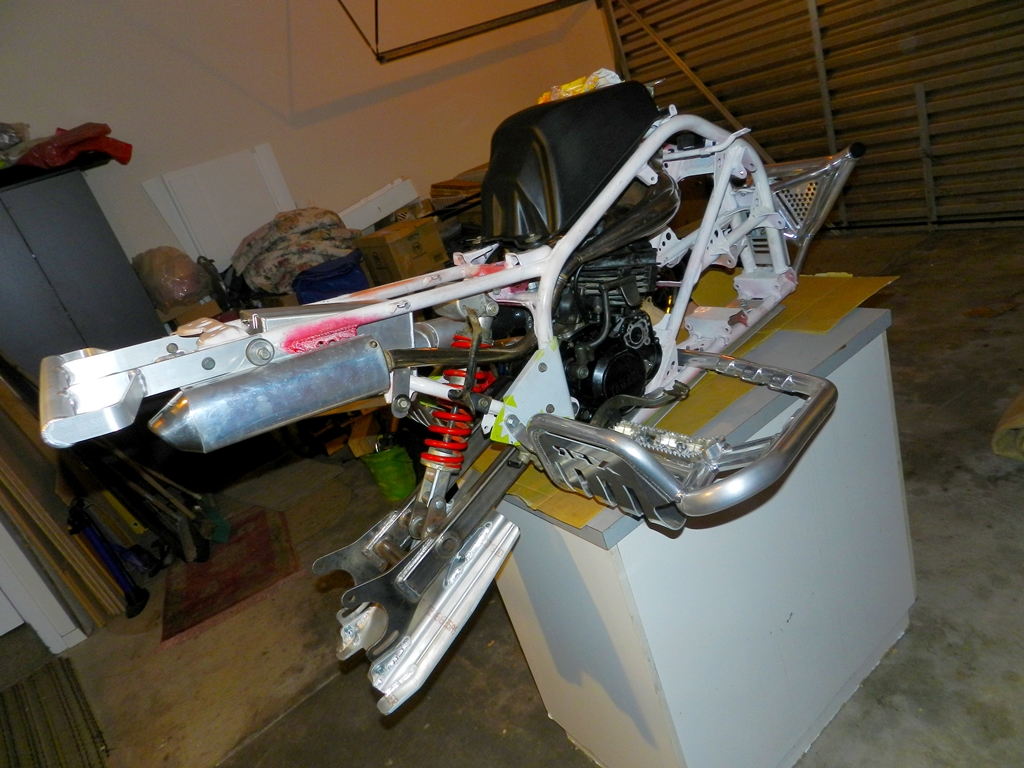

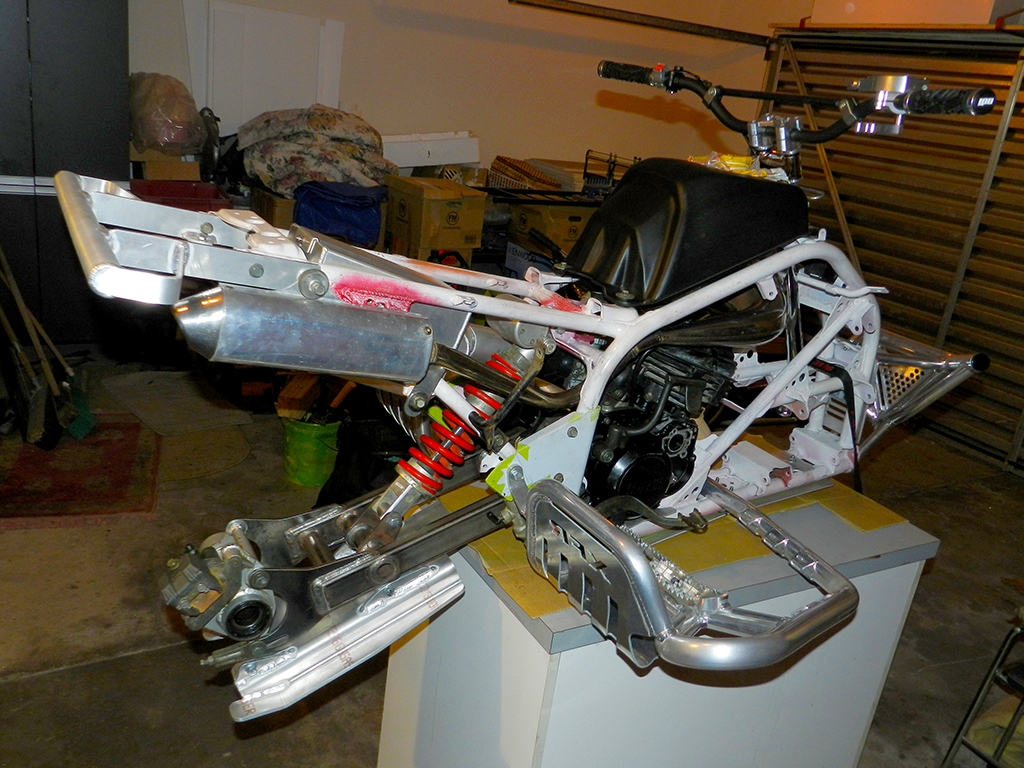

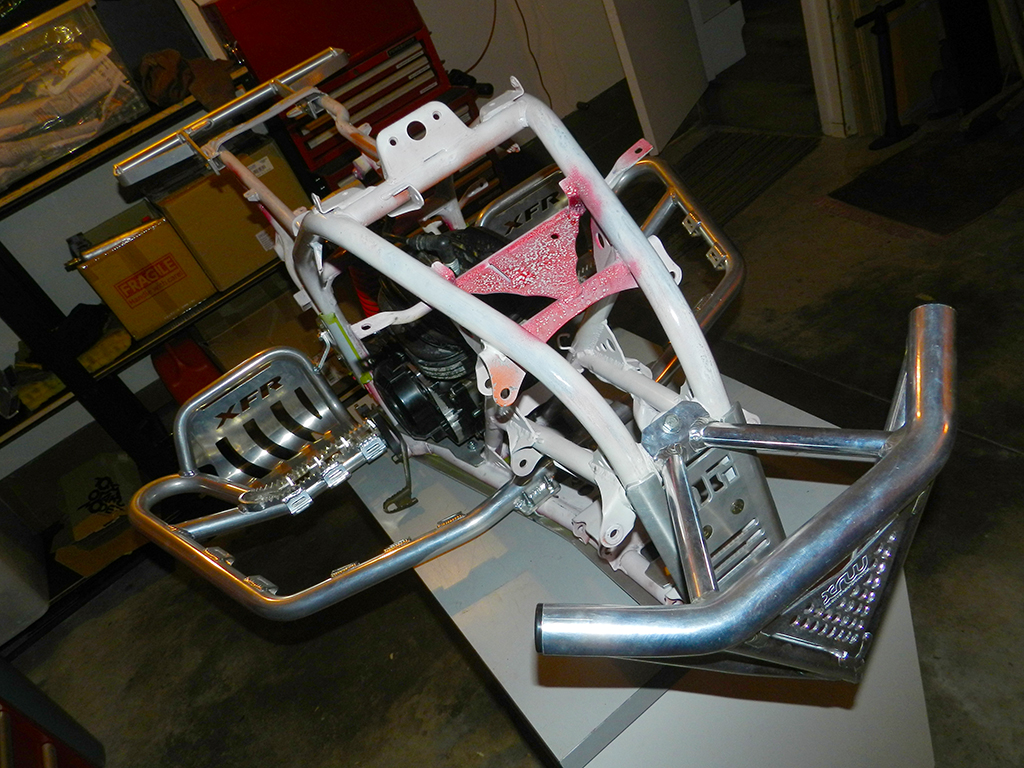

Got more done on it tonight. Do more tomorrow after work. Love working on my blaster.
Found out I need a spacer for on the silencer.
Found out I need a spacer for on the silencer.
All this work and an FMF!?! duuuude you know a CT or Dynoport would be nasty!
I will just leave these here.....
http://ctracing.net/site/atv-performance/yamaha-2/blaster-200/
http://dynoport.com/200_Blaster_1988-2006.php
wink, wink!
I will just leave these here.....
http://ctracing.net/site/atv-performance/yamaha-2/blaster-200/
http://dynoport.com/200_Blaster_1988-2006.php
wink, wink!
Got a little more done after work tonight.
Rear grab bar bracket for number plate. Still needs bend in it.
Spacer for silencer.

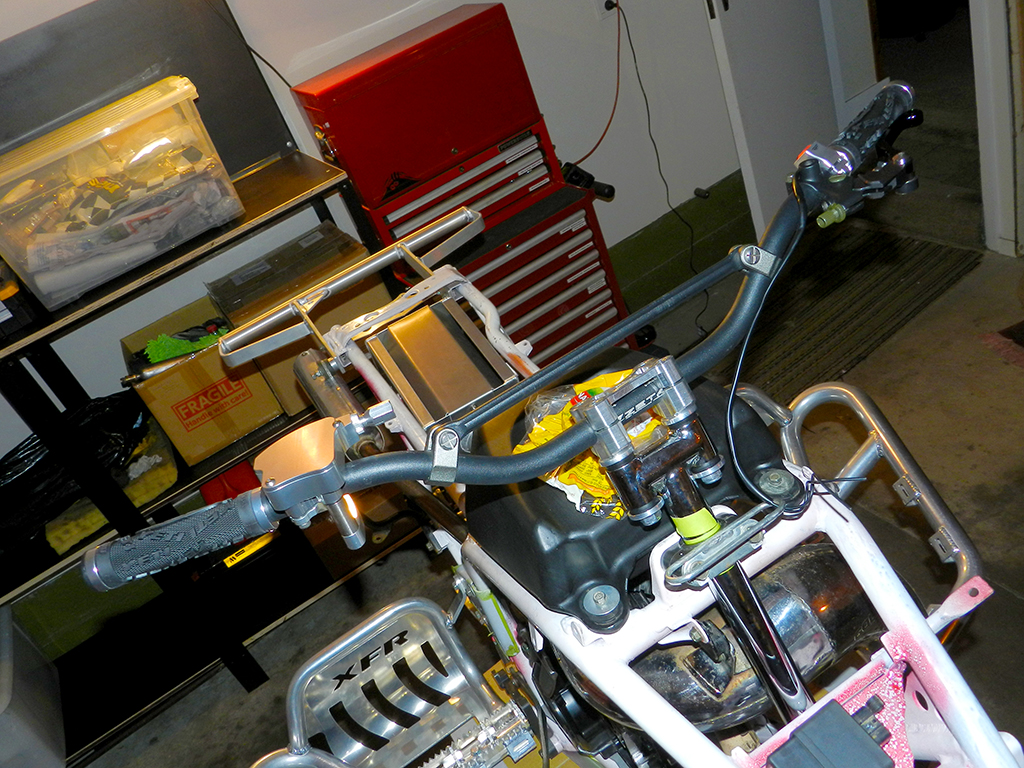

And I installed this only to find my handle bars are to short. Clutch side is fine but the throttle side is not. The brake lever ends up mounting on the bend. . So I have 2 options: Option 1: buy new handle bars (Long ones) or option 2: buy shorter hand grips.
Rear grab bar bracket for number plate. Still needs bend in it.
Spacer for silencer.
And I installed this only to find my handle bars are to short.
Clutch side is fine but the throttle side is not. The brake lever ends up mounting on the bend. . So I have 2 options: Option 1: buy new handle bars (Long ones) or option 2: buy shorter hand grips.
