Just can't figure it out

[blasterdude14]

well guys i give up i just dont know whats wrong. its something with the electrical i am thinking ignition coil but not sure.

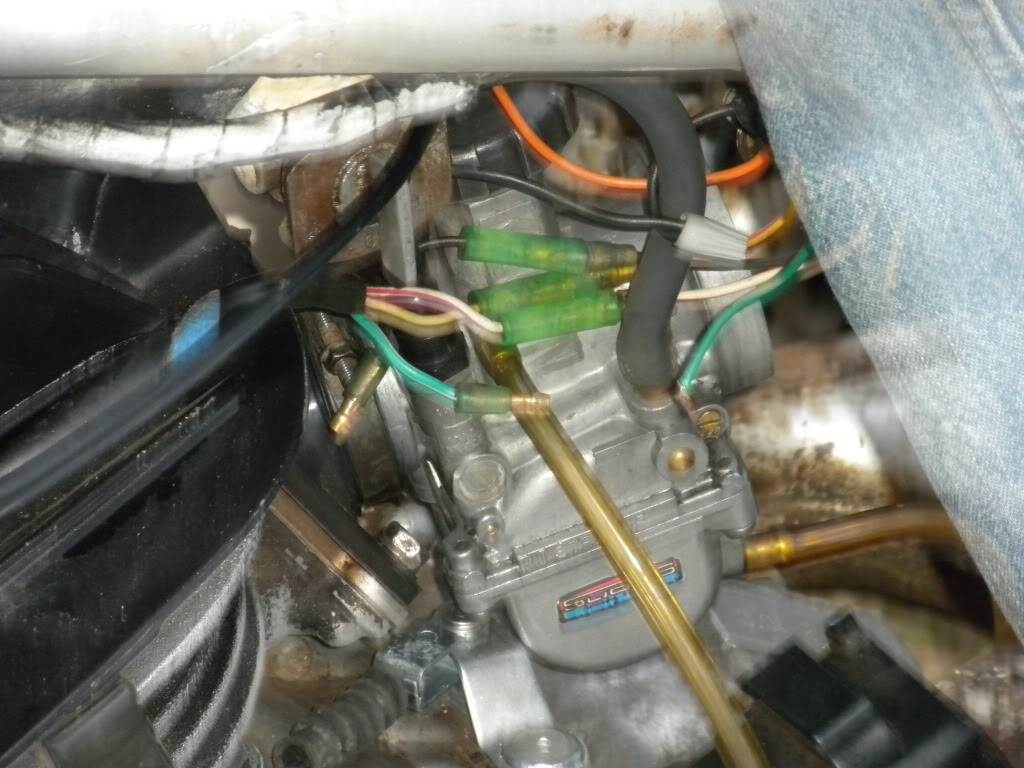

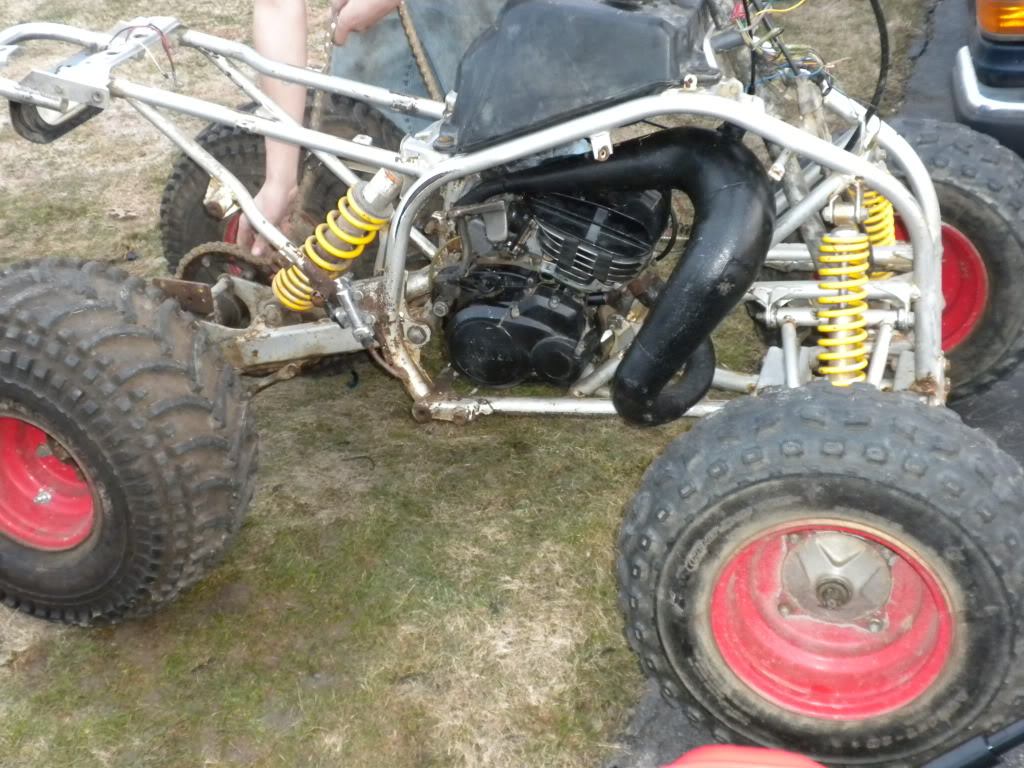

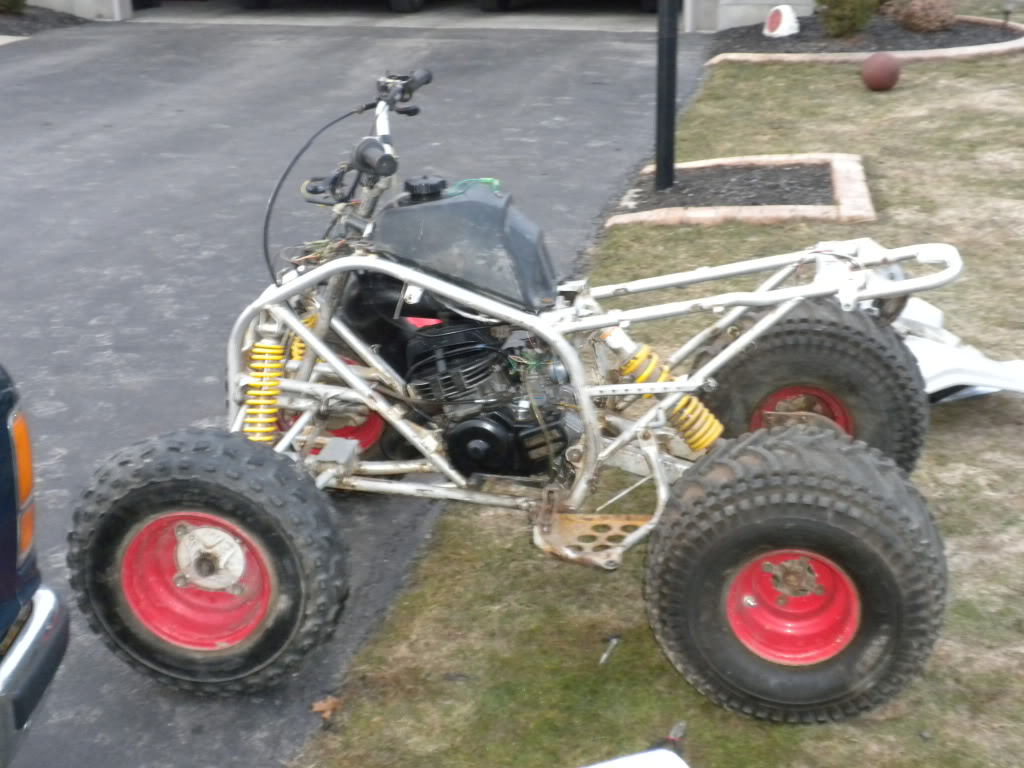

anyways here are some pics of the wires and how the bike sits now.
I can't seem to find where some wires connect to



[blasterfreek30]

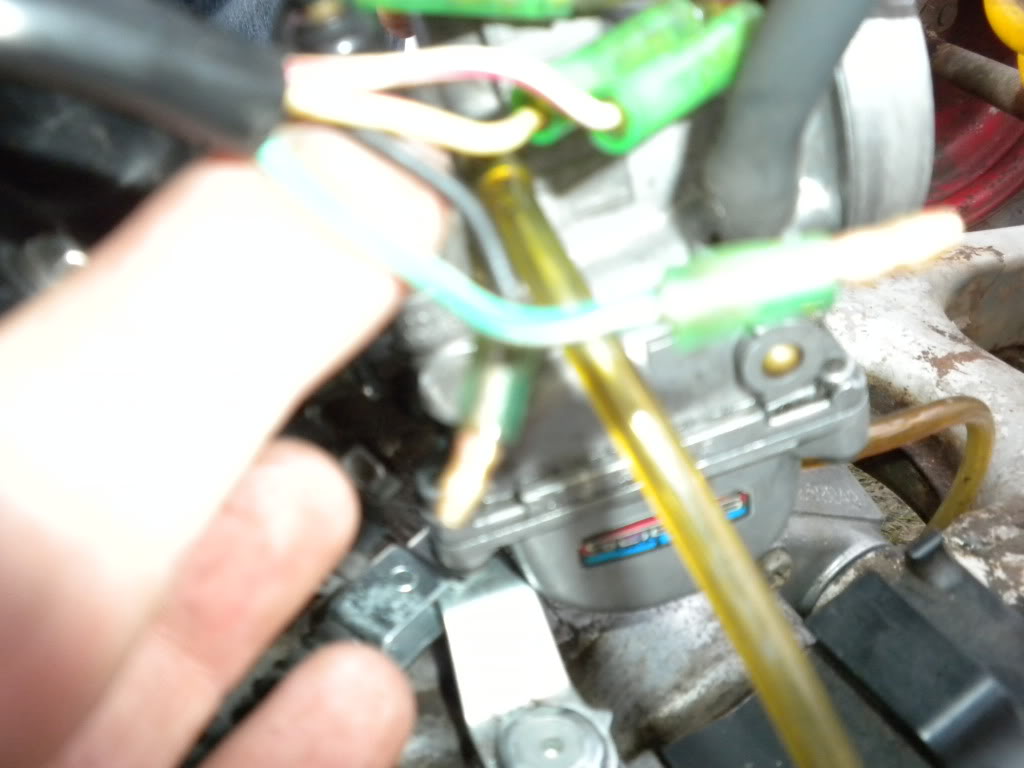

hey bro in that 2nd to last pic....it looks like the bottom black/red wire is connected to the black/white wire.....and the black/white right next to it, is hooked into the black/red on the top, could be ur problem there



[blasterdude14]

Thanks freek that might be it ill have to check tomorrow and see if they are connected right
What about the other wires?



[stephen12091985]

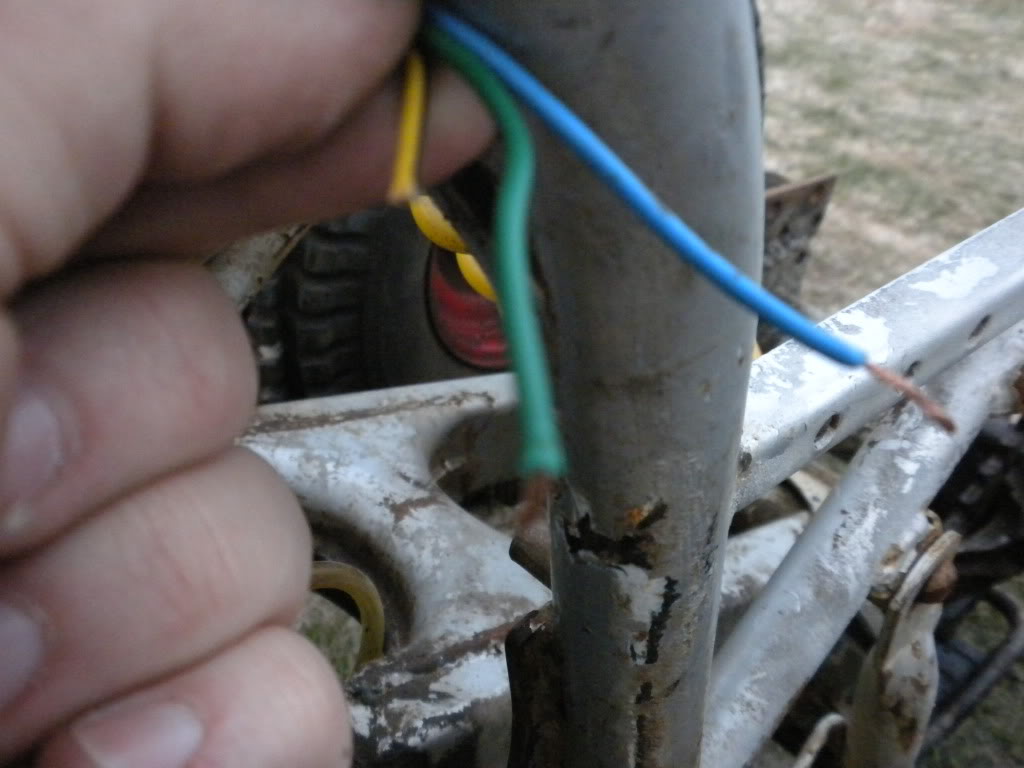

if you have an extra green wire from your stator you are susposse to ground it.and i tihnk the blue wire in the first couple pics could possibly be to th voltage reg.



[blasterdude14]

well i printed up a schematic of the wiring system and it did say that it goes to the voltage regulator, i looked and saw a blue wire leading away from there but its cut as you can see in the pic



[blasterfreek30]

yea yellow and green is ur headlights and the blue is the voltage regulator....as stephy said



[blasterdude14]

ok but they are cut down by the motor so what do i do?



[brandoz28]

run new wires bro!



[blasterdude14]

run new wires bro!

im broke lol .



[blasterfreek30]

im broke lol .

cutup an old extension cord and get the wires outta it and use them to run new wires to the broken ones



[blasterdude14]

I dont know about that freek dont think i would trust it



[brandoz28]

or you can bum like 5-10 bucks tops from your mom and dad to go buy a little roll of wire and some butt connectors



[blasterfreek30]

I dont know about that freek dont think i would trust it

why not, the 3 wires in extension cord is a heavier guage wire than the stock ones anyway, and its free lol



[blasterdude14]

lol true maybe ill just save up whatever money i can get and buy a whole new wiring harness



[DUALSTROKE]

The blue wire down by the motor is for the rear tail light.The blue wire under the hood is already tied into the yellow/red which comes from the stator.



[DUALSTROKE]

The blue wire you have by the motor originates from the lights/dimmer switch.



[blasterdude14]

ok so i should be able to cut that wire straight off then



[DUALSTROKE]

yes you should be able to get rid of it.Until you get it running I would just tape it off and forget about it for now.Once everything is up and working fine then you can safely cut out all unused wires.



[blasterdude14]

Ok with that in mind the problem is getting it started, I know the motor itself is fine because it was rebuilt and gone through while at kennedys so its not that.



[stephen12091985]

i wish i would took all the wires off i didnt need on mine while it was apart
