crankcase does not have a gasket. it is sealed with a small amount of sealant
the clutch cover uses a gasket
How To Install Oil Injection Block Off Kit
- Thread starter 01blaster_freak
- Start date
the clutch cover uses a gasket
you have to remove the whole clutch cover to get to the gear, there's a small c-clip and pin to remove, then the white gear just slides off the pump shaft.
more info and pics here.......
http://www.blasterforum.com/threads/injector-block-off-clean-for-3.31229/#post-370189
Done the oil injector delete today. Some photos.

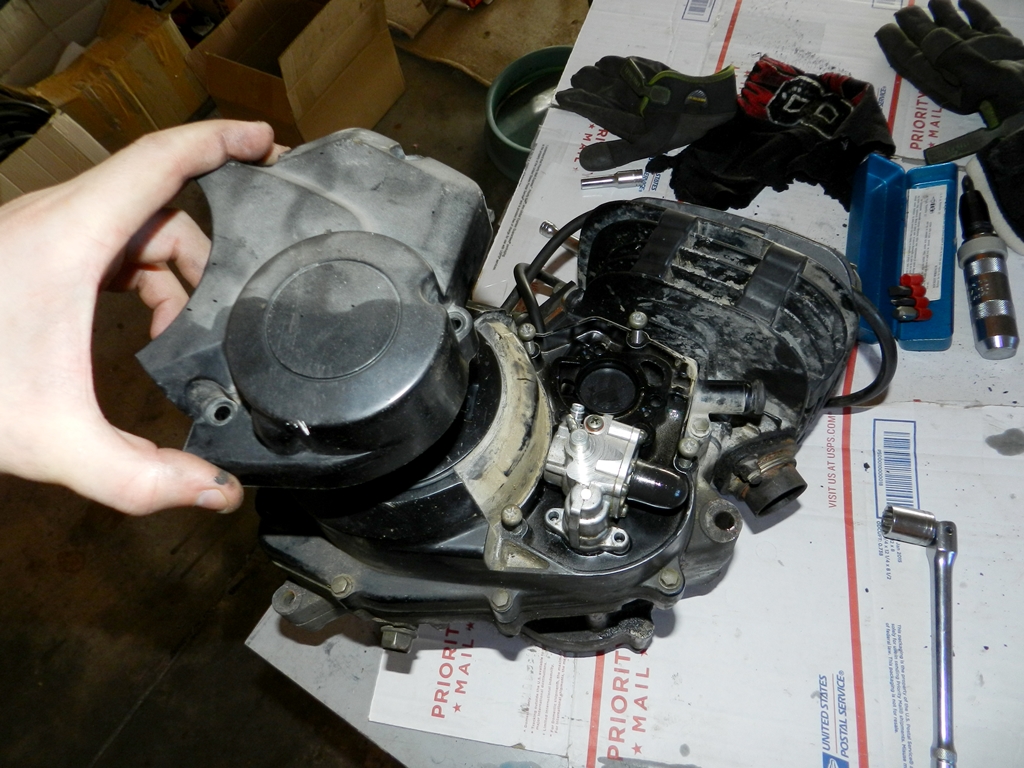

Remove oil injector cover. 4 bolts.

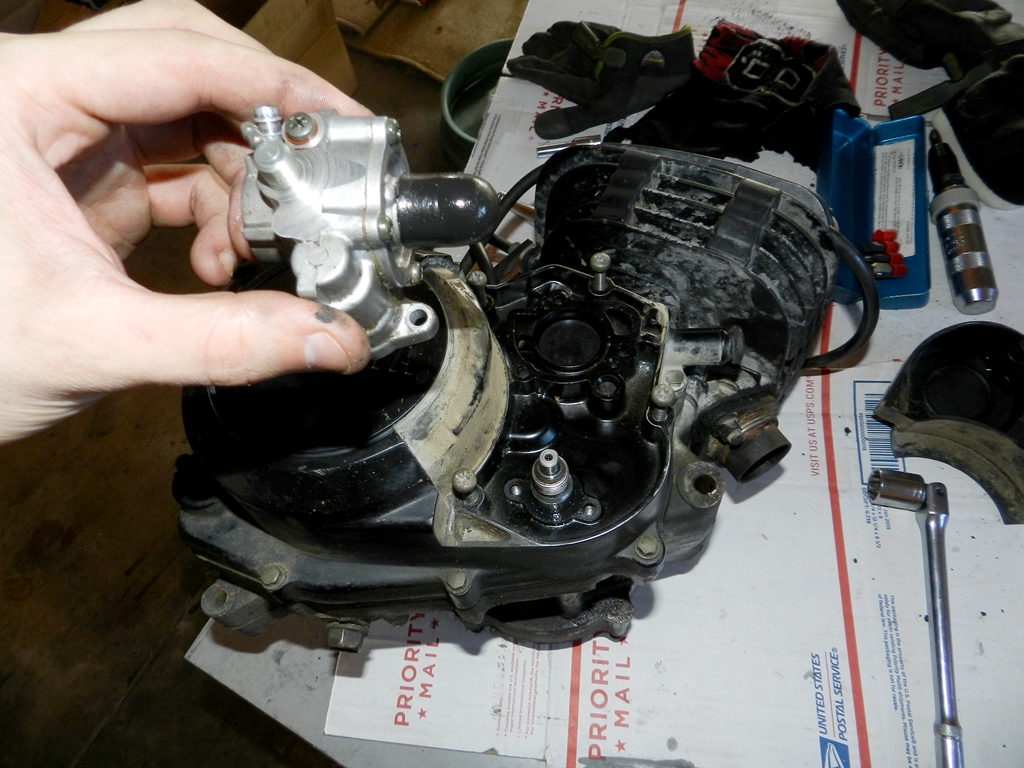

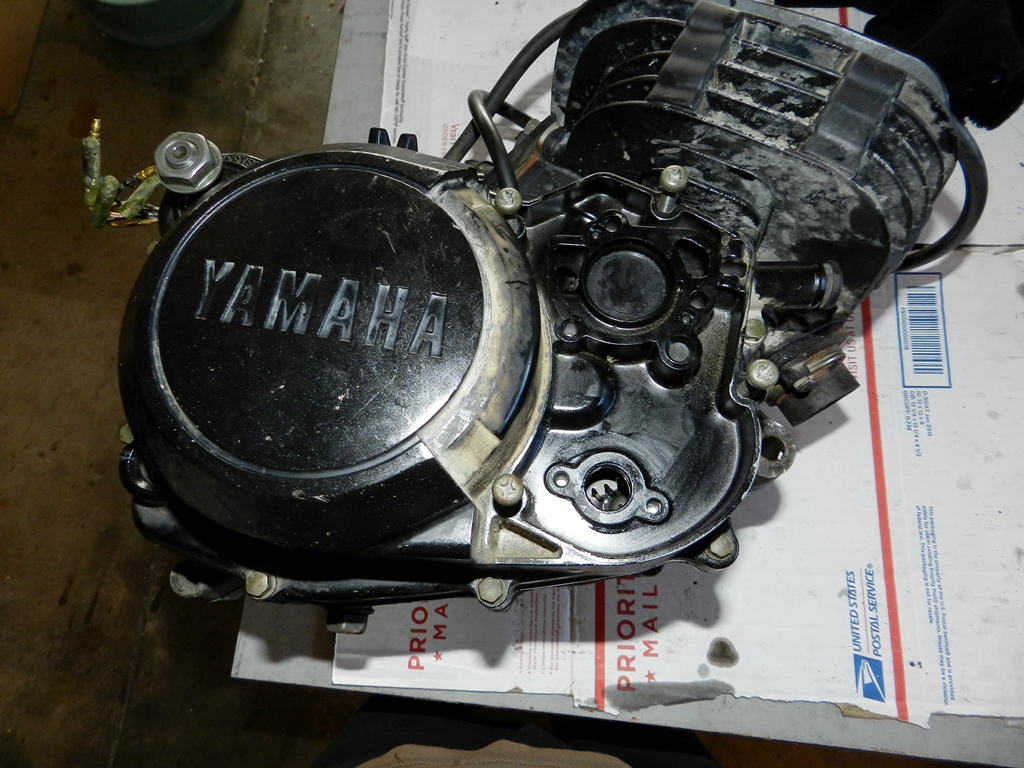

Remove the pump and the 2 hoses going to it. 2 bolts.
Remove the kick starter. 1 nut.

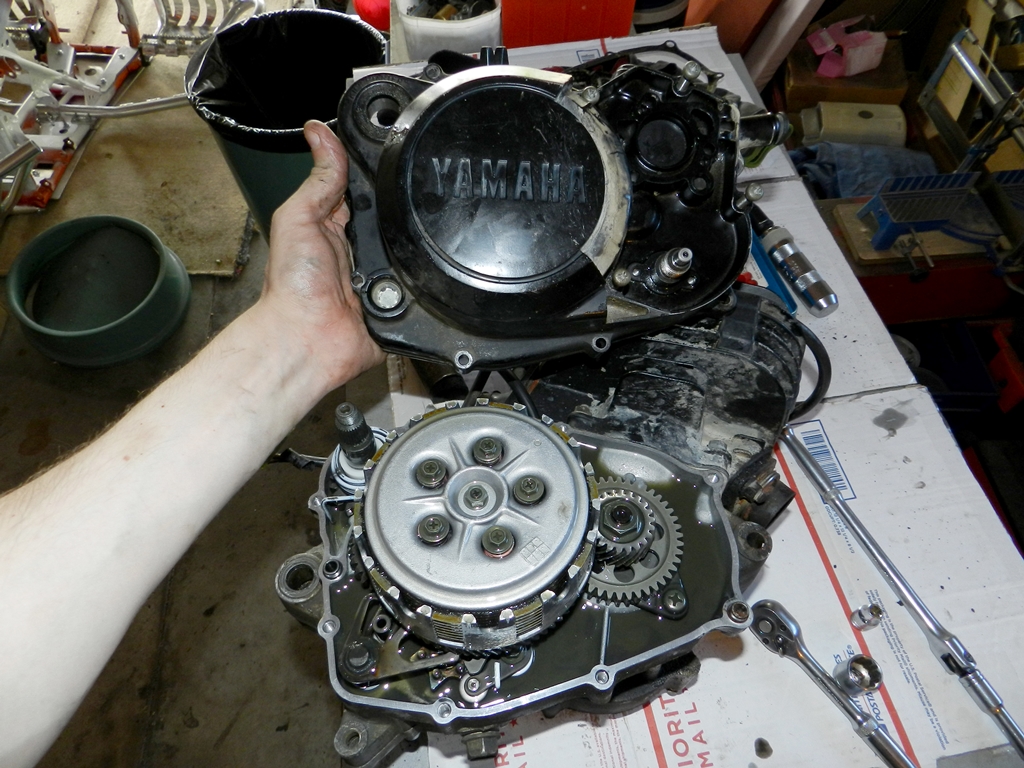

Remove the engine cover. 8 bolts. Watch out for the kick starter spring it may pop out of its hole, Is easy to put it back.

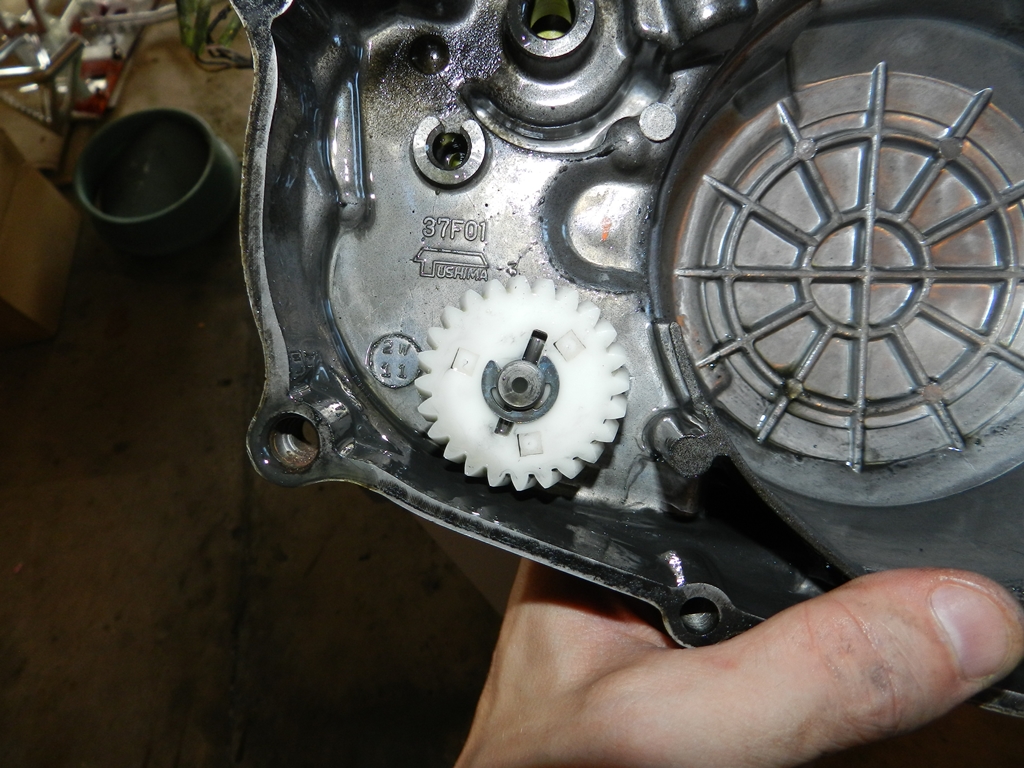

Remove the C-clip, white gear, steel pin, C-clip, shaft, seal and the gasket.
All removed.
Install the engine cover back on. New gasket.

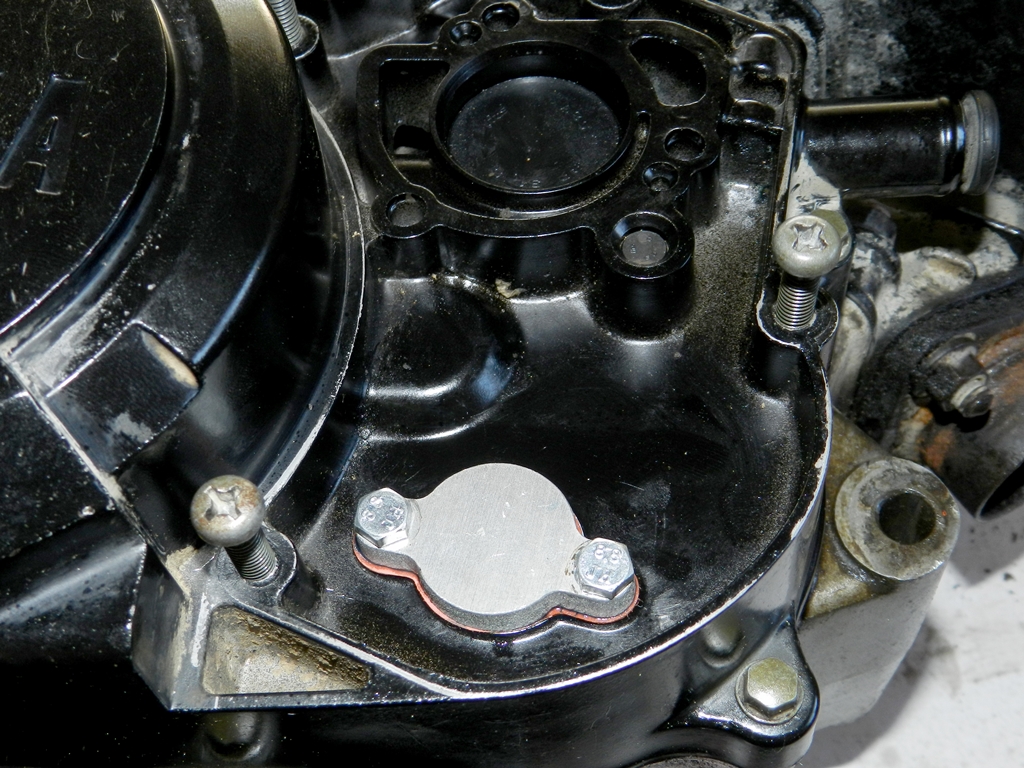

Install oil block off using new gasket and bolts. Use loctite on the 2 bolts.

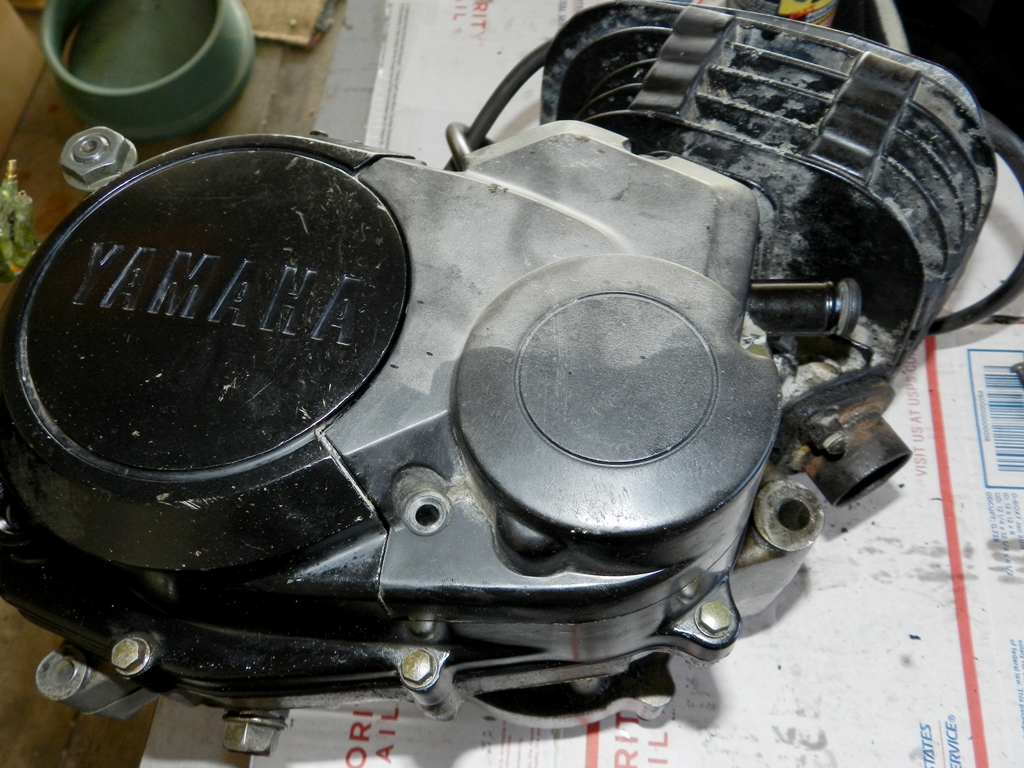

Install the oil injector cover back on and put new oil in your engine. I didn't bolt it as I'm waiting on my aluminum cover to replace the plastic one.
Remove oil injector cover. 4 bolts.
Remove the pump and the 2 hoses going to it. 2 bolts.
Remove the kick starter. 1 nut.
Remove the engine cover. 8 bolts. Watch out for the kick starter spring it may pop out of its hole, Is easy to put it back.
Remove the C-clip, white gear, steel pin, C-clip, shaft, seal and the gasket.
All removed.
Install the engine cover back on. New gasket.
Install oil block off using new gasket and bolts. Use loctite on the 2 bolts.
Install the oil injector cover back on and put new oil in your engine. I didn't bolt it as I'm waiting on my aluminum cover to replace the plastic one.
