Custom Aluminum Kickstarter!

[KTM RACING 559]

Im sick of the ugly a$$, heavy steel blaster kickstarter LOL, so I'm fabbin up an aluminum one. Using the original lower steel splines and shaft pivot for now. Lower portion of the alum. Kick assembly is 1" thick billet. And the upper kick pedal is 3/8" 6061 T-6 plate cut out with a plasma torch. Here's what I got sofar.

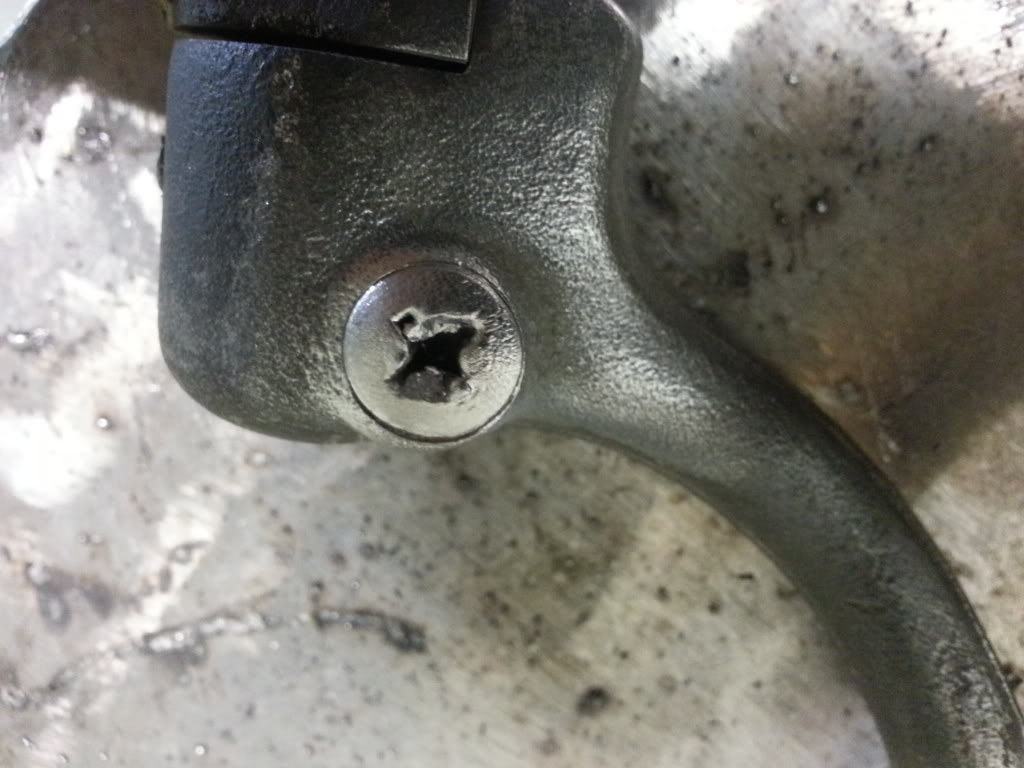

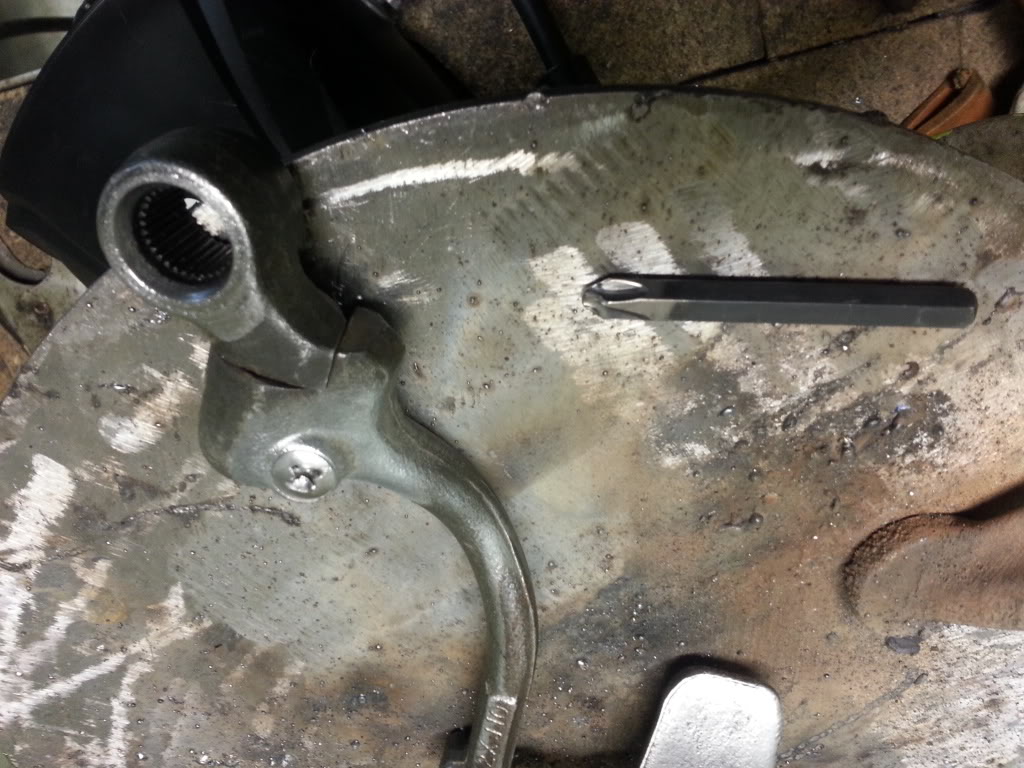

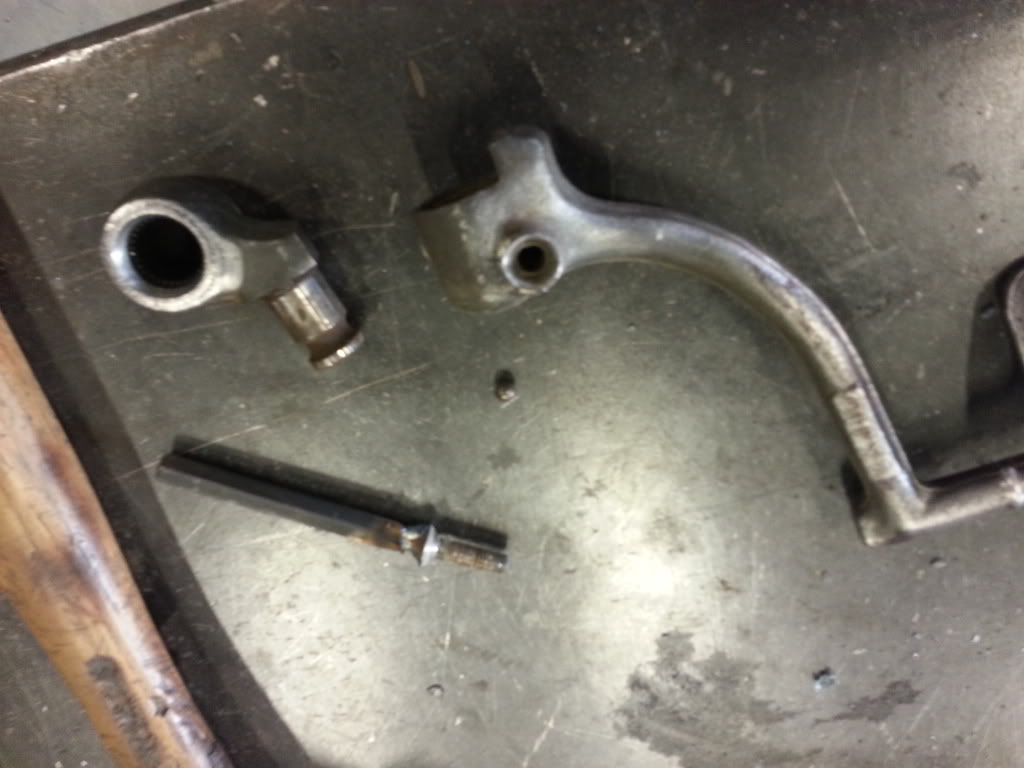

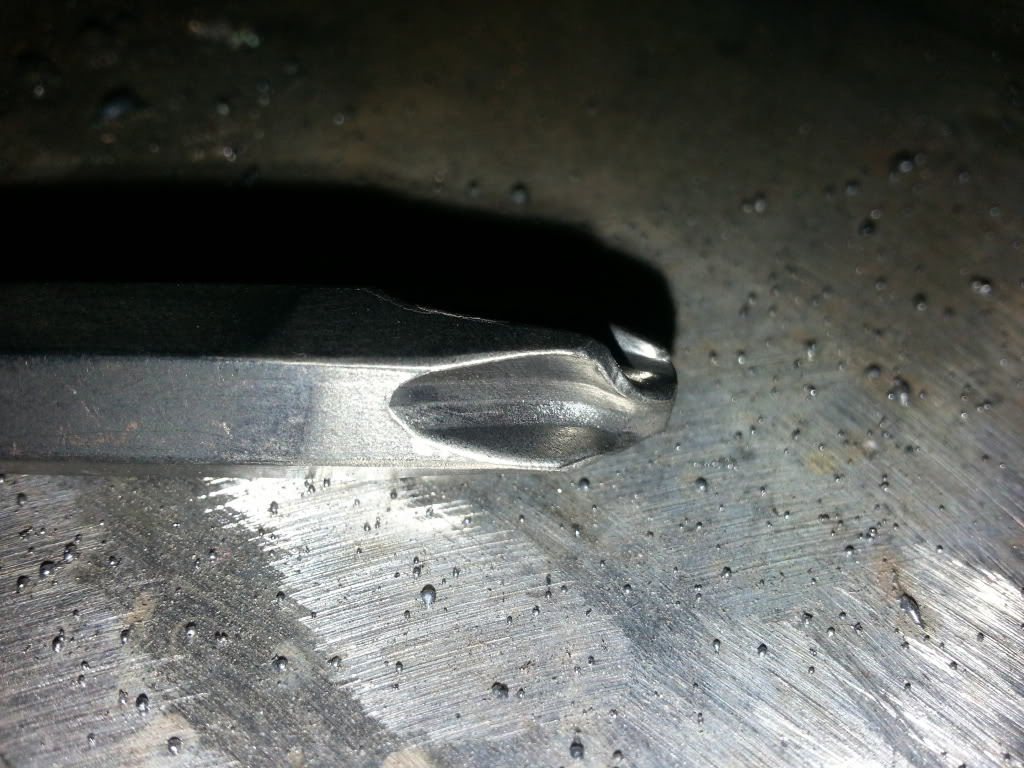

Used an impact screwdriver to remove the retainer screw, but it ended up stripping out the phillips bit and the screw, so I jus welded the bit to the screw and it came right out with no other problemsI:I

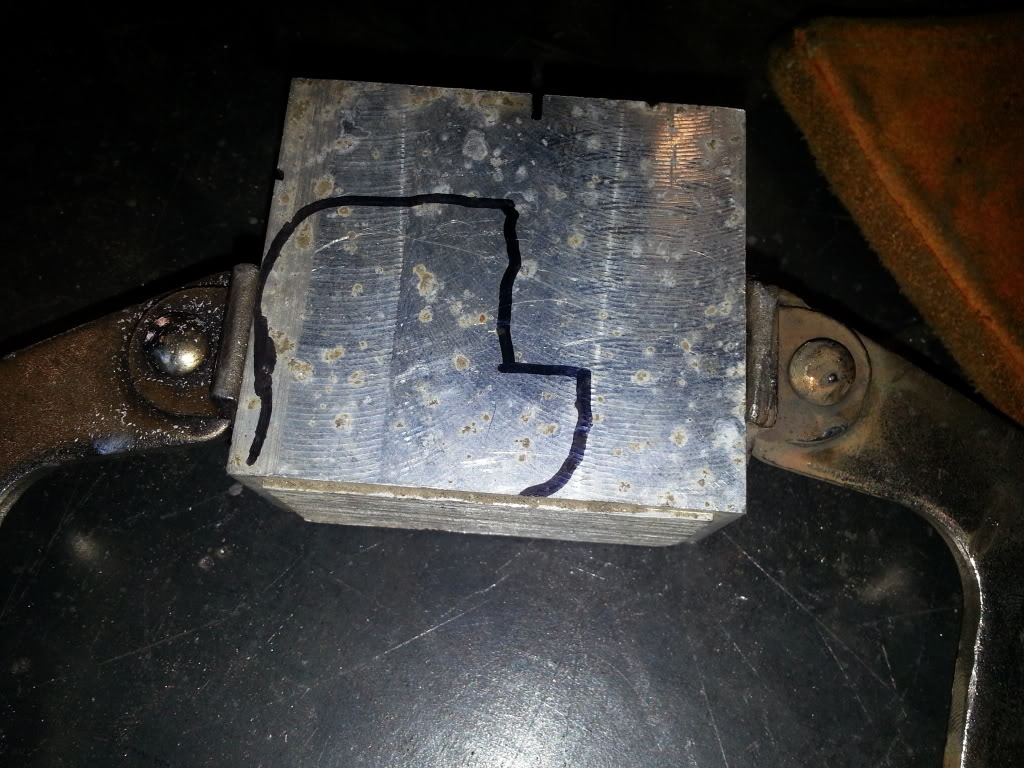

With that issue out of the way, I started cutting out the 1" piece of billet aluminum.

Cuttin it out on the vertical band saw.

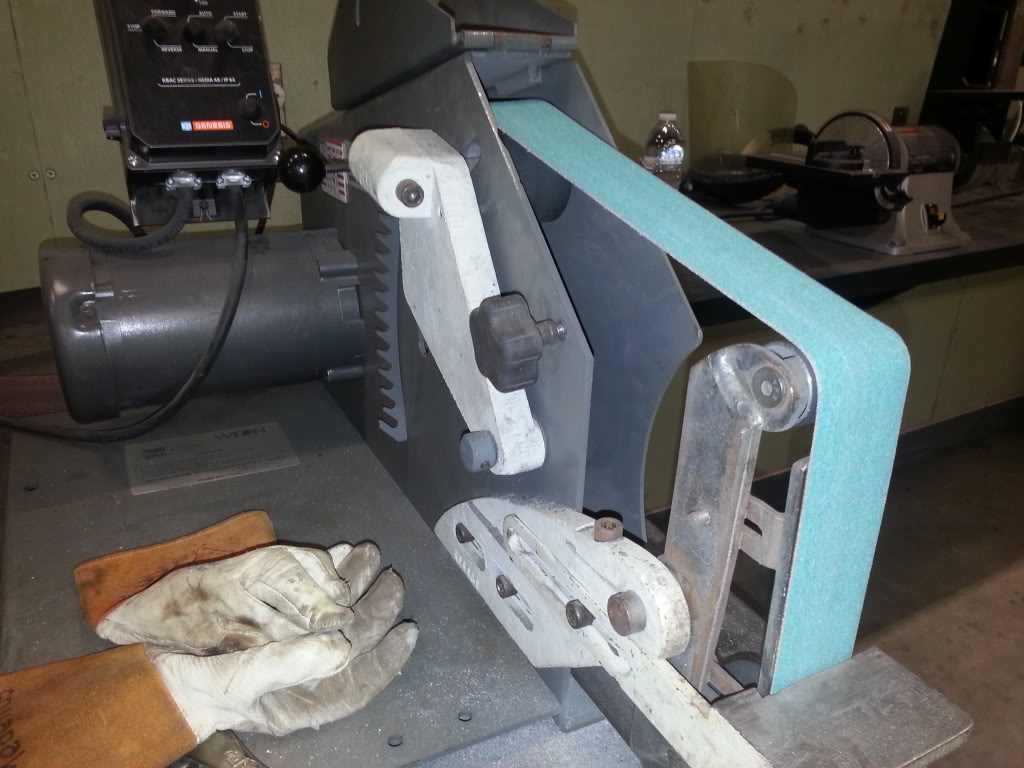

All done with cutting, now time to shape it and remove some material on the belt sander.



[KTM RACING 559]

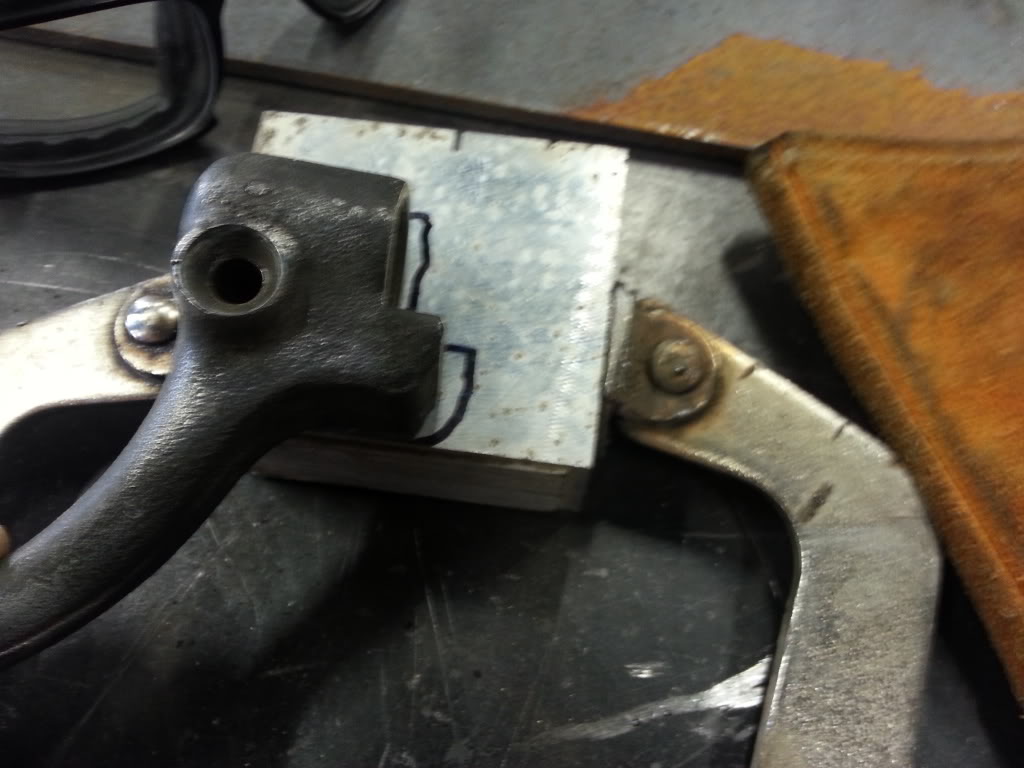

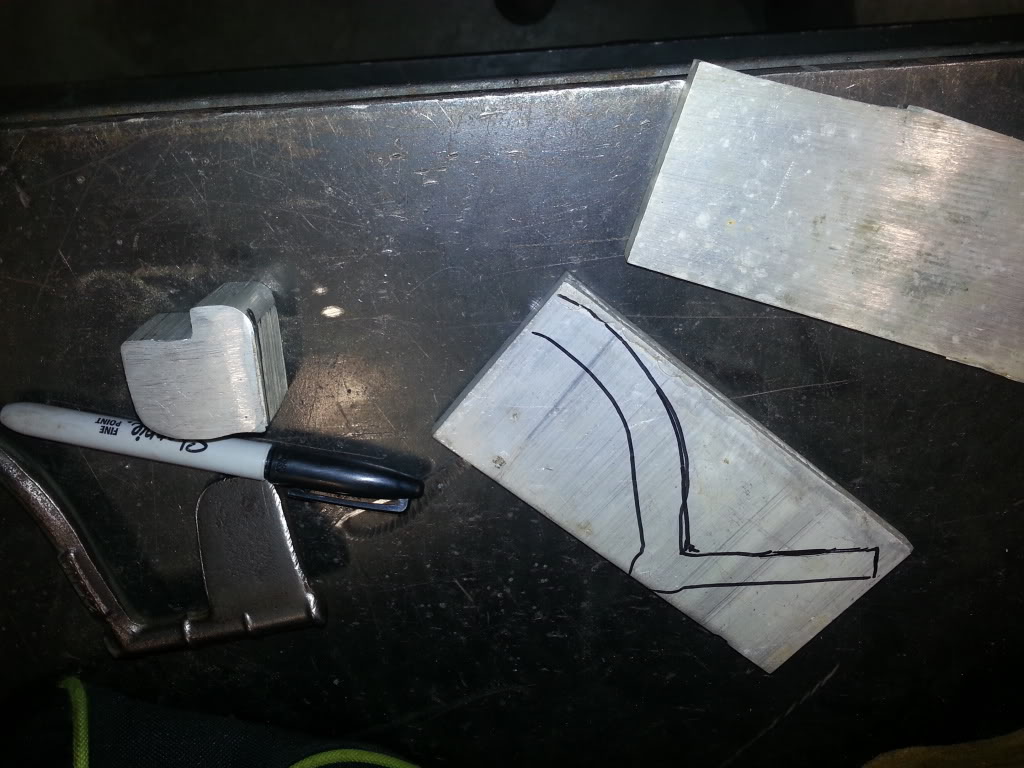

Tracing out the shape of the upper portion of the kickstart assembly to be cut out with a plasma cutter.

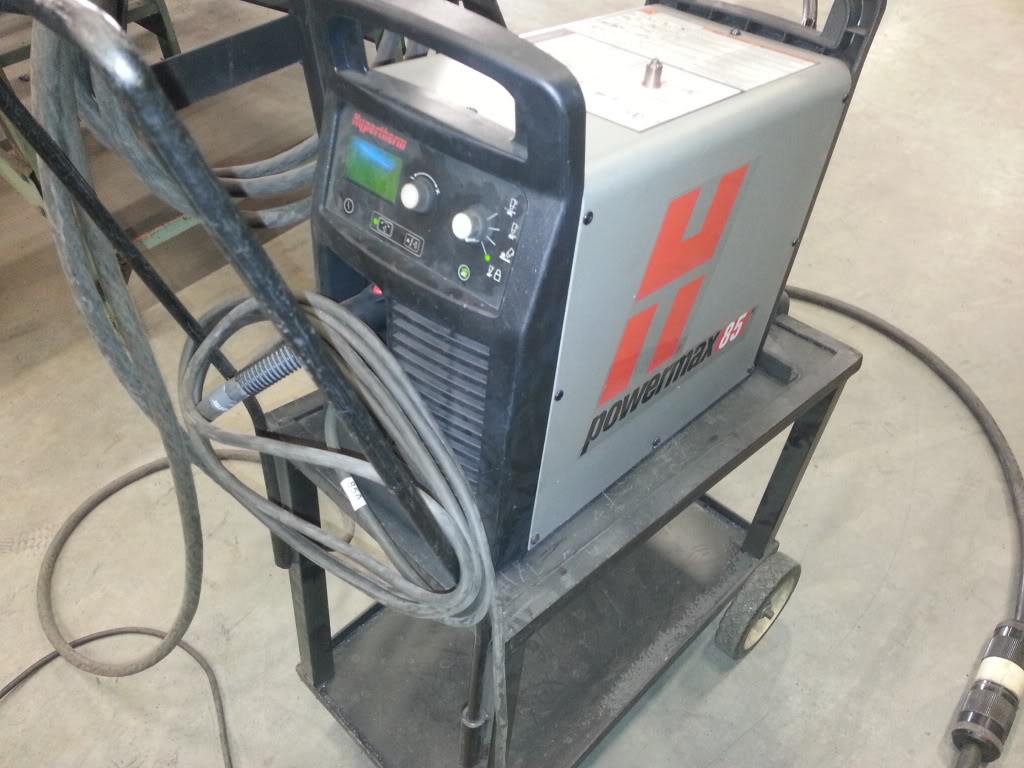

Time to fire up the ol plasma lol

All cut out, and both pieces ready to smooth out on the belt sander.



[KTM RACING 559]

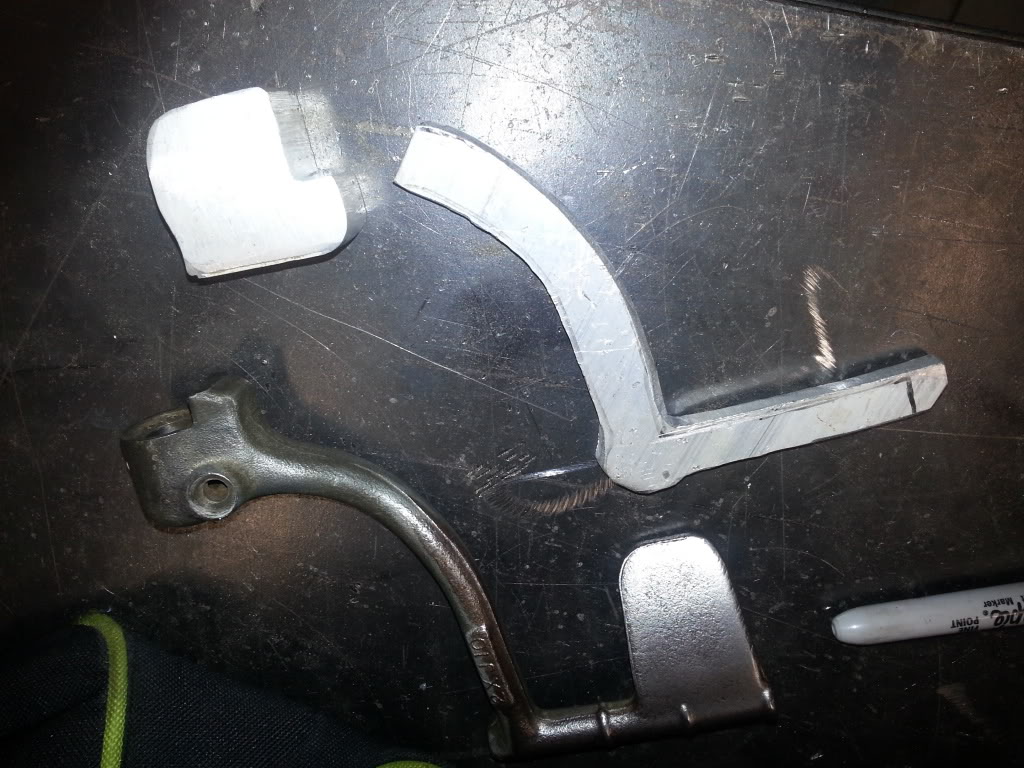

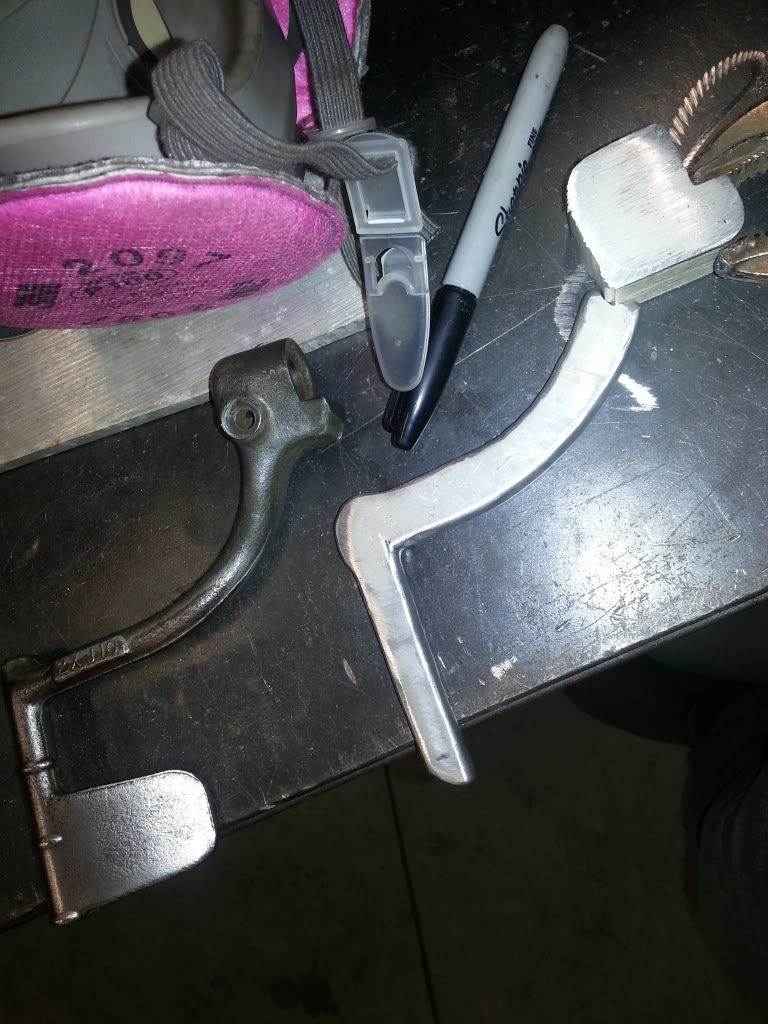

Quick comparison of the steel one to the "soon to be" aluminum one lol

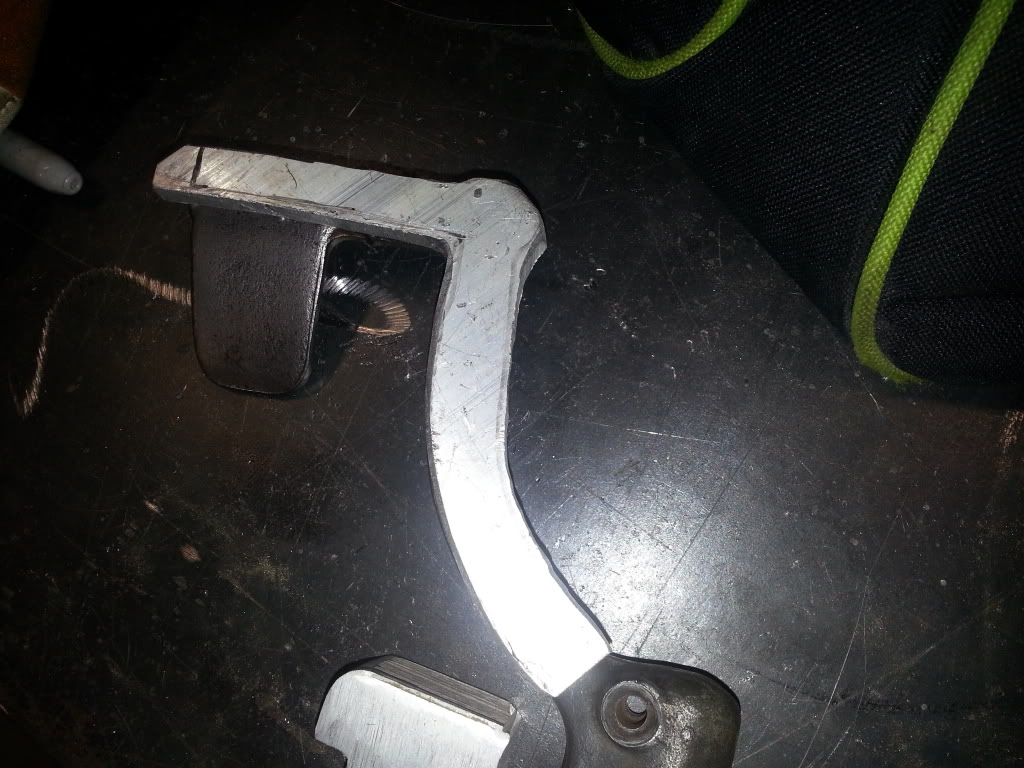

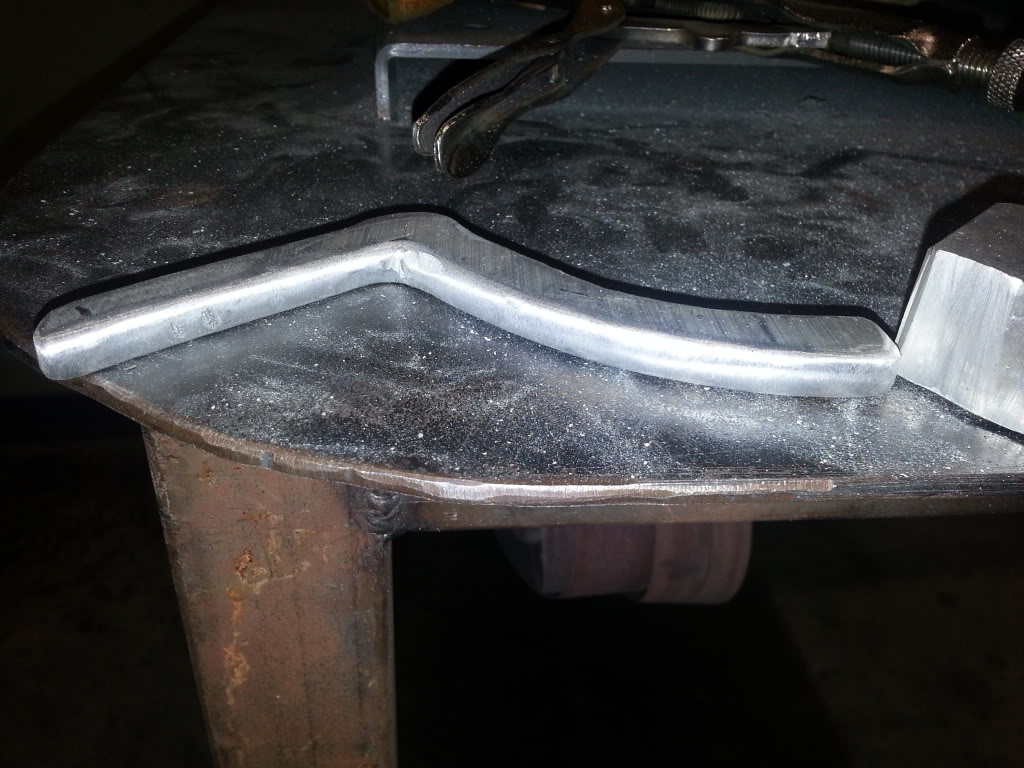

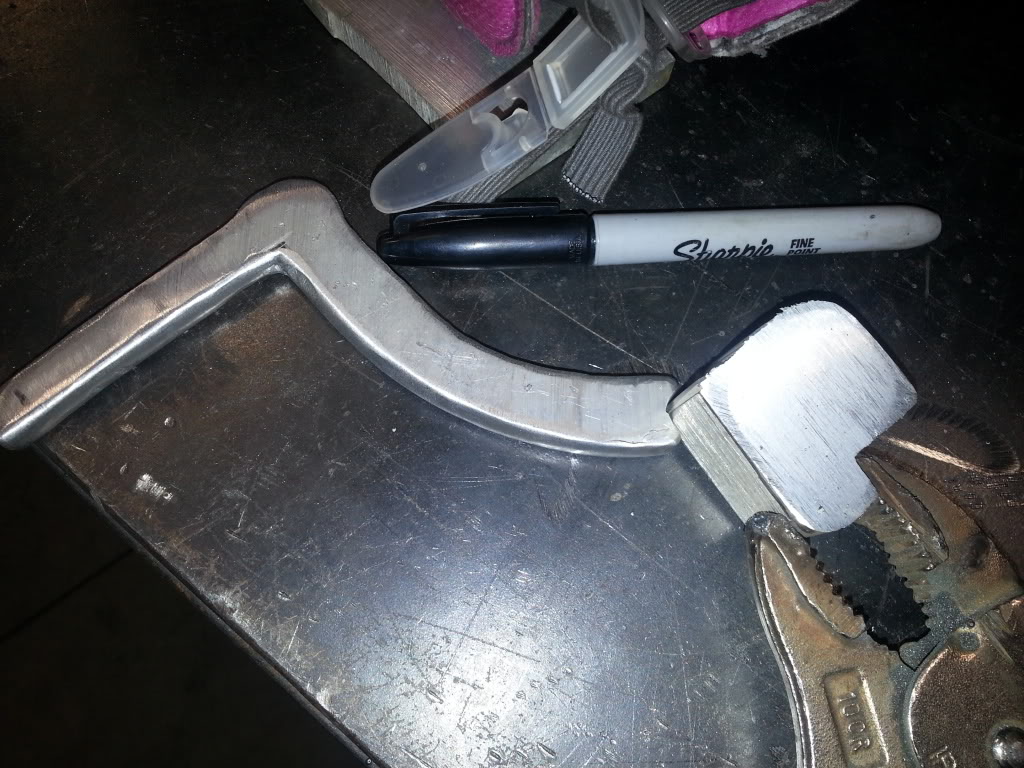

After smoothing on the belt sander.



[KTM RACING 559]

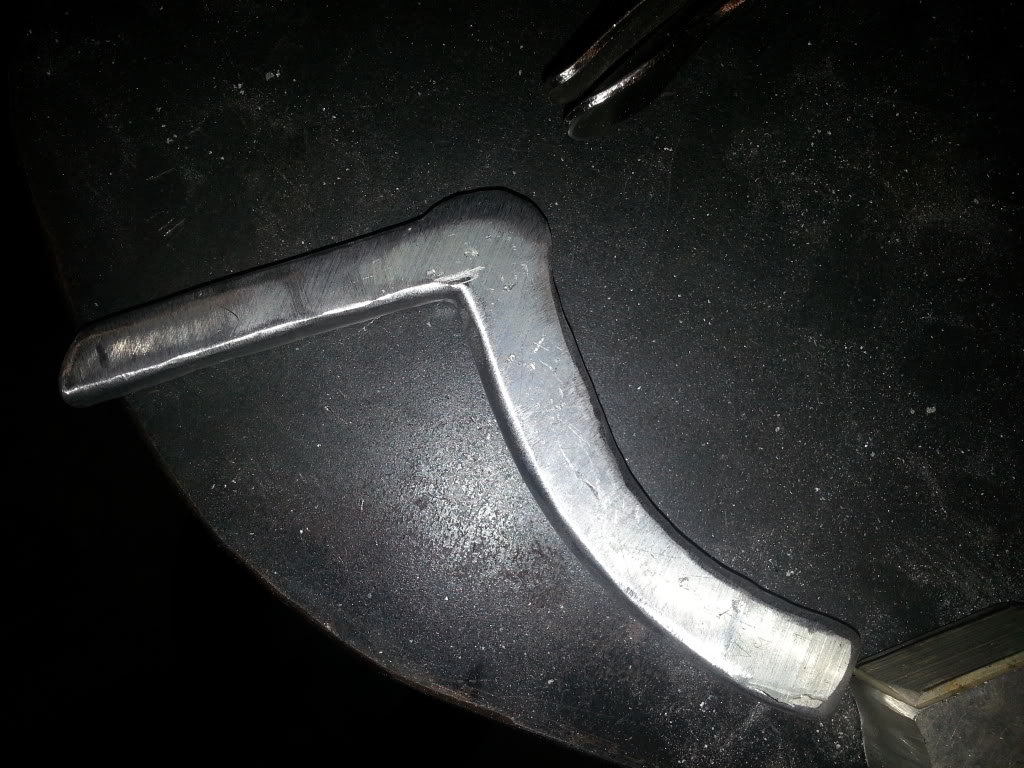

Made a notch in the bottom of the kicker, so when the time comes to weld it up, it ill have a nice fit up.I:I

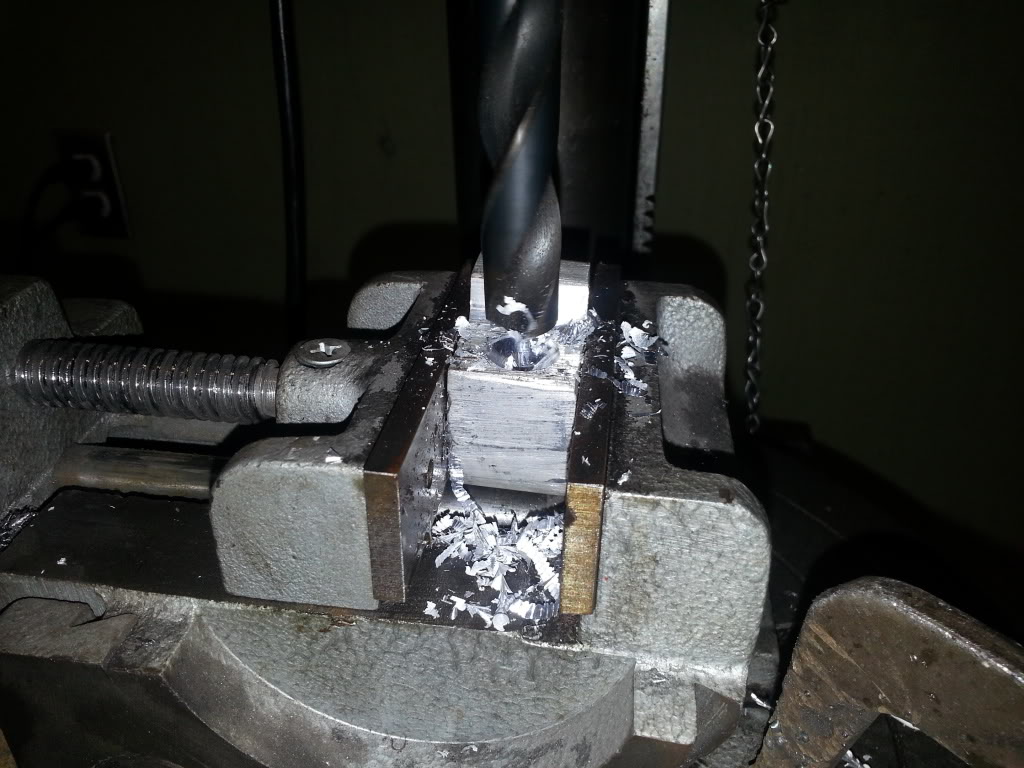

Time to drill out the hole for the steel pivot shaft.



[KTM RACING 559]

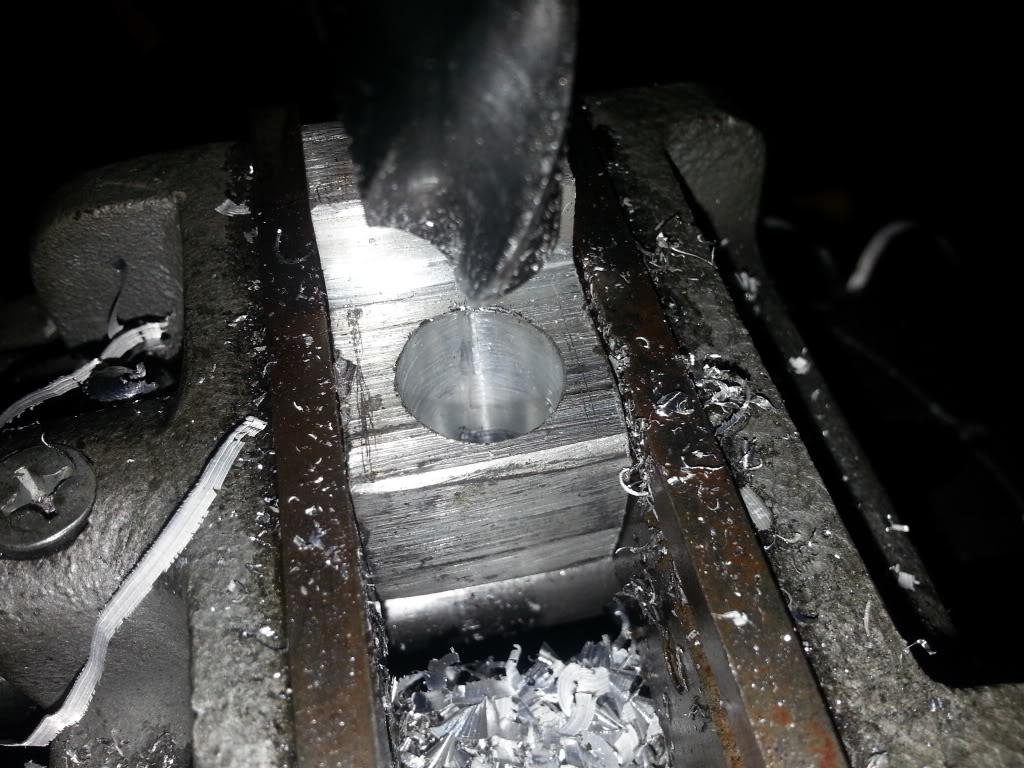

The hole is all drilled out, about 1 inch of depth.

That's all I have done for now, more pics and progress maybe tommorow, but definatly by next week!

Here's a "sneak preview" of the stainless stator cover I'm gonna make. Lol

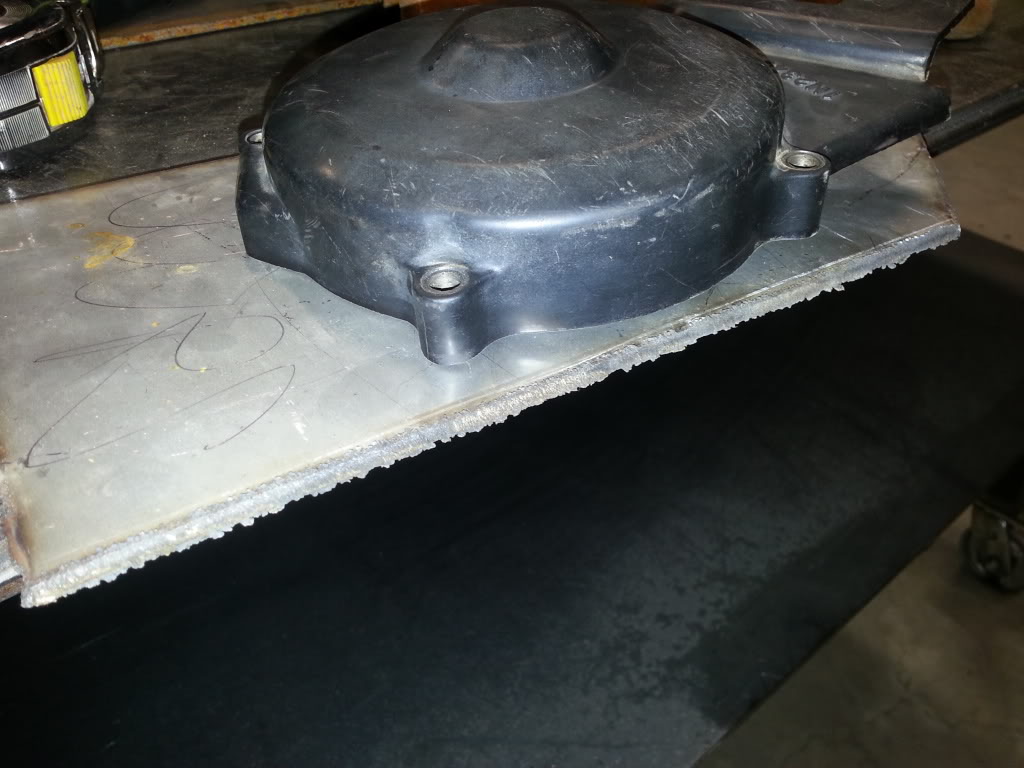

Basically nothing done yet, but jus bearly had time left in the welding shop to start tracing it out on some 10 guage 308 stainless steel.

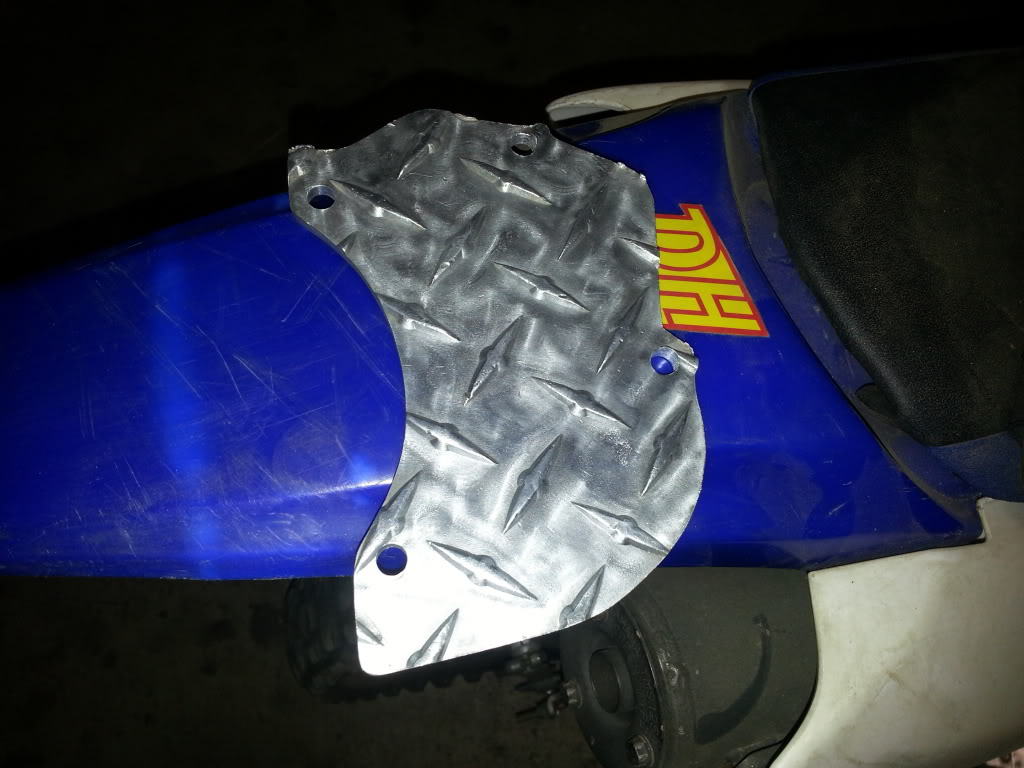

Here's a pic of the aluminum diamond plate oil pump cover I made a couple weeks ago, basically a replica of the one 79 Bronco made. A thanks goes to him for sharing pics in his thread.
