Simplified wiring

[enalkarion]

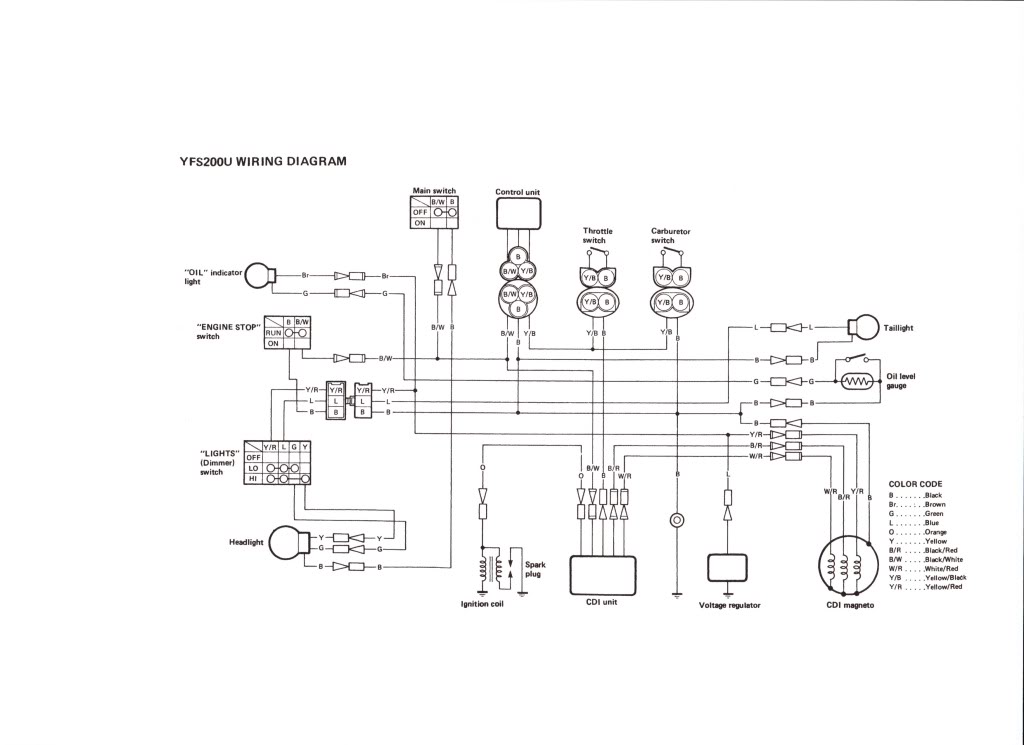

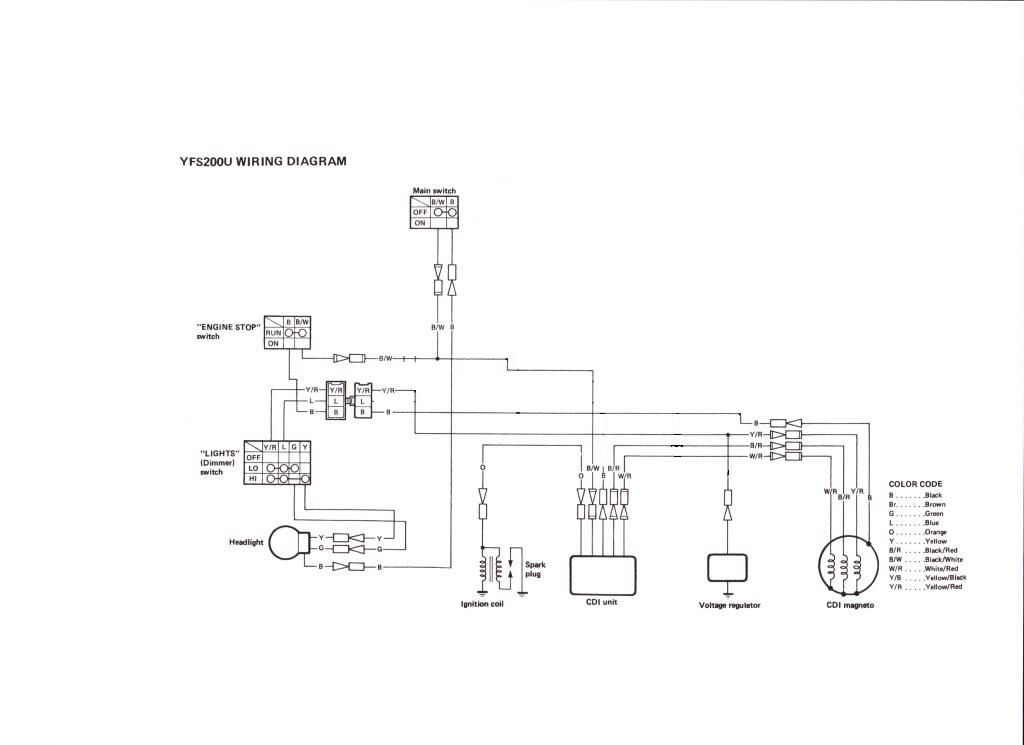

I edited/deleted some things off the wiring diagram for stuff thats missing from my blaster ( I hate seeing all the wires going nowhere). Kind of a bare minimum setup. No TORS, oil light/sensor, or taillight. Anyone see something i missed to make it work? 2nd pic is the standard diagram for reference.



[J4M1E333]

that's pre 03 diagram I think.

Edit, yeah it is, slight changes to the way tors works, and post 03 has 5 wires from stator. excellent diagram though. well help people out.



[DirtBlaster03]

Very nice. Thank you.
