re-routed wiring harness away from engine

[davenichole]

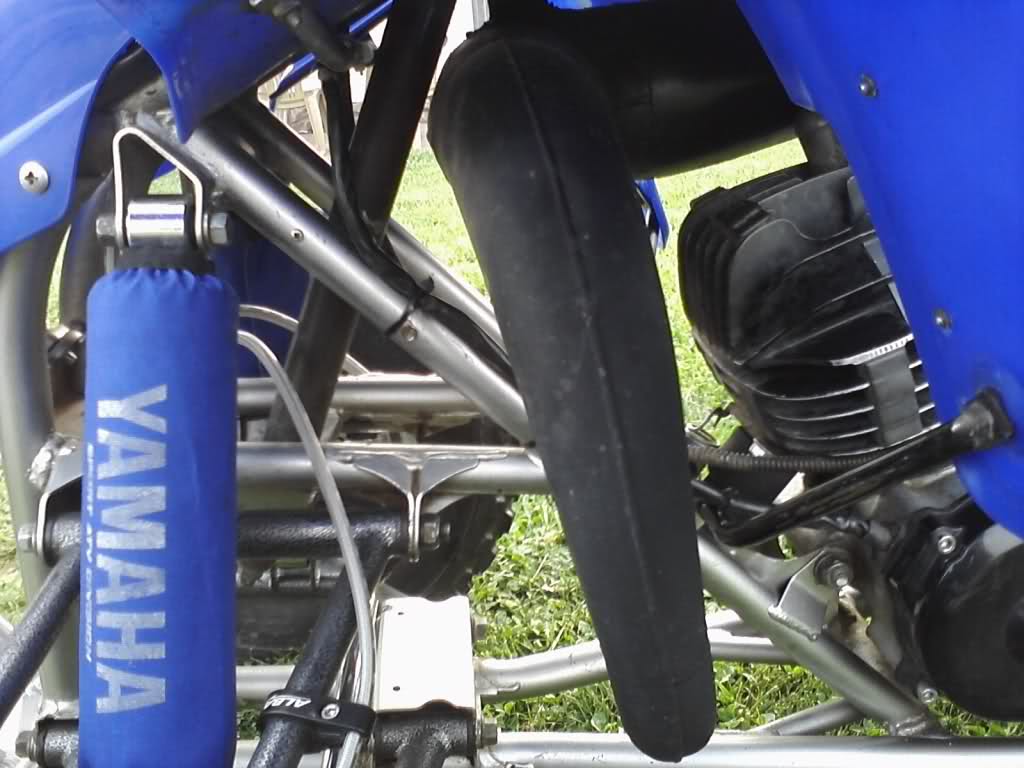

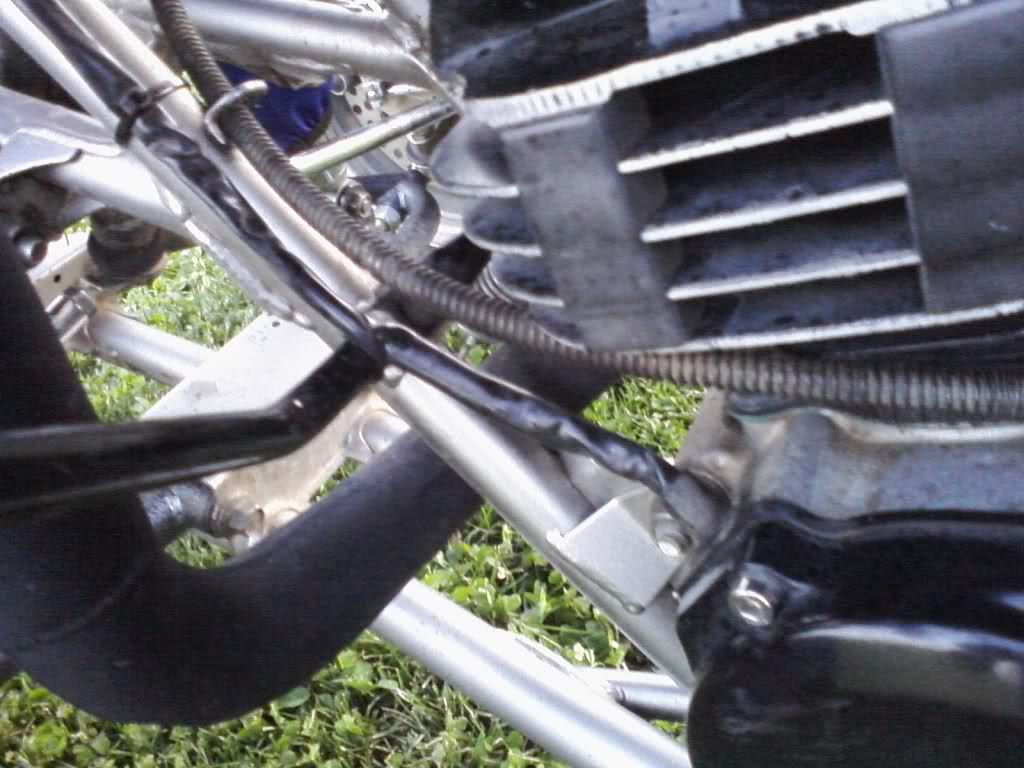

i wasn't really sure what section to post this in. i re-routed the harness. i no longer had wires going to the back of the ATV so i changed things around to give the engine a cleaner look. i eliminated a lot of electrical plugs i no longer needed. i don't have the oil tank which had wires. i don't have a tail light, brake light switch or tors, either. i did have to separate from the main harness a couple wires that go to the coil. those run in the stock location under the tank along frame rail. i think it looks better this way.



[98blaster+4]

ive wanted to do this same kinda thing, i like the way its not near the chain at all, and keeps everything tucked away nicely



[Blazed405]

Yea good plan,
Saw on DIY choppers where they ran wires inside the handlebars was thinking about that for my wires to the coil and

Maybe some type of ferule into the case with braided stainless steel hose from the stator up to whereever.

also though about putting all the electrical inside the airbox somehow??



[Blaner]

nice man, clean motor



[Antec1200X]

looks good
1515



[super noober]

nice work! I:I I:I



[Luni]

What did you do with the wires from the stator? Could you post a pic a bit forward on the stator cover so I can see?



[jahrastapark]

Nice job. Looks good, and cleanliness is next to godliness.



[davenichole]

RE: Luni

i ran them up under the nose. the connections are now behind the headlight



[scotj77]

I did mine the same exact way. i like it much better
