Piston measuremants

[mbalunovic]

Hi All there
I am planing on using some Blaster engine parts but I need some measuremants
I would be very grateful if you can provide me with one
total piston height (from bottom of the piston to the centre of the dome
from the pin center to dome top
from the pin center to piston top (on the side of the piston)
If someone can provide me with this information I would be very happy
Thanks in advance



[slickerthanyou]

Well this is what i came up with, for a weisco forged 68mm piston:

total piston height (from bottom of the piston to the centre of the dome) 68mm
from the pin center to dome top 30mm
from the pin center to piston top (on the side of the piston) 29mm


The pioston height is the same as the width! 68mm

Sure do need a new digital set of calipers!



[mbalunovic]

Thanks a lot



[mbalunovic]

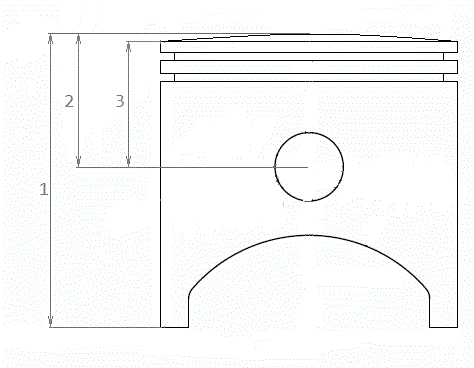

just to be sure you understood me correctly
(because of my bad English)

these are the measurements you gave me?



[blasterBruce]

Yes those are the measurements he gave you , but it was not for a Stock Size piston , those measurements are for a Wiseco 68mm



[mbalunovic]

how much are they diferent.

I need a 66mm piston whit no 3 measurement of approximately 25 mm max 22 mm min
