Need help on Brake / banjos specs !

[BlasterAzores]

Need to know the specs from my front brake lines (banshee 1989 fited on my blaster) to order new ones. (YAMAHA XV1700 WARRIOR FRONT RACE BRAKE LINE KIT 04-05 on eBay (end time 09-Feb-10 09:26:00 GMT))
But i have absolutly no clue :-/ how classifie banjos..... Can anyone give me a help ?

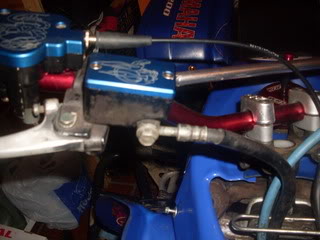

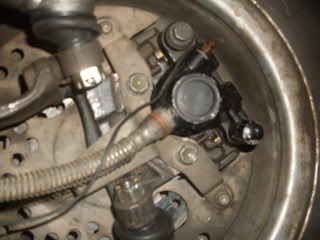

some pics to help out.

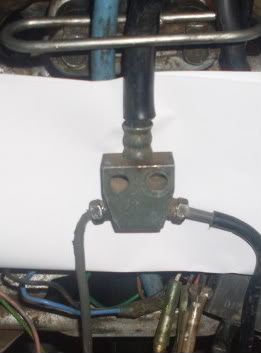

How about this spliter. Y spliter ? T fitting ?

Anyone is sure if this the right GSXR1000 setup that is usualy converted to oure Blasters ?
07 08 Suzuki GSXR 1000 Rear Brake Caliper EXCELLENT : eBay Motors (item 360225778473 end time Jan-23-10 19:00:00 PST)



[Awk08]

no thats not the gsxr caliper, you need an 03,04,05, or 06, usually gold colored, but i just got a black one thats the same, like this one.........03-04 SUZUKI GSXR1000 REAR BRAKE CALIPER gsxr 1000 : eBay Motors (item 330394510402 end time Feb-10-10 12:27:13 PST)

and i think the rear caliper and master takes a 10mm x 1.00 thread banjo bolt, they should all be the same on yamaha's, and the gsxr is the same too

the splitters dont come apart from the line, it's crimped into the block, heres what im gonna get .......
SPEEDLINE'Z Yamaha Blaster 3-Pc Front Brake Lines : eBay Motors (item 360214434160 end time Jan-02-10 23:11:45 PST)
but youll have to ask them if they have them for the older style calipers, your pre 1990 calipers dont have a banjo fitting, i think thats called an "an" fitting????

hope this helps



[BlasterAzores]

no thats not the gsxr caliper, you need an 03,04,05, or 06, usually gold colored, but i just got a black one thats the same, like this one.........03-04 SUZUKI GSXR1000 REAR BRAKE CALIPER gsxr 1000 : eBay Motors (item 330394510402 end time Feb-10-10 12:27:13 PST)

and i think the rear caliper and master takes a 10mm x 1.00 thread banjo bolt, they should all be the same on yamaha's, and the gsxr is the same too

the splitters dont come apart from the line, it's crimped into the block, heres what im gonna get .......
SPEEDLINE'Z Yamaha Blaster 3-Pc Front Brake Lines : eBay Motors (item 360214434160 end time Jan-02-10 23:11:45 PST)
but youll have to ask them if they have them for the older style calipers, your pre 1990 calipers dont have a banjo fitting, i think thats called an "an" fitting????

hope this helps

Thanks Awk, it sure helps !
