lets see some top end pics

[OConnor Racing]

Those spark plug holes are all over the place. Some come out perfect, others do not. I cut as little as possible off the head and concentrate on the chamber. If I were to keep cutting to square off the bottom fin, I'm forced to go deeper into the chamber. That would reduce the thickness of the head in the chamber and affect cooling.



[Antec1200X]

confirmed it is the spark plug hole.
i put the plug in it and put it on a drill and spun it.its out of wack damn thing.
that shouldnt cause problems could it?



[99LRDblaster]

might wana knock down them high spots in your exhaust port lol

I:I The port window doesn't have them. Just the port exit.



[99LRDblaster]

and polish it too, i see carbon building up on them gimmicks,
i mean "riflings"
and wheres the dyno report on their gains versus smooth and polished ???? < just because you like to say that word "dyno" daily

It is polished. It sat for 5 years and was running rich at the time.



[99LRDblaster]

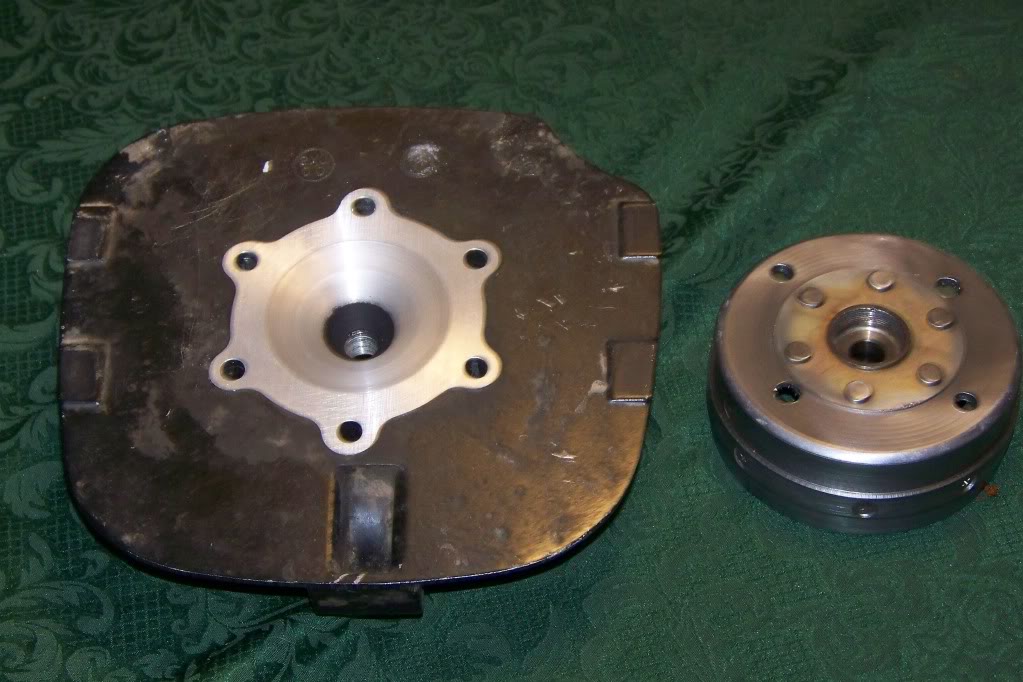

i cant seem to find any pics of my topend.. mabey freek can hook it up since i bought it from him. here is my modded head and lightened flywheel though.

How much weight did he take off your flywheel?



[sicivicdude]

Yeah, it makes sense to only take off what's needed at the expense of it being pretty.

You figure yamaha factory heads would be better quality controlled than that... I guess anything can be made out of round even in a factory...



['blanshee'man]

Bad pic but the work is beautiful.

Done by Wildcard



[darederek]

man this whole thread is sexxxyyyyy. if i was air i would def wanna go through those ports lol



[slickerthanyou]

This is the only pic I have as my motor was assembled when Ken shipped it back to me.



[bagds101]

hell yeah. i thought people would post some sexy intake pictures.



[99LRDblaster]

Anybody got any pics of the transfers?



[specialized7]

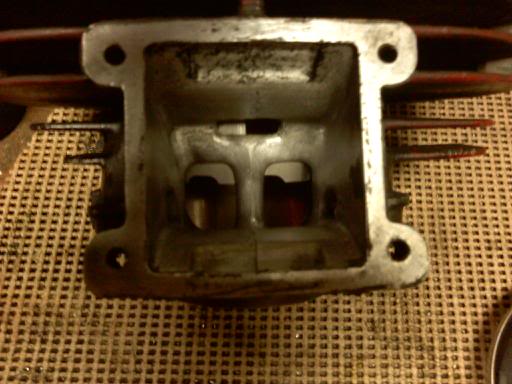

MY DIY! dt 200 cylinder

Started on the Intake not finished yet



[Antec1200X]

sure can tell how dirty my monitor is by looking at this pic



[JonS]

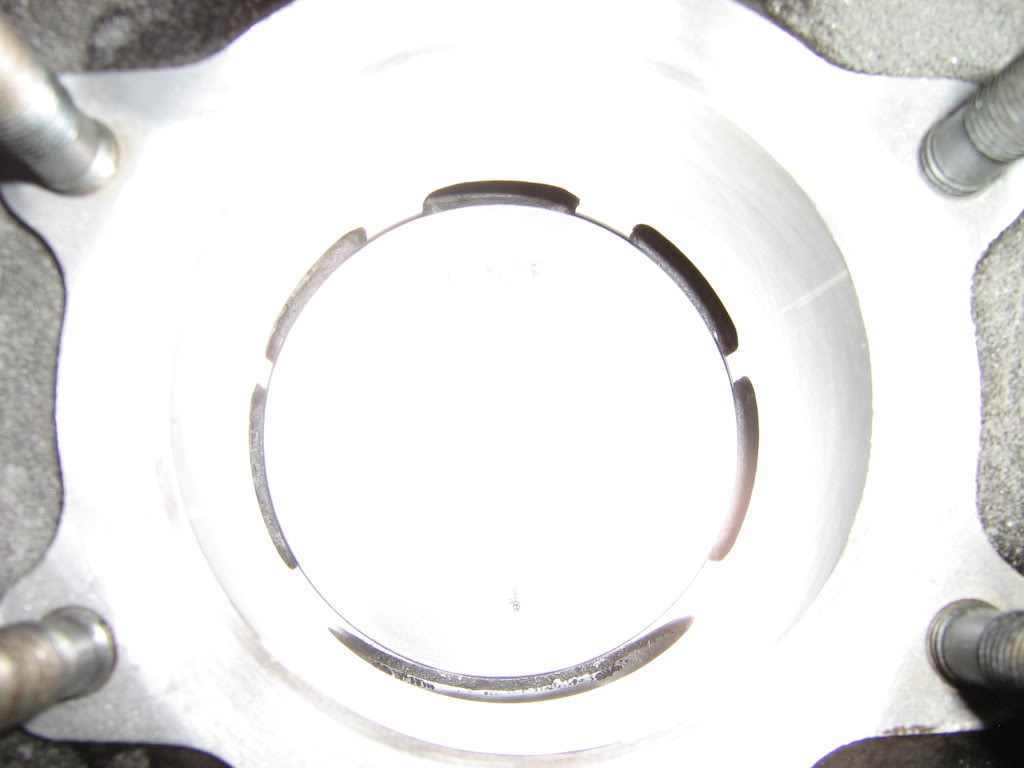

i didn't get a great pic of the transfers, but here ya go.



[revin-it02]

I used to have some of mine on my old laptop before it was stolen. Nowadays, I don't have much of anything and haven't rebuilt it since then. I don't feel like ripping the top end apart for pics as I already have it sealed up, so I'll just take what I can.

god, i now know why you cant beat a 400ex... that exhaust is terrible

anddd... is that your head in the last pic... omg



[sicivicdude]

god, i now know why you cant beat a 400ex... that exhaust is terrible

anddd... is that your head in the last pic... omg

Those are the "swirls" hollywood dirt productions made into their work. 99LRD stands by them...



[99LRDblaster]

god, i now know why you cant beat a 400ex... that exhaust is terrible

anddd... is that your head in the last pic... omg

No prob dude. I solved my prior issues. I can beat a 400 now. It wasn't the engine. I:I



[bagds101]

great pics guys. i cant beat a 400ex. no matter how many times we race. i cant beat a stock one. i think i just need a bigger carb though



[99LRDblaster]

great pics guys. i cant beat a 400ex. no matter how many times we race. i cant beat a stock one. i think i just need a bigger carb though

Yea I still won't beat it in top speed, but that's just a matter of gearing....I could be making 100hp and it still won't beat a 400 in top speed. Through the gears, I was even with a kids's TRX400 and he weighs less than me. Since I advanced the timing, I know I have him beat through the gears no problem now. I contemplated putting in a 15tooth and fabbing it in to place, but decided there is really no point as I'm not trying to set any land speed records.



[bonzaiking]

only pics i have of my "stock" ct kit
