Hey, so I'm a bit confused. I have a blaster that has the harness all chopped up and the red coupler from the switch is no longer there nor is the oil injection system or the tors nor a tail light. If i want to connect the headlight, and I have the green yellow and black coming from the back of the light, and the green and yellow from the switch, i connect the greens and the yellows, connect the yellow and red to the other yellow and red, and then just connect the blacks and it should work yeah?
HeadLight Wiring Help
- Thread starter MotoTech514
- Start date

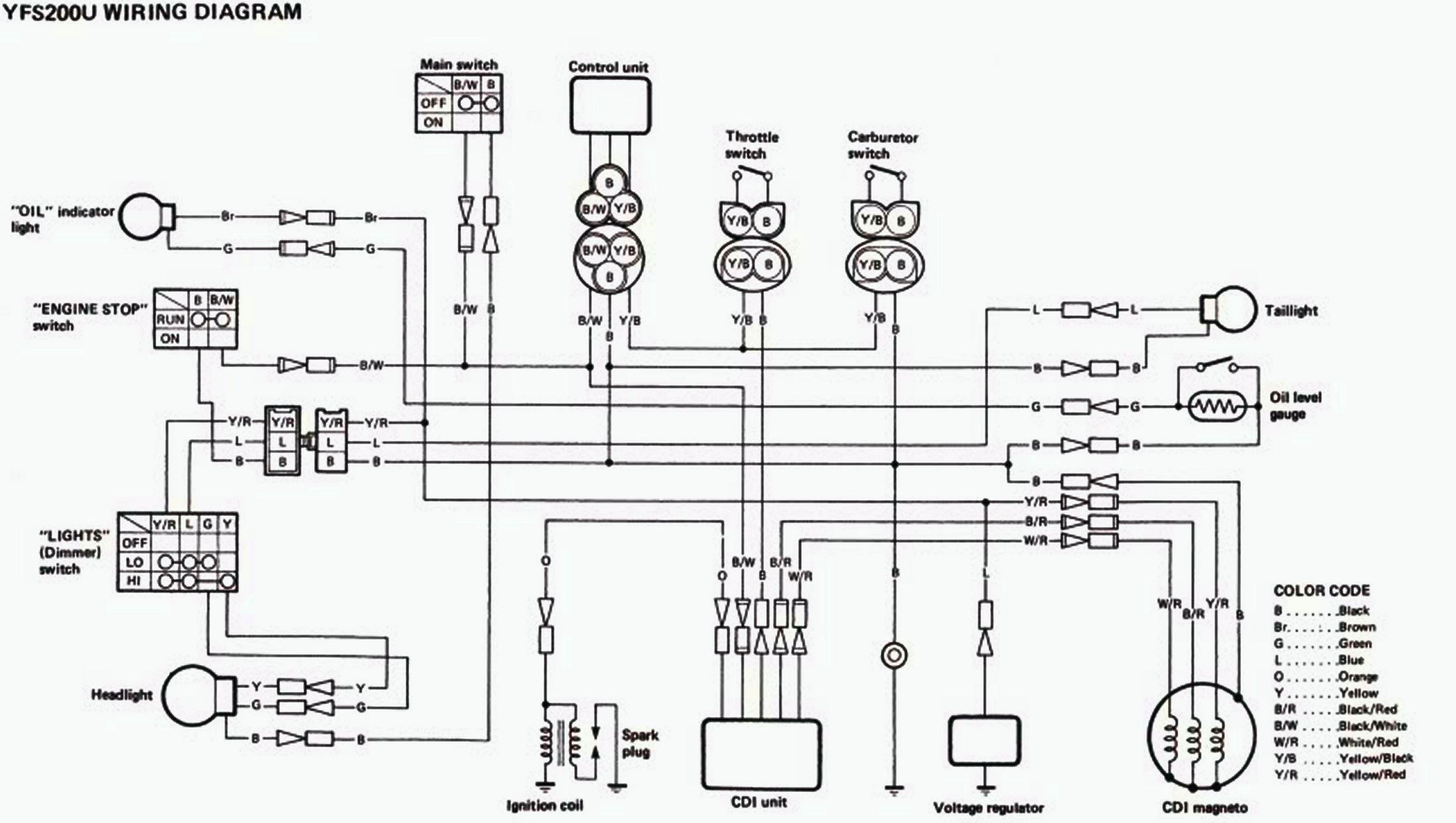

88-02 stock wiring diagram, 03+ is also available here...
https://www.blasterforum.com/threads/stock-wiring-diagrams.51842/
bare minimum diy wiring with all the junk removed
https://www.blasterforum.com/threads/stock-wiring-diagrams.51842/
bare minimum diy wiring with all the junk removed
