03+ Wiring removal help..

[Liquid5soul]

Trying to get rid of all the wiring i can other then the Head light,and wiring in a kill switch. All i want it to do is run from the stator to the CDI box.

I want to remove::

Parking break
TORS- I have a 34mm carb with twist throtle..that will remove the system but how to i re-route the wires.
Rear light-removed,just wires there.
Oil inj.-already removed,just wires there
Anything i can to make it clean.

Help gets rep points..and with PICS even more.

YB got me this link,but unfort. it didnt help much with it being more of 02-
http://www.blasterforum.com/general-support-17/removing-all-unnecessary-electrical-15316/



[Liquid5soul]

Keep this on top cause i need some infoooo.



[Liquid5soul]

keep this on topppppp



[jahrastapark]

ive been trying to get info on this for a while



[xKroniK13x]

I know for the emergency break I just shorted out the wiring up by the lever and stuffed it down into the hood... as far as getting completely rid of it, not too sure.

OH! And if you want to take off like all of the stuff from the brake caliper in the back, you need one of these: Tusk Parking Brake Block Off Plate | Rocky Mountain ATV/MC



[J4M1E333]

look at the thread i wrote called yamaha blaster wiring, Thats explains exactly how to do it and what goes where, any questions let us know



[Liquid5soul]

look at the thread i wrote called yamaha blaster wiring, Thats explains exactly how to do it and what goes where, any questions let us know

ok man ill check it out..thanks.



[DUALSTROKE]

I got you liquid.Let me get the kids in bed and Iwill go shoot some pics for you.I have a full 03 harness not running a front or rear light but I am running a key and an on/off switch.It's still a virgin harness with no wires cut at all.I'll get some pics shortly for you.



[NOVIS]

for the parking brake u pretty much just rip out all the wires (including the sensor) and the cable goin to the brake. and thats all, if i can remember corectly



[Liquid5soul]

I got you liquid.Let me get the kids in bed and Iwill go shoot some pics for you.I have a full 03 harness not running a front or rear light but I am running a key and an on/off switch.It's still a virgin harness with no wires cut at all.I'll get some pics shortly for you.

thanks man,that will help alot. im gonna clean all the wires and use new connections the heat shrink everything.



[DUALSTROKE]



[DUALSTROKE]



[DUALSTROKE]

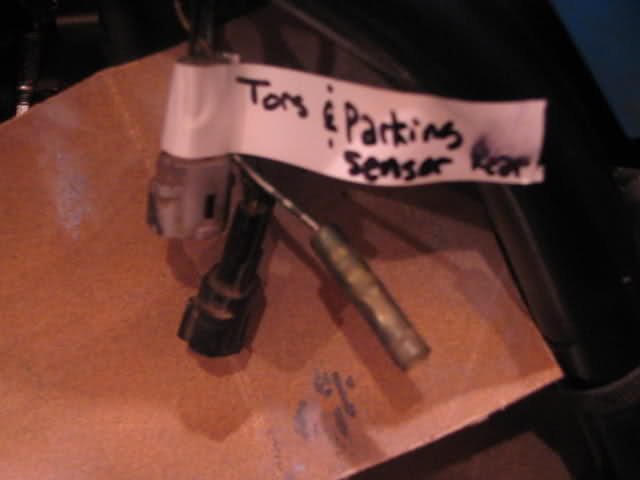

First pic is by the carb/tors.Those ones can be cut.

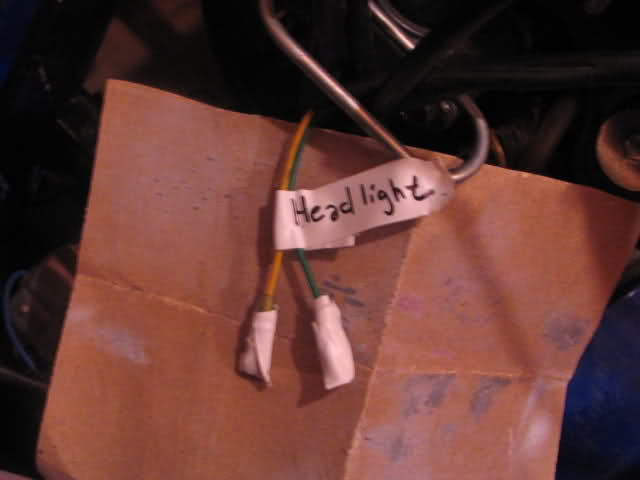

Second pic is the headlight.I do not have this hooked up but that comes directly from the switch under the hood.

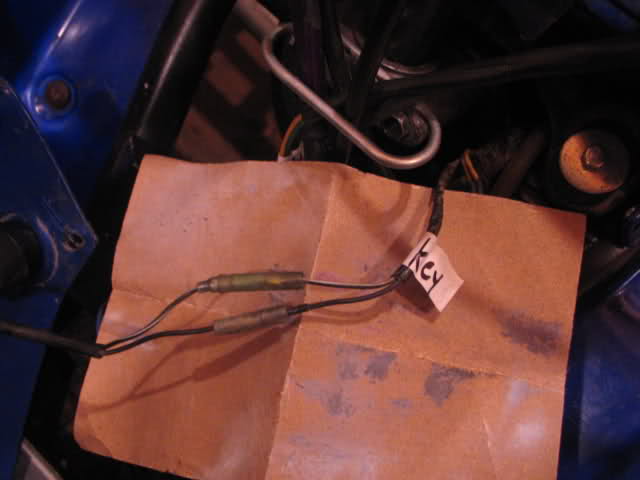

Third pic is the key switch under the hood.

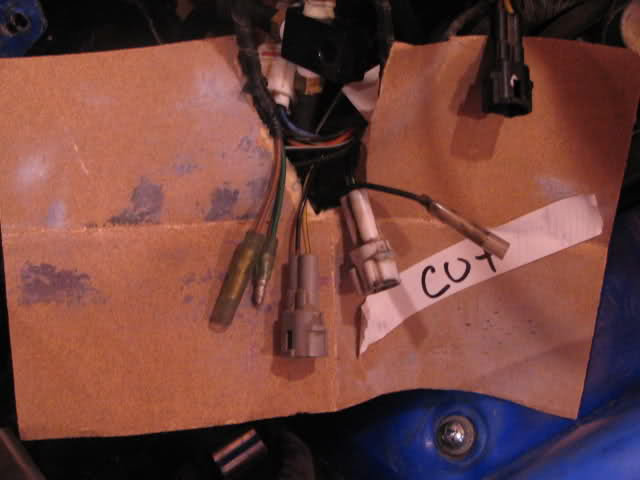

Fourth pic is all under the hood,I am pretty sure they can all be cut,Only reason I am not sure is the headlight hookup,you will know cause yours is still plugged in.Note: there is another plug in the top right of the pic,it is very short.

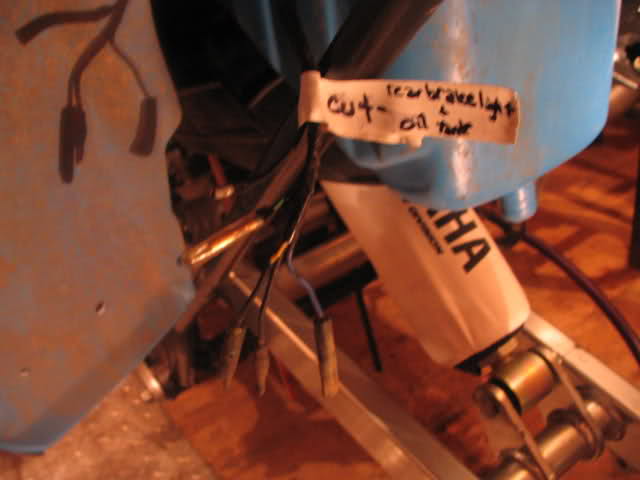

Fifth pic is in the rear.Cut them off.

Hope this helps.Let me know if you need more info.



[Liquid5soul]

First pic is by the carb/tors.Those ones can be cut.

Second pic is the headlight.I do not have this hooked up but that comes directly from the switch under the hood.


Third pic is the key switch under the hood.

Fourth pic is all under the hood,I am pretty sure they can all be cut,Only reason I am not sure is the headlight hookup,you will know cause yours is still plugged in.Note: there is another plug in the top right of the pic,it is very short.

Fifth pic is in the rear.Cut them off.

Hope this helps.Let me know if you need more info.

awsome help bro,the TORS and PARK break,if i cut those complety off,that will elim. the parking break right?



[DUALSTROKE]

awsome help bro,the TORS and PARK break,if i cut those complety off,that will elim. the parking break right?

exactly.The other ends are under the hood in the pics.Other than how your light hooks up you can cut everything you see in the pics.That is a running quad as you see it.If you need detailed colors I can get those tomorrow for you.



[Liquid5soul]

exactly.The other ends are under the hood in the pics.Other than how your light hooks up you can cut everything you see in the pics.That is a running quad as you see it.If you need detailed colors I can get those tomorrow for you.

yea man please do..all the pics help ALOT!..lol. Im actually using a 02- stator with it,i know you just ground the extra wire from the 03+ harness to work,so i gotta make sure i dont cut that one. lol. I still keep the CDI box and the little silver box right? (rep points given)



[DUALSTROKE]

Deffinately keep the cdi and the rectifier(silver box).When I get home tomorrow I will write down the info and post it for you.Thanks bro.



[Liquid5soul]

Deffinately keep the cdi and the rectifier(silver box).When I get home tomorrow I will write down the info and post it for you.Thanks bro.

yea i figured the CDI and REC would stay just wanted to make sure.lol Thank again man,ill check the thread again tomorrow and have the harness in front of me ready to do the work.



[DUALSTROKE]

Is it done yet.LOL j/k



[Liquid5soul]

Is it done yet.LOL j/k

lol i was actually gonna start on it now,but i gotta help my bro out..so im gonna do it all tomorrow and then im gonna take some pics of before and after wiring,along with all the info you PM'd me in a new thread for others to get use from.
