Oil Injection Pipe

[jackewacky1]

Hi there, did a top end rebuild for a friend on their 2006 Blaster. The reason it seemed to fail was that the oil injection pipe had fallen off the carb. I have never worked on a blaster before and I can see that one big pipe from the 2stroke reservoir goes down to the clutch side (right) side of the engine. I then see a smaller pipe that comes out and presume is meant to attach to the carburettor, however I read that it goes onto the back, and I can't find any place for it to go? Yes I have searched for hours on this forum and on google to try and find the answer, but to no avail, can someone please take a picture of where on the carb it attaches and post it up.

Also have no intention at the moment of removing the injection system and using premix, I asked the person I am doing the quad for did they want me to do it but they are adamant they want it left on, so please no comments just saying to get rid of it.

Sorry for the demanding first post on the site, hopefully someone here can help me? I:I



[bummer981]

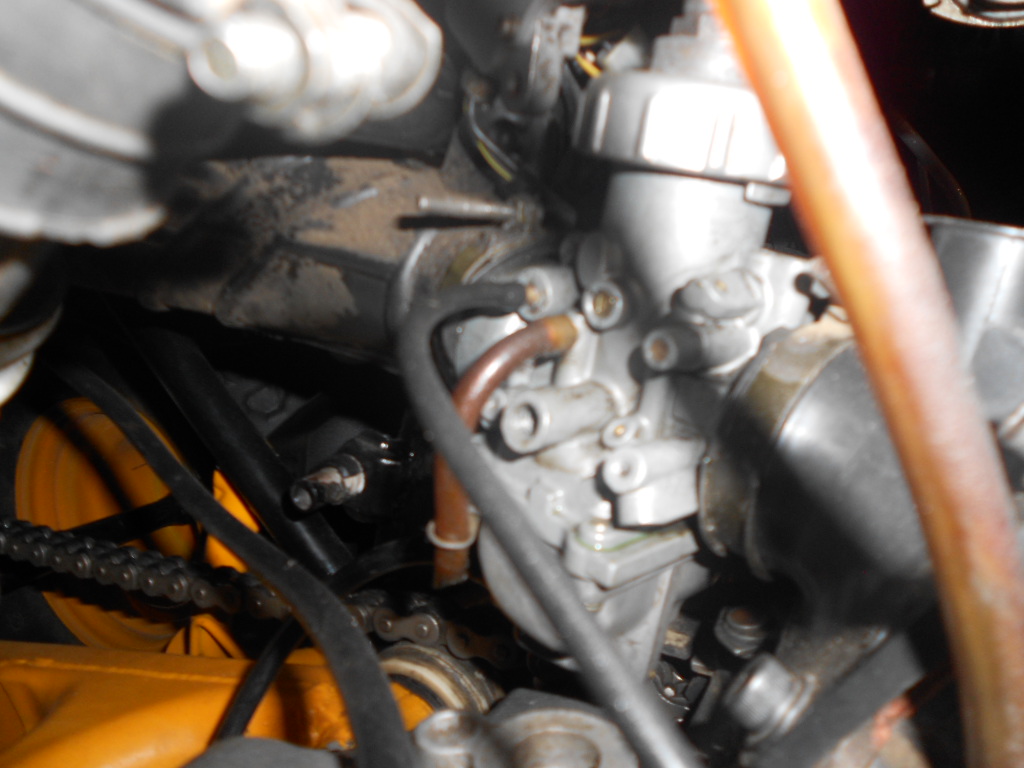

Here you go. Its where the black hose is attached, I am running the injector on my new build.



[Blaaster]

There should be a brass collar which slips up over the pipe to secure the pipe to the nipple to stop it pulling off.



[jackewacky1]

Thank you so much for the help! Looked like someone put one of the overflow pipes on that nipple that's why I couldn't find it!



[joeak47]

Hi there, did a top end rebuild for a friend on their 2006 Blaster. The reason it seemed to fail was that the oil injection pipe had fallen off the carb. I have never worked on a blaster before and I can see that one big pipe from the 2stroke reservoir goes down to the clutch side (right) side of the engine. I then see a smaller pipe that comes out and presume is meant to attach to the carburettor, however I read that it goes onto the back, and I can't find any place for it to go? Yes I have searched for hours on this forum and on google to try and find the answer, but to no avail, can someone please take a picture of where on the carb it attaches and post it up.

Also have no intention at the moment of removing the injection system and using premix, I asked the person I am doing the quad for did they want me to do it but they are adamant they want it left on, so please no comments just saying to get rid of it.

Sorry for the demanding first post on the site, hopefully someone here can help me? I:I

Don't forget to bleed the injection system!
The stock oil injection system works perfectly!
