Crank seal retainer removal?

[MrEanAwesome]

I am working on replacing the crank seals and I am not sure how to get the crank seal retainer off on the clutch side. Any help is appreciated



[dirtysquared]

I use an impact screwdriver with the correct phillips head bit in it. Im pretty sure its a #3.

Good Luck!



[MrEanAwesome]

I have the two screws off... But where the actual seal is is what I can't get out



[dirtysquared]

I'm sorry I thought you meant the Small retaining plate that holds them down.
The actual seal it self is what you mean?



[harley1-5]

we have a tool at work looks like a corkscrew scres into seal works really well



[jus_me]

Retainer?.......



[MrEanAwesome]

This is what I have it down to right now



[jus_me]

Nm i got ya. Miss understood for a second. If you mean just the seal, you can use a flat head screwdriver, small pry bar, or like stated a seal extractor. careful to not gouge it. When u reinstall the seal use a socket n a little oil.



[MrEanAwesome]

Where do I pry at?? I don't wanna damage anything lol



[Herpderplol]

If you bought new seals (as you should have) Just screw a drywall screw into it and pull I:I



[MrEanAwesome]

Well the new seal doesn't look like that. And this doesn't look like I could get a screw into. It's a kind of metal. The other side I was able to do that though.



[dirtysquared]

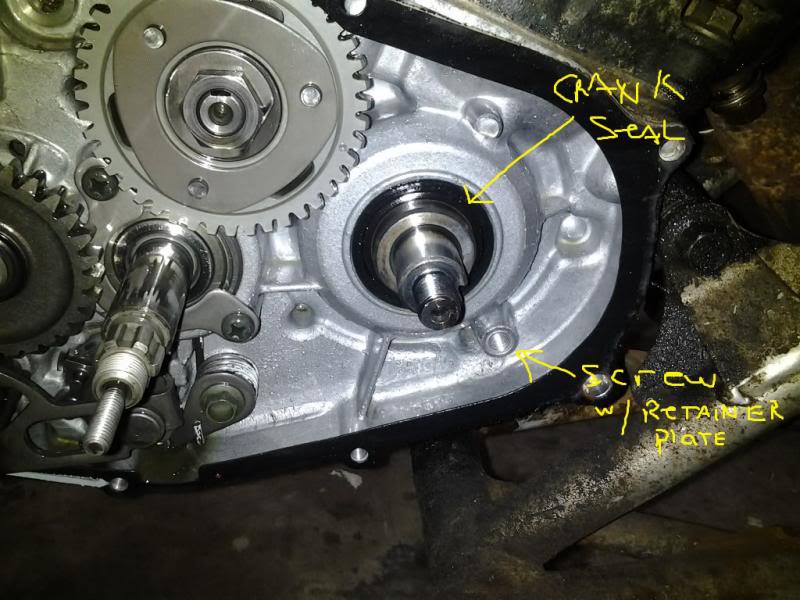

I copied your pic and marked it. Hope that helps. That isn't your crank. Thats part of your clutch assembly.



[dirtysquared]

I'll find you another pic of where it is..Dont poke anything yet!



[MrEanAwesome]

Okay, thank you I feel stupid now. Haha



[jus_me]

My stupid phone won't let me see pics. Dirtysquared seems to be on right track. ..



[dirtysquared]

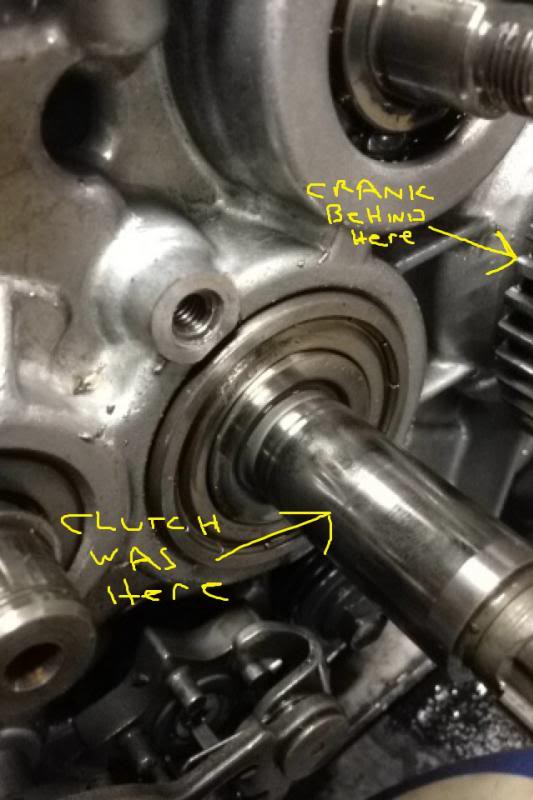

Here you go. I put a small drywall screw very carefully into each side. I mean barely into it, just enough to grab. Then pull on the screw with some channel locks evenly. It will come out.

I highlighted the screw and retainer plate that I thought you were talking about the first time I responeded.

Don't feel stupid. Asking for help is a very smart quality. And you know you did the job yourself makes it more worthwhile.

Fred



[MrEanAwesome]

Thank you all so much for your help. I got it



[harley1-5]

we are all here to help each other



[gizzy2014]

Okay, thank you I feel stupid now. Haha

dont feel stupid, we all were beginners once

i suppose i should change my signature.......



[MrEanAwesome]

Haha, thank you all, you've all been a big help I've put a lot of work into it and there is the occasional odd thing I can't figure out that you guys can always help with
