Yeah still working on it and the blaster I waiting on my dam washer for under the jet to turn up. Maybe I should have just made a washer.

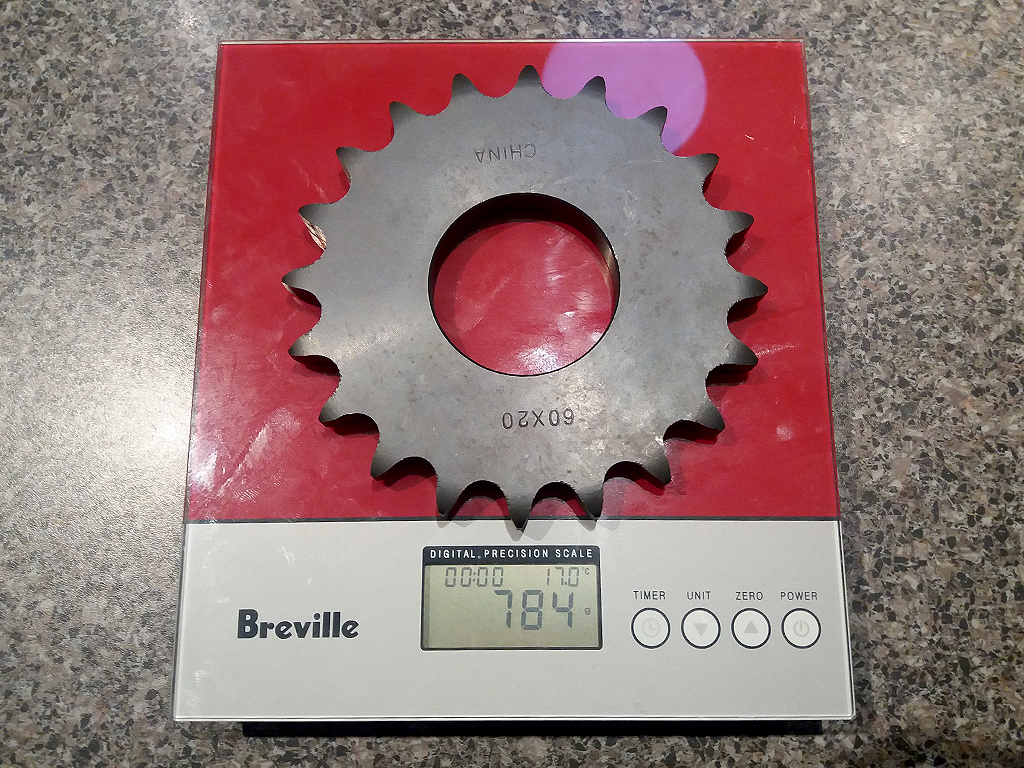

20 tooth sprocket is 784g before I lighten it.
28 tooth sprocket is 1.778kg before I lighten it.

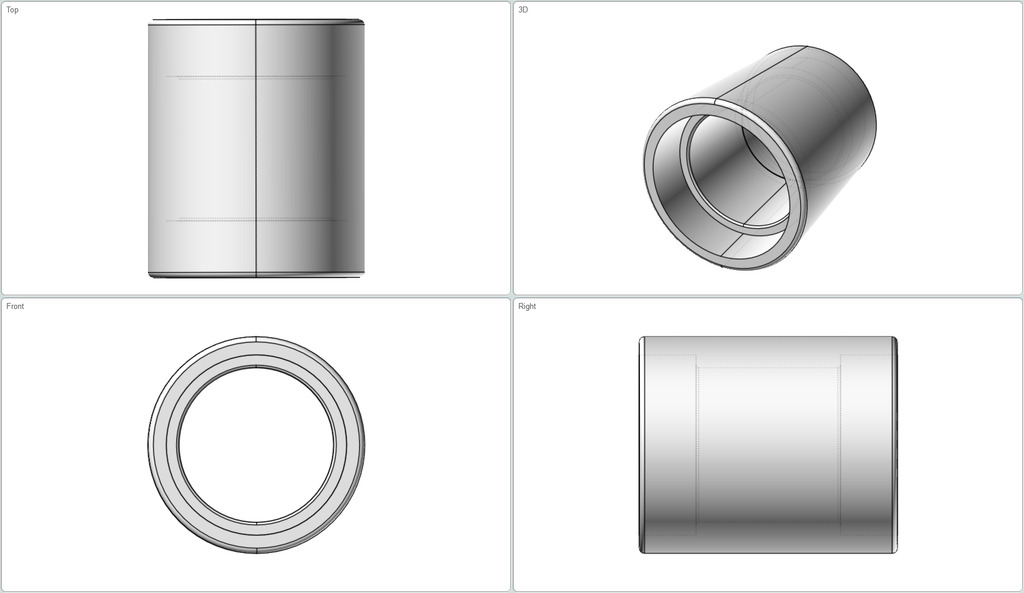

Bearing housing.

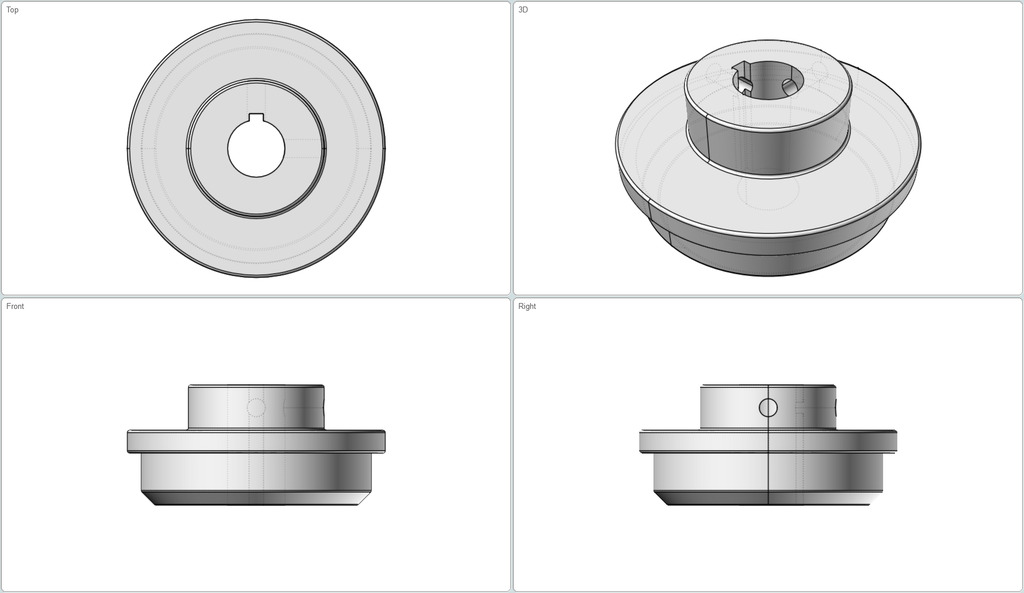

Front sprocket hub.
Idle sprocket hub.

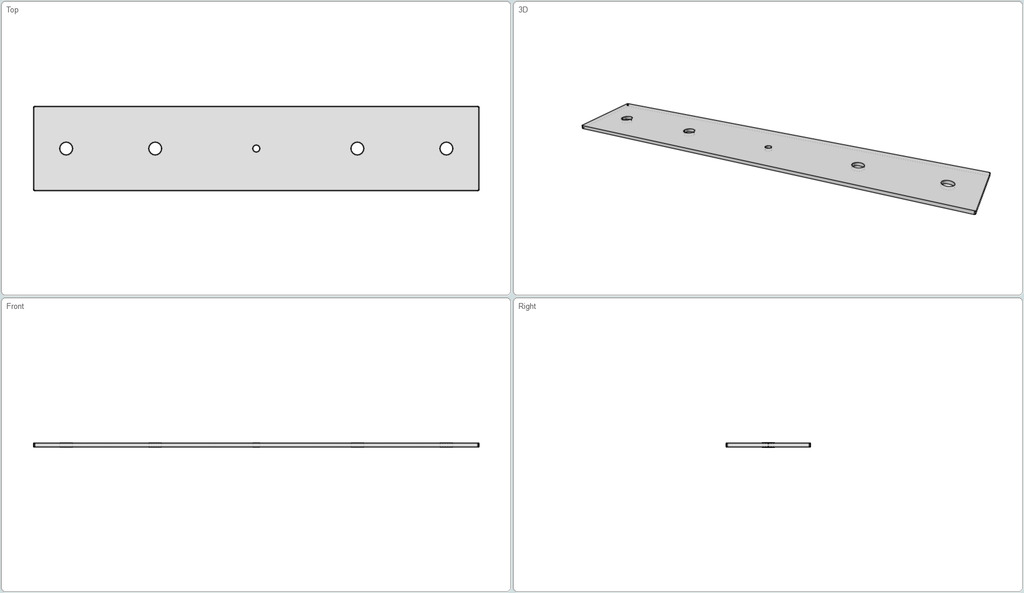

Tread plate.

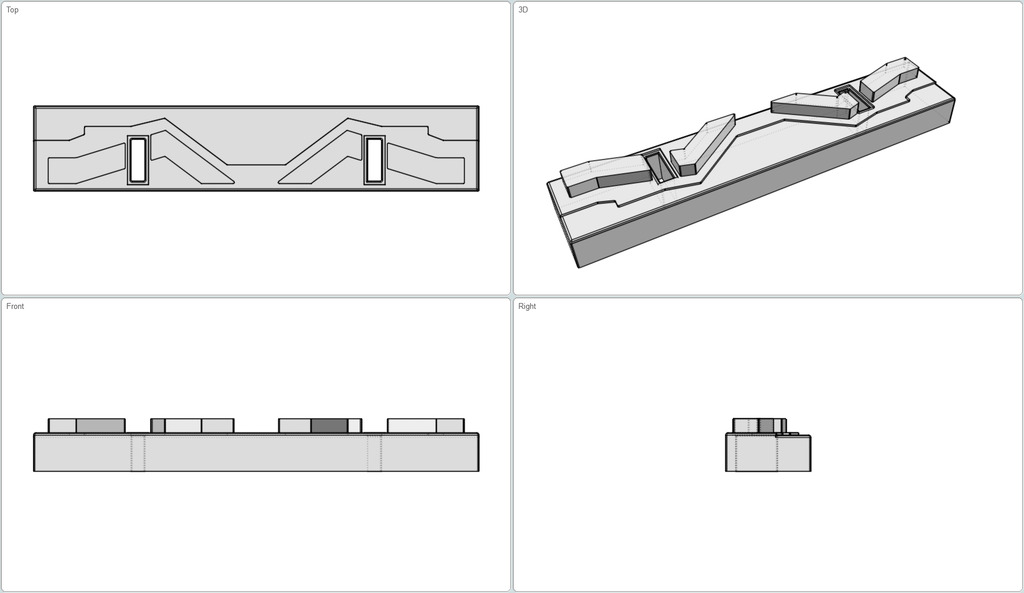

Rubber tread.
Still need to draw up the drive sprocket hub and then I will start on the idle arm.
28 tooth sprocket is 1.778kg before I lighten it.
Bearing housing.
Front sprocket hub.
Idle sprocket hub.
Tread plate.
Rubber tread.
Still need to draw up the drive sprocket hub and then I will start on the idle arm.
Last edited:

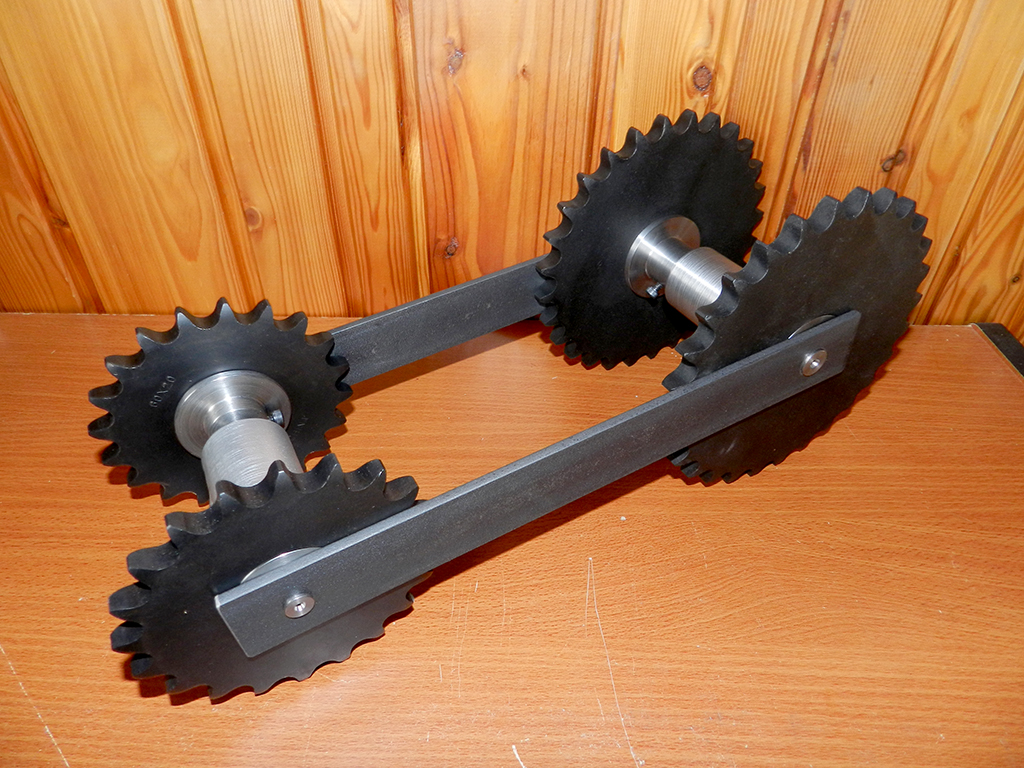

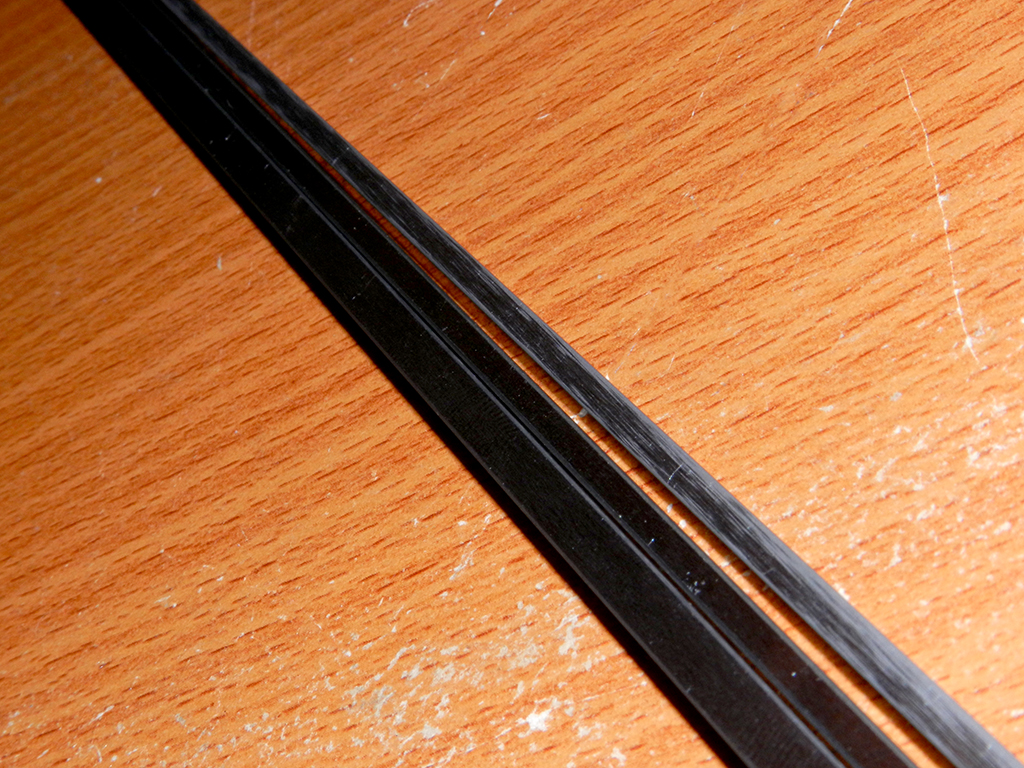

Made the 2 bars for the idle arm.
Got my steel for the lower roller wheels. and made some test wheels. Final wheels will be rubber.
Got my steel for the lower roller wheels. and made some test wheels. Final wheels will be rubber.
Last edited:
Freezing hands but was able to get some more parts done. Temperature is 2.9c outside.
#35 - 30 tooth sprocket.
#35 - 30 tooth sprocket.
#60 - 12 tooth sprocket.
#60 - 20 lightened tooth sprocket.
#60 - 28 lightened tooth sprocket.
#35 - 30 tooth sprocket.
#35 - 30 tooth sprocket.
#60 - 12 tooth sprocket.
#60 - 20 lightened tooth sprocket.
#60 - 28 lightened tooth sprocket.

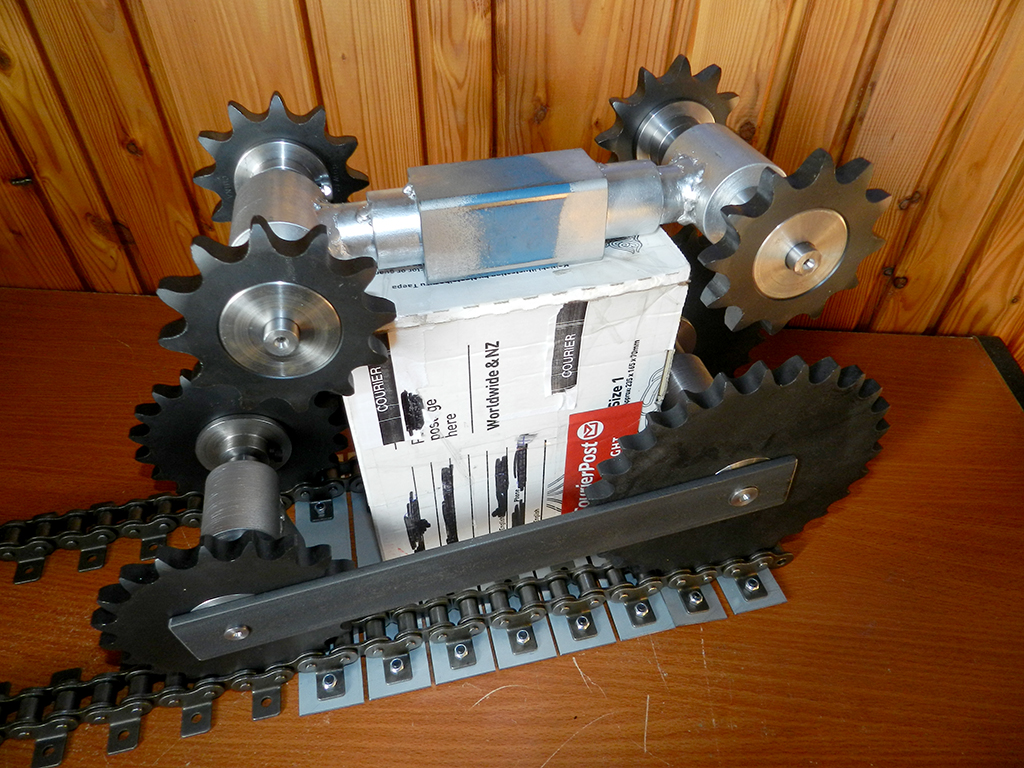

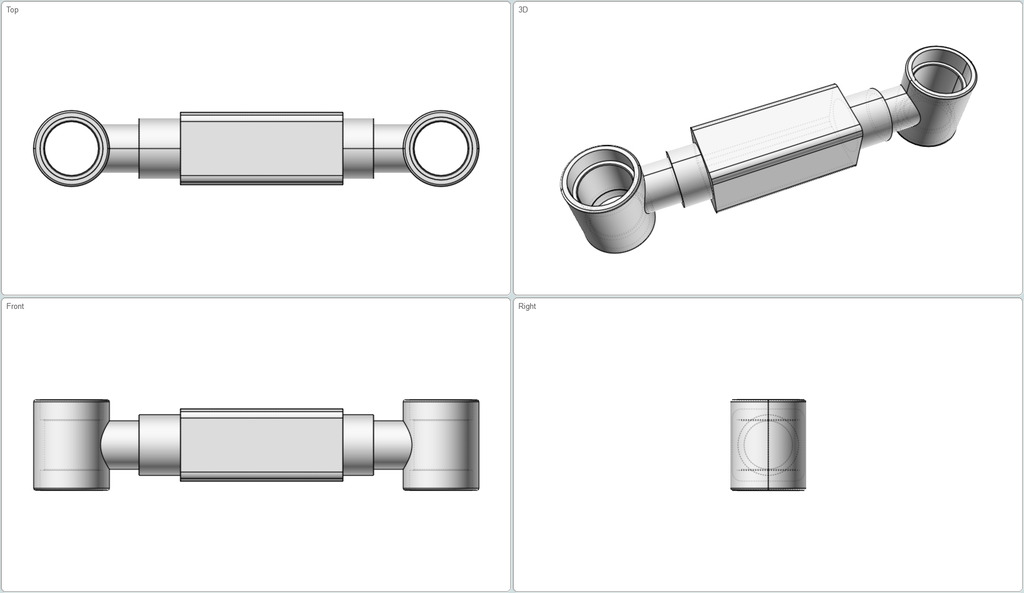

Started making the parts for the track tensioner.

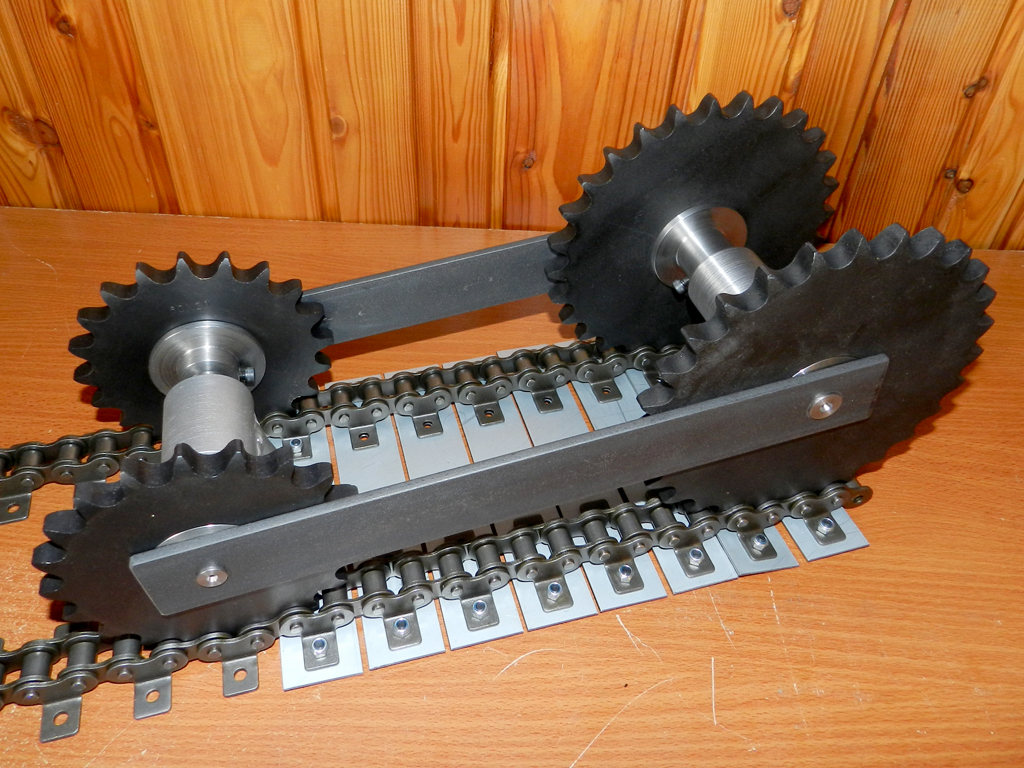

1st push test of the track drive.
Video of the track drive test.
1st push test of the track drive.
Video of the track drive test.
Got My drill press yesterday so today I started on the holes in the sprockets.
Centering drill.
Pilot drill.
Pilot holes done in all of the sprockets.
Tungsten carbide tipped hole saw. I love them now as they are much faster then a normal bi-metal hole saw.
40x 16mm holes.
Looking good.
Lightened 203g. It was 784g. That's a total of 812g lighter for the 4 sprockets.
Next I will start on the drive sprockets.
Centering drill.
Pilot drill.
Pilot holes done in all of the sprockets.
Tungsten carbide tipped hole saw. I love them now as they are much faster then a normal bi-metal hole saw.
40x 16mm holes.
Looking good.
Lightened 203g. It was 784g. That's a total of 812g lighter for the 4 sprockets.
Next I will start on the drive sprockets.
Lightening the front sprockets for Wall-E. Using a Tungsten carbide tipped hole saw running at 220rpm on 550watt drill press. Little bit of cutting oil was used.
Last edited:
Started lightening the drive sprockets today.
Centering holes done.
Pilot holes done.
12mm jobber drill bit.
All the 12mm holes done.
Tomorrow I will start on drilling the 40mm holes.
I have uploaded a video of the 12mm hole drilling.
Centering holes done.
Pilot holes done.
12mm jobber drill bit.
All the 12mm holes done.
Tomorrow I will start on drilling the 40mm holes.
I have uploaded a video of the 12mm hole drilling.
Finished 1 drive sprocket last night and another one tonight. Very slow drilling 6x 40mm holes in 12mm steel.
Bearing housings.
Idle sprocket hubs.
Front sprocket hubs.
Drive sprocket hubs.
Perfect fit. Will be welded in the groove.
Tomorrow night after work I will get another drive sprocket drilled.
Bearing housings.
Idle sprocket hubs.
Front sprocket hubs.
Drive sprocket hubs.
Perfect fit. Will be welded in the groove.
Tomorrow night after work I will get another drive sprocket drilled.
De-burring the holes.
All the drive sprockets done.
Nice bits of steel from the drive sprockets. Will come in handy for something.
All the metal from all the drilling on the sprockets.
Lightened 788g. It was 1.778kg. That's a total of 3.512kg lighter for the 4 sprockets.
Perfect fit.
Will be welded in the groove.
Looking good.
I have uploaded a video of the de-burring of the holes.
All the drive sprockets done.
Nice bits of steel from the drive sprockets. Will come in handy for something.
All the metal from all the drilling on the sprockets.
Lightened 788g. It was 1.778kg. That's a total of 3.512kg lighter for the 4 sprockets.
Perfect fit.
Will be welded in the groove.
Looking good.
I have uploaded a video of the de-burring of the holes.
