the LT250r's clutch

[4cfed]

puled the clutch out of the lt tonight... ordered all the new parts already

what ya think????



[blaster01]

from my amature opinion it doesnt look bad at all, when we did my engine rebuild pulled the clutch just to check it and it was still good as can be from 2001

but your clutch doesnt look bad, but im no pro
and the pic quality isnt the best but you can get the idea pretty well



[4cfed]

from my amature opinion it doesnt look bad at all, when we did my engine rebuild pulled the clutch just to check it and it was still good as can be from 2001

but your clutch doesnt look bad, but im no pro
and the pic quality isnt the best but you can get the idea pretty well

it slipped under load.. i could snap it and launch, but 3-4-5-6th would slip



[blaster01]

hmmm id, but the plates dont look bad,some times you can fix the clutch slipping just by adjusting it, thats what my dad did on his 250r before he rebuilt the whole engine, clutch and all



[4cfed]

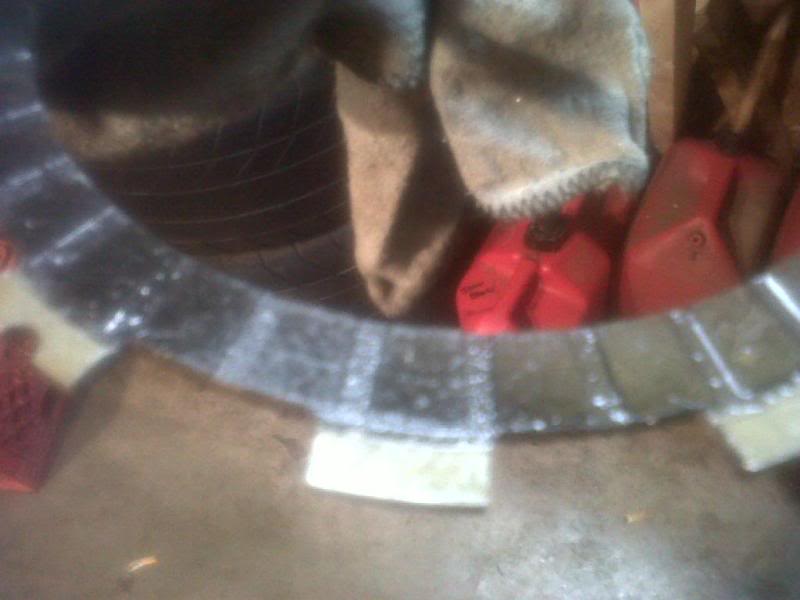

look at the side shot of the fiber plate.. do you see any fiber material there??



[sicivicdude]

The plates LOOK fine. What's the thickness vs specification? When was the last time the transmission fluid was changed in it?



[4cfed]

The plates LOOK fine. What's the thickness vs specification? When was the last time the transmission fluid was changed in it?

it slipped in spring, with honda hp trans oil in it, slipped untell i took it out 2 hours ago.. trans oil was chaanged 2 times in spring, and was changed a week ago.. same results



[blaster01]

look at the side shot of the fiber plate.. do you see any fiber material there??

cant tell from these pics,but if you say there worn out then they probly are, ha



[4cfed]

cant tell from these pics,but if you say there worn out then they probly are, ha

slipped in spring when i owned it, and i adjusted it, slipped threw 2 more owneers and slipped when i got it back.. so its gettin a new clutch



[sheeblast]

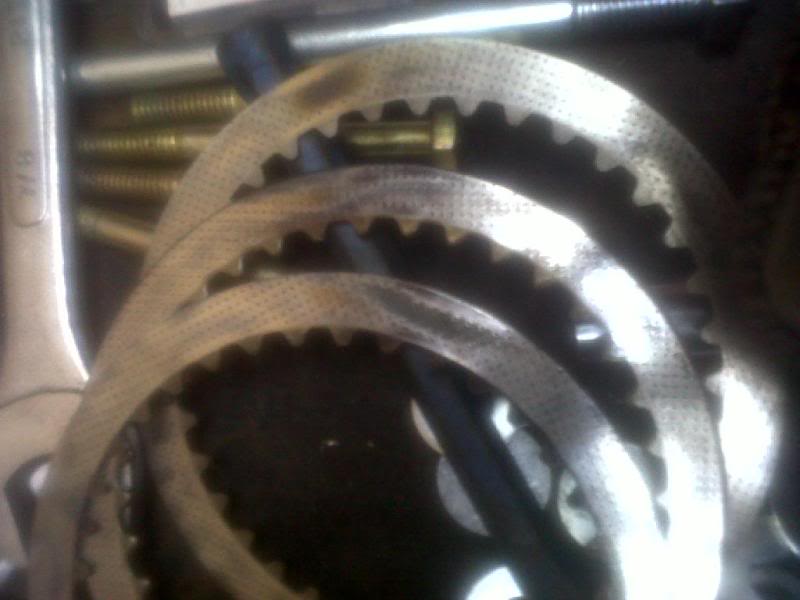

your steels have burn marks. i am thinking the clutch wasn't adjusted correctly.



[4cfed]

your steels have burn marks. i am thinking the clutch wasn't adjusted correctly.

i adjusted it when i owned it in spring and it was better for all of 20 min, and its been rode all summer but the prev owner with the clutch bad... the fiber disks are almost smooth, pressure plate and clutch basket look mint though,


and i see what you ment by adjusting it sucks .. there bright idea for the notched rod going threw the clutch into the arm for the cable is a brilliant idea 8-|



[The Ox]

ya the steels are burnt meaning it got hot, cant tell about the fibers but there is a spec on that stuff.



[sheeblast]

the fibers are bad, but hard to tell how bad.



[motoman9911]

Since it's already been confirmed the clutch is trashed. Your camera sucks. I assume that was with some crappy flip phone from like 8 years ago?



[4cfed]

Since it's already been confirmed the clutch is trashed. Your camera sucks. I assume that was with some crappy flip phone from like 8 years ago?

actually that was with my blackberry curve2 it usedto take really good pictures and i dont know what happened now that the pictures suck



[1bad442]

dimpled steel plates will slip at load in the jhigher gears put undimpled steels in and teh problem will be gone of course id also stick new fibers in at the same time



[4cfed]

dimpled steel plates will slip at load in the jhigher gears put undimpled steels in and teh problem will be gone of course id also stick new fibers in at the same time

i ordered new fibers, new steels and new springs from clutch factory...



[little3mil]

is or was it out of adjustment fed?



[4cfed]

is or was it out of adjustment fed?

i beleve it was out of adjustment before i owned it, i adjusted it and it was a little better for maybe 20 min than back to the same, i got ride of it in like may? and just got it back the other day so its been rode a long time with the clutch that way,



[little3mil]

only cause you should have seen the clutch in my friends shee (there was nothing left, like gone) the worst ive ever seen and it was still grabbing. we were amazed
