Carrier bearing spacer Mod?

[Markblaster]

Hi. Has anyone drilled holes or milled slots in there carrier spacer to allow grease from the zerk fitting into that area inside the spacer around the axle and up to the bearings.

Yamaha SPACER,BEARING Part # 2XJ-25317-00-00

Part 17



[Awk08]

yep, I drill a series of 1/4" holes in every carrier I've ever been into, to allow the grease to get in there also.
the axle crudding up in the spacer is usually why it takes a big F'n hammer to get them apart.
drill the holes and allow grease in there and they usually slide right apart.



[Markblaster]

Thanks dude.



[79 bronco]

There is the grease fitting that my dad did put in my old stock carrier. He put it in for me when i was a kid back in around 1993 or 1994. lol



[Markblaster]

Got mine there also.



[jbuckster07]

Hey you know thats not how a chain works bronco????^^^^ LOL



[Markblaster]

Hey you know thats not how a chain works bronco????^^^^ LOL

Looks like he is missing a rear shock also for that super low rider style. Who needs brakes any ways just throttle it out.



[Markblaster]

Akw08

Do you do a even amount of holes around it or just drill random spots? Would it un-balance it? make vibrations?



[Awk08]

Akw08

Do you do a even amount of holes around it or just drill random spots? Would it un-balance it? make vibrations?

Even amount and spaced, draw lines with a sharpie marker to help.

Not going to make any more vibration than unbalanced tires with mud stuck some places or 6 tire plugs in that one tire



[Markblaster]

This be ok?



[Awk08]

This be ok?

I'm thinking your questioning me on this was a setup to post your cad drawing, LOL



[Markblaster]

Been work on the drawing the last 2 nights. Just wanted to be sure.

Just need to get into shed and start drilling holes now.

Oh and I will be using a 6mm drill bit as I don't have 1/4" bit.



[Awk08]

Be sure to get a file or sanding drum down inside to get rid of the burrs drilling down thru will make.
Then I sand the outside with an emory cloth strip to clean it up.



[Markblaster]

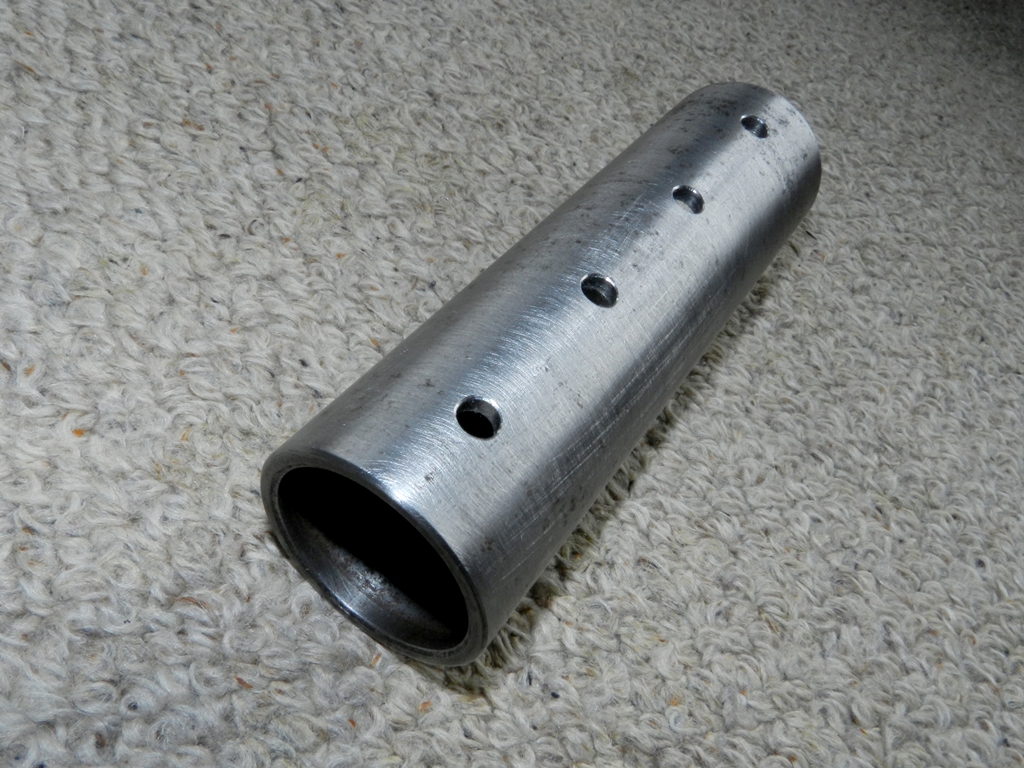

All done. I have a deburring tool and used emory cloth also.

Download DXF: HERE
Download PDF: HERE
