Red... Red... Red...

[BlasterAzores]

Just a few more pics from recent "small" upgrades.

Clutch cable red cover ... Got it from here Hydration Tube covers for Camelbaks, Hydrastorm & Hydration Packs this things fit like a charme !

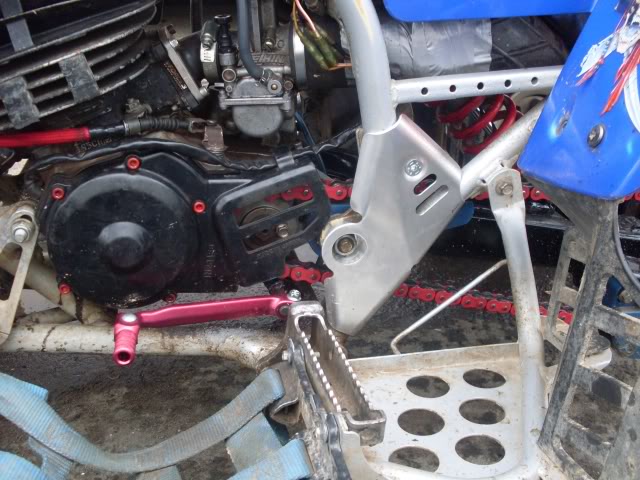

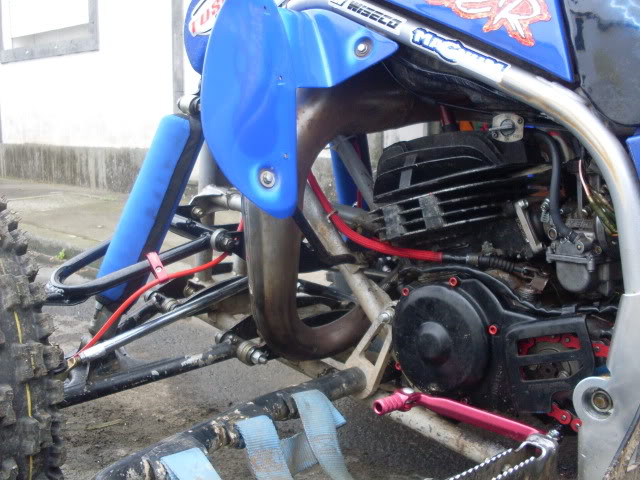

New red... red... red... shift pedal, VENHILL brake lines, cluth cable cover.

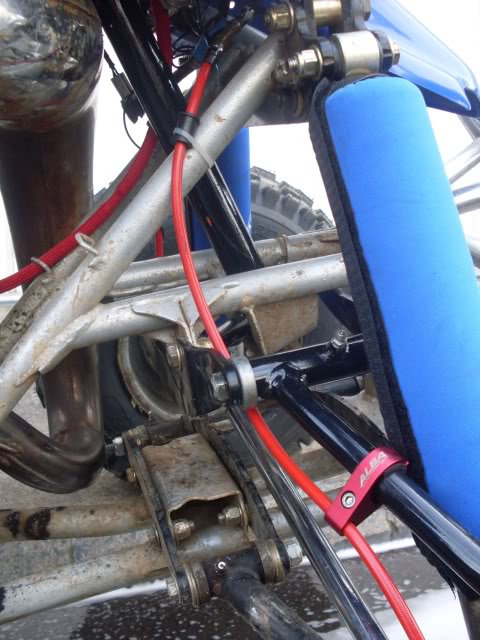

detail on RED line and RED Alba Clamp.

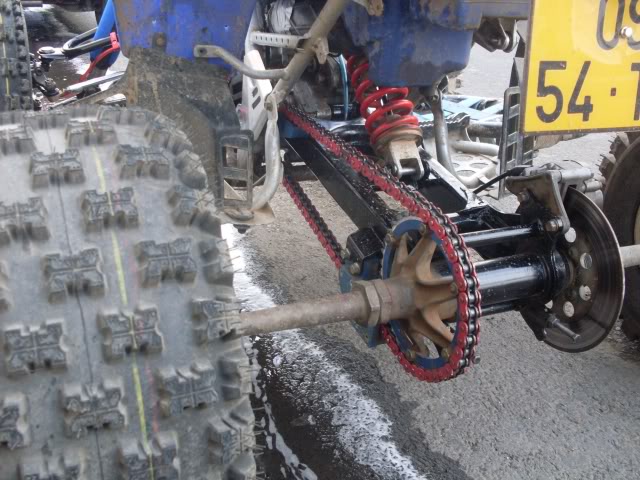

RED 114 links chain (15 front sproket / 38 Rear)

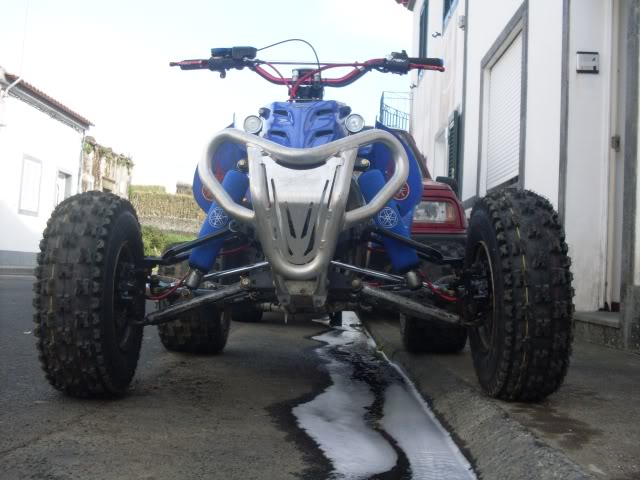

frame guard (both sides) NOT red.



[BlasterAzores]

A few more

DURO tires 21/7/10 front

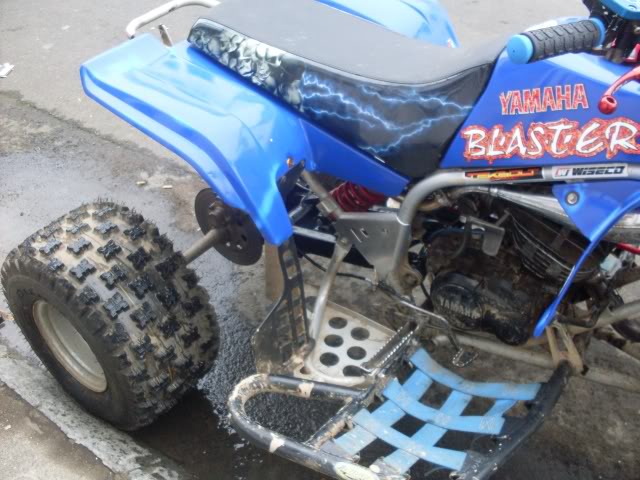

DURO Tires 18/10/R8

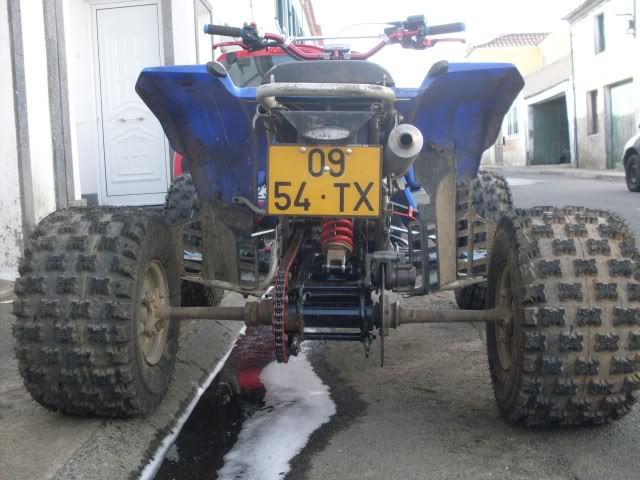

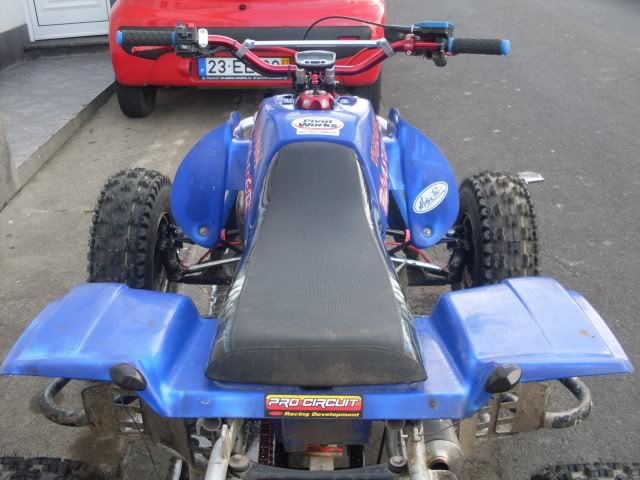

Rear blinkers

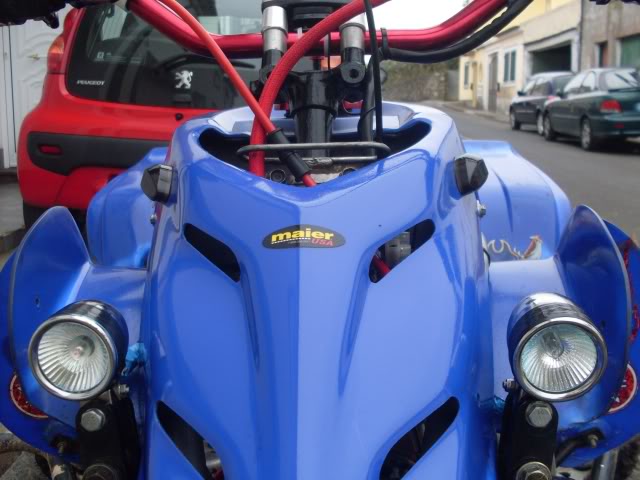

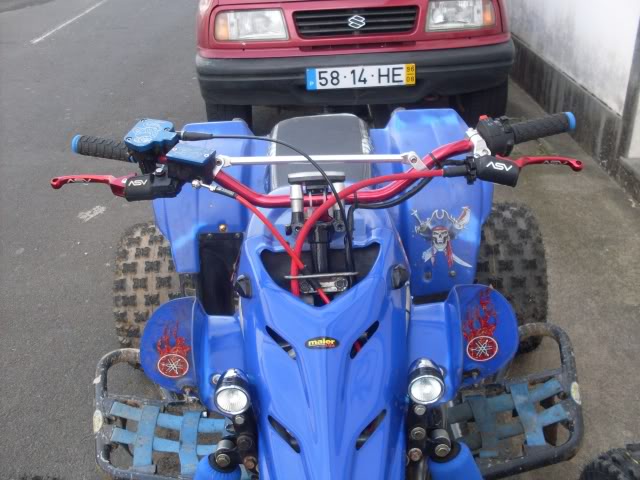

Front blinkers

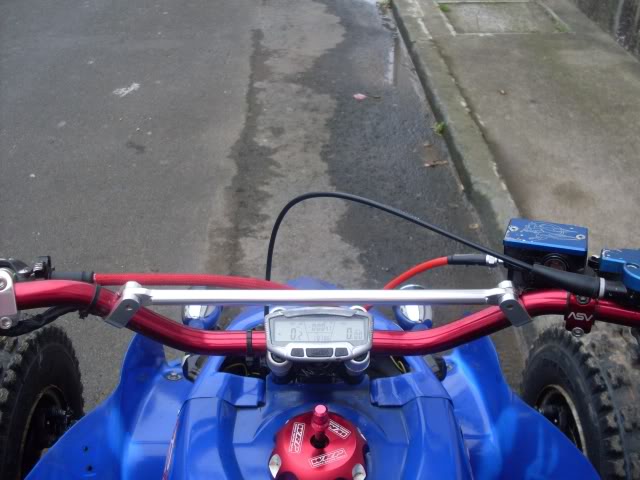

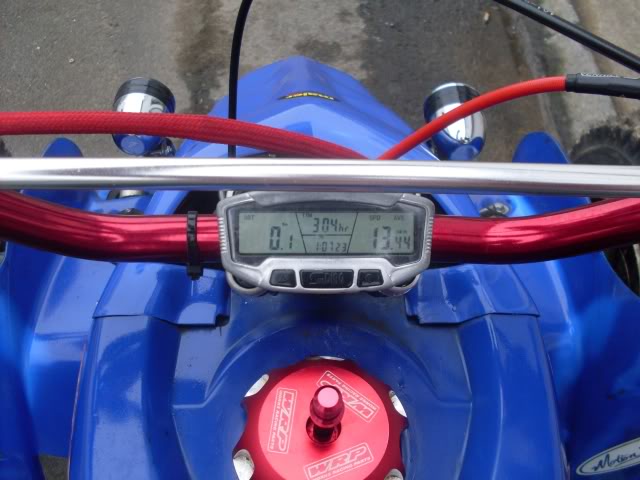

new trip counter (Cheap chinese crap... but its cheap... REAL CHEAP) http://cgi.ebay.com/LCD-Bicycle-Bik...ultDomain_0&hash=item2309761e39#ht_4484wt_905

Hope you guys enjoy the pics... coments are welcome !



[99LRDblaster]

Holy sh*t bro.........what's that thing top out at in mph/kph? Nice quad though....aggressive stance.



[88' blaster]

how much is that computer in american?



[BlasterAzores]

Holy sh*t bro.........what's that thing top out at in mph/kph? Nice quad though....aggressive stance.

80mph / 85mph

Thanks to a 240 kit, +4mm crank, timimg advance, 38 Keihin carb, V-Force reeds, 95 Octane fuel (standart in Portugal), Iridium spark plug, "racing" CDI.

Wanted a port job... but no such thing in Portugal, and its to expensive to send the engine to USA to be worked on.



[BlasterAzores]

how much is that computer in american?

Sorry i dindt notice it was in English pounds, I changed the link for USA dollars.

anyway ...$10.57 shiped now tell me, this isnt cheap.



[99LRDblaster]

80mph / 85mph

Thanks to a 240 kit, +4mm crank, timimg advance, 38 Keihin carb, V-Force reeds, 95 Octane fuel (standart in Portugal), Iridium spark plug, "racing" CDI.

Wanted a port job... but no such thing in Portugal, and its to expensive to send the engine to USA to be worked on.

Which 240 kit did you get? How is the riding in your part of Portugal?



[BlasterAzores]

Which 240 kit did you get? How is the riding in your part of Portugal?

Got the 240 L.A. Sleeve Kit
(just a tip for anyone ho wants to get a 240 kit... this is a pain in the ass to install, go for a Bolt on Kit like the VITOS Kit, no pain to install, and you get to keep youre Top-End as spare part.) http://www.blasterforum.com/engine-13/big-doubts-240cc-kit-22423/index2.html

Riding here in the Islands (Portugal-Azores) is a DREAM, lots, and lots of dirt roads, from long strechs to winding curves, you get it all, smooth surfaces, rocky sections, bumpy roads, always dirt, no sand or snow... and BEST OF ALL quads are street legal. I:I



[blasterbuddy200]

damn, i wish we were street legal then we would have cars replaced with quads ha



[88' blaster]

how do you keep the wheel sensor from falling off?



[BlasterAzores]

how do you keep the wheel sensor from falling off?

I just used metal bond, or you can also use some epoxi.



[bagds101]

looks awesome. how did you hook the blinkers up? you can make any quad street legal here in arizona, but you need registration, a headlight, a tail light, brakelight, and a horn.



[BlasterAzores]

looks awesome. how did you hook the blinkers up? you can make any quad street legal here in arizona, but you need registration, a headlight, a tail light, brakelight, and a horn.

I installed the led relay under the hood (above the cdi box), connected a 12v wire to the relay, passed 2 new wires from the rear blinkers to the relay in the front, the front blinkers where so close that didnt need longer wires... hooked all up, ground evreything to the frame... and of course a handlebar switch.



[bagds101]

was it a pretty straight foreward install?



[BlasterGuy87]

Nice,Looks great!



[BlasterAzores]

was it a pretty straight foreward install?

if you know the basics about electricity.

i´m electronics technician so its pretty easy
