Pro aliminium (Nerf/heel guard and foot peg)

[silverlight]

hey, i was looking at this more
Yamaha YFS200 Blaster 88-06 Nerf Bar w/ Heel Guard BLK :eBay Motors (item 200284613056 end time Jun-03-09 09:51:34 PDT)
but, with custom made foot peg, will i be able to set the foot brake on :O



[silverlight]

bump, anyone know if the foot brake could be easely taken on that or not possible?



[06kid]

If you are asking if you could still use the brake peddle then you should be able to but might have to make a mount on the nerfs if they do not come with one but it most likely will have a mount just like the stock pegs do hope that helps



[tihs]

I have these on mine, just got them
they are made for the newer Blaster 03+ not 88-06 as they said.

DG bought them and they not going to make them anymore.


you can make them fit the older ones.
there was 2 problems that i had with them.
1 - the rear brakes would not mount up because the stub was in the wrong spot. i cut it off and welded to where it should be.
2 - not sure if it was my exhaust but it would not fit over the front frame rails.
so i cut the nerfs a little and welded a mount point to the frame and connect the nerfs to this. this would also let me take them off when i wanted.

i will try to snap some pics tonight.



[tihs]

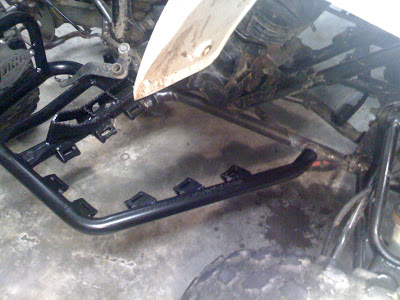

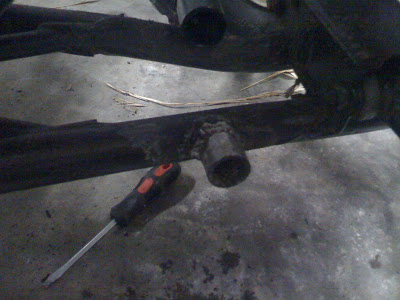

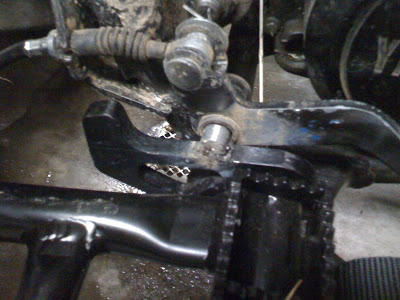

here are some pictures..



[silverlight]

oh, well, i got an 2003 blaster, the heel guard and foot peg is damaged at left side, so i though on that pro aliminium stuff, but i dont got the stuff to make it fit so i will forget that idea, thanks for getting this up, helped me alot.

*EDIT* wait did you mean making them fit only for older once, do they fit nice on a 03? and is it just me or is the foot peg like bent over and not 90 dagrees



[tihs]

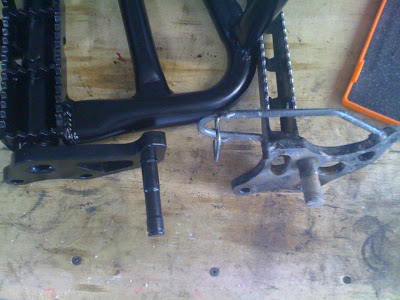

Here is a picture of my foot peg and the foot peg of the one on the nerf bar.
if your brake connects in the back you will be ok..



[silverlight]

i dont have my blaster here atm, it stands at my brother in garage, so i cant look at it right now, but i got 03 model, i got the newer brake type, thats not managed by wire(dunno the word in english)

well this is the best example of my brake i could find on internet atm
http://store.eliteatv.com/images/view.aspx?imageUrl=/images/products/detail/102_2039.JPG
and big picture of mine from the right side
http://img178.imageshack.us/img178/8658/imageshackold.jpg



[tihs]

Yea, you should be good then. i called DG the other day and they said they are for 03 + Blasters.

it looks like it will bolt up nicely.



[silverlight]

ok i think i will go for it than, thanks for all the help
