Oil Pump Cover

Markblaster

Custom blaster
Dec 6, 2015
2,311
760
175

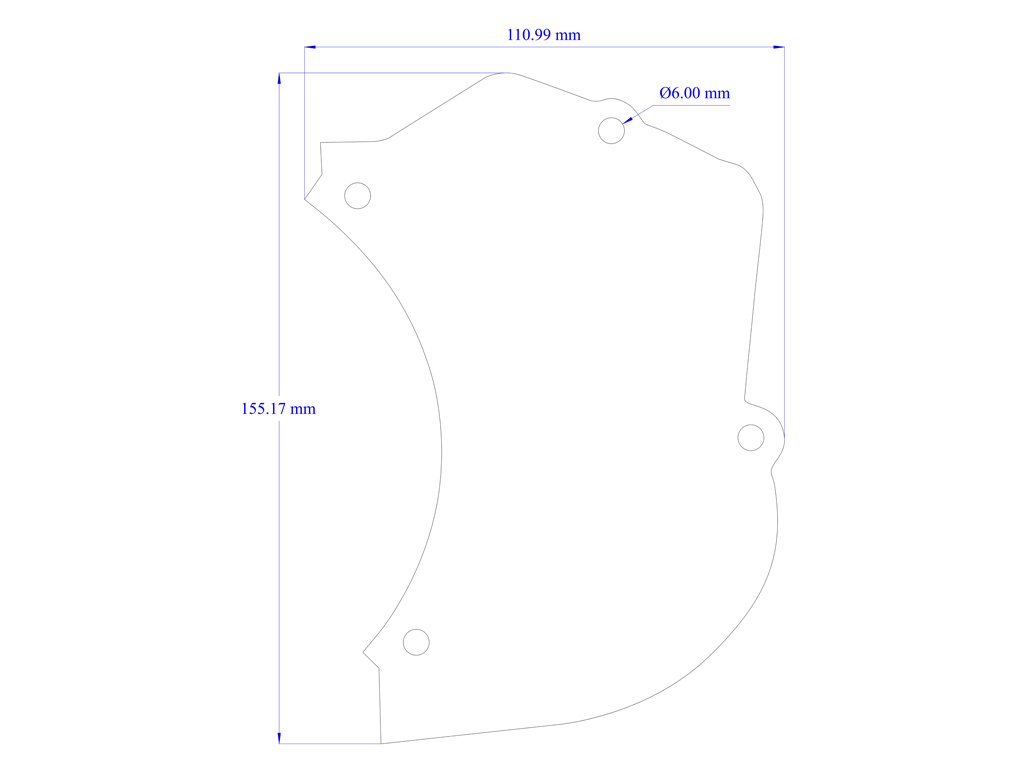

Hi all. Drawn up the oil pump cover. You will need four m6 x 1 bolts 16mm long if you make the plate out of 3mm thick aluminum.

PDF Download: http://www.4shared.com/office/vPxJPXc-ce/Blaster_Oil_Pump_Cover.html

DXF Download: http://www.4shared.com/file/89TCqhXxce/Blaster_Oil_Pump_Cover.html



Might help if some one wants to make there own.

Finished product



Last edited:
Man that's awesome wish I could of did mine like that I did mine out of Plexiglass.


Attachments

  • IMG_20170316_182833.jpg
    351.6 KB · Views: 392
