Cooling custom air scoops

[ruairiyblaster]

Anyone got a template of how they made these? Or how to make them?



[DUALSTROKE]

Heres some hand made ones.Sorry best pic I have right now.They usually use the top fender bracket and bolt it directly to the scoop.Then use a small bracket from the a-arm nut/bolt.The bracket is just a piece of 1/2-3/4 inch wide metal that can be bent with a few 30 degree bends.The scoop pictured is just a square piece of sheet metal bent up 1 inch on both sides at a 90degree bend.Start with cardboard if you are not sure and mock a set up first.Then get some aluminum,diamond plate,sheet metal,etc and knock it out.



[Larry's Shee]

Try search term "CFM scoop" was a thread about them just today. Real good pic of scoops and brackets



[Awk08]

here ya go, disreqaurd my upper shock mount location,
I was going by my old faded memory told me it saw on here, LOL
it is the back of the upper a-arm bolt the bracket mounts to.

http://www.blasterforum.com/body-15/cfm-scoop-shroud-install-53057/



[mud runner]

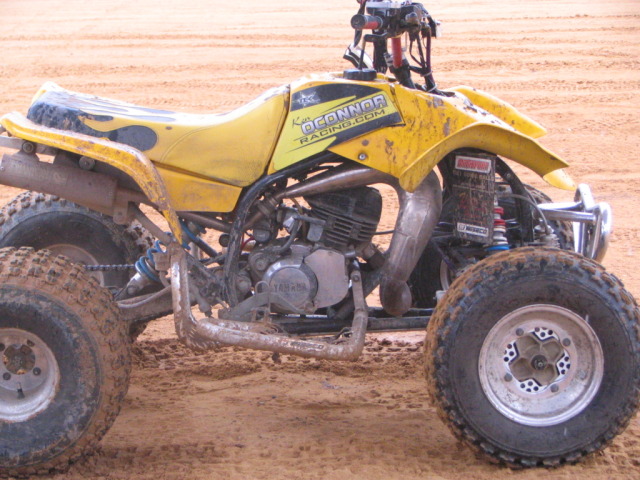

i made some out of flashing and made it alot closer to the motor than those on that yellow bike



[Blasterr]

Whose yellow blaster? Looks bad



[ruairiyblaster]

Thanks guys ill make a set and get detailed pics and measurements for future use



[Awk08]

Whose yellow blaster? Looks bad

one of dualstrokes collection
thats the bike he brings here, so his white bike doesn't get ate up by the mountain !!

Thanks guys ill make a set and get detailed pics and measurements for future use

that will make a good DIY
